51 42 000 Removing and installing left or right rear door trim panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Version with roller sun blind:

Release screws (1).

For tightening torque refer to 51 42 1AZ in 51 42 REAR DOOR TRIM PANEL WITH ARMRESTS .

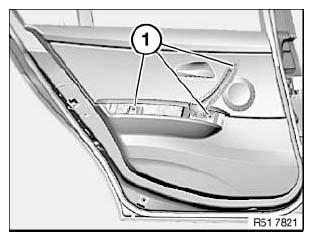

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start by unclipping door trim panel (2) at bottom.

Unclip clips (1) for door trim panel (2) with special tool 00 9 317.

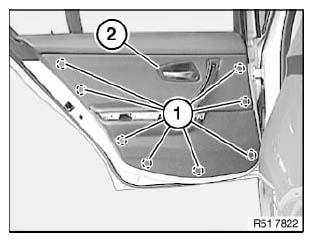

Fig 2: Identifying Door Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully unclip door trim panel (1) at top from retainers (2) and remove.

Disconnect plug on power window switch.

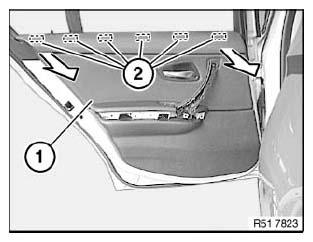

Fig 3: Identifying Door Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 4: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure clips are installed in correct position.

Clips (1) are white.

Clip (2) is brown and shorter than clips (1).

If necessary, replace faulty clips.

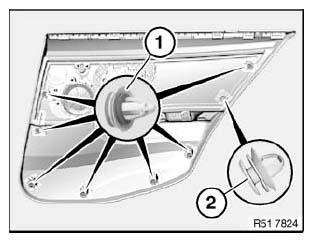

Fig 5: Identifying Shorter White Clips And Longer Brown Clip Installation Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:
