51 47 000 Removing and installing/replacing front (inside) left or right entrance cover strip

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Do not raise entrance cover strip (1) over entire length simultaneously.

Using special tool 00 9 317, unclip entrance cover strip (1) from clips (2) starting at rear and proceeding forwards.

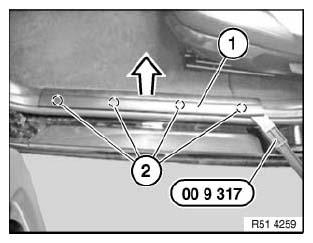

Fig 1: Identifying Special Tool (00 9 317), Entrance Cover Strip And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, lever clips (1) out of floor pan (2) and attach to entrance cover strip.

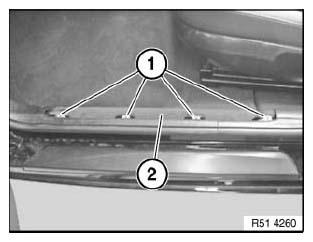

Fig 2: Identifying Clips And Floor Pan

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1) on entrance cover strip (2).

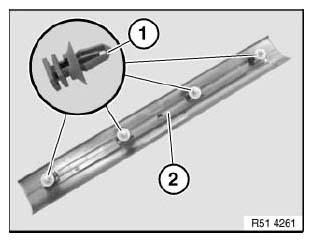

Fig 3: Identifying Clips And Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
