51 41 000 Removing and installing left or right front door trim panel

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Driver's side only:

Passenger side only:

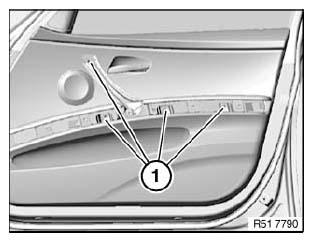

Driver's side only:

Release screws (1).

For tightening torque refer to 51 41 1AZ in 51 41 FRONT DOOR TRIM PANEL WITH ARMRESTS .

Fig 1: Identifying Screws (Driver's Side Only)

Courtesy of BMW OF NORTH AMERICA, INC.

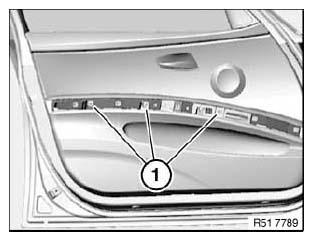

Passenger side only:

Release screws (1).

For tightening torque refer to 51 41 1AZ in 51 41 FRONT DOOR TRIM PANEL WITH ARMRESTS .

Fig 2: Identifying Screws (Passenger Side Only)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Start by unclipping door trim panel (2) at bottom.

Unclip clips (1) for door trim panel (2) with special tool 00 9 317.

Fig 3: Identifying Door Trim Panel And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

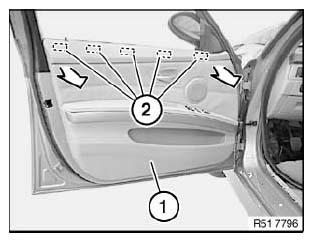

Carefully unclip door trim panel (1) at top from retainers (2).

Fig 4: Identifying Door Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook Bowden cable (1) from door lock (2).

Disconnect all plug connections and remove door trim panel.

Fig 5: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips.

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

US/CND version:

Crashpad (3) must be correctly fitted.

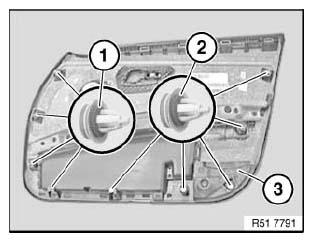

Fig 6: Identifying Grey Clip, White Clip And Crashpad

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:
