51 41 017 Removing and installing/replacing cover on front door handle (passenger side)

Special tools required:

• 00 9 317

Necessary preliminary tasks:

• Remove Decorative Strip  from front door (passenger side)

Lever out cover (1) with special tool 00 9 317.

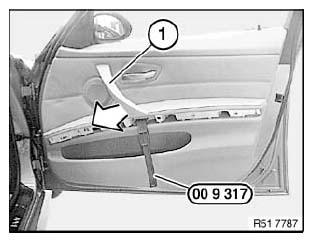

Fig 1: Identifying Cover And Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) of cover (2) must not be damaged.

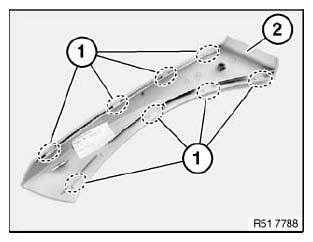

Fig 2: Identifying Catches And Cover

Courtesy of BMW OF NORTH AMERICA, INC.
