51 34 160 Removing and installing/replacing housing cover on inner left or right door window frame

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Version with roller sun blind:

Version with roller sun blind:

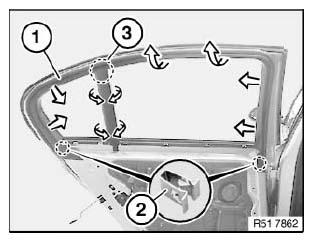

Pull off hooks (2) in outwards direction.

Detach cover (1) sideways from clips (3) and unclip in inwards direction or lever out and remove.

Fig 1: Identifying Hooks, Cover And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, release screw (1) on hook (2).

Remove hook (2) in direction of arrow from cover (4).

Fig 2: Identifying Hook, Screw And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Version without roller sun blind:

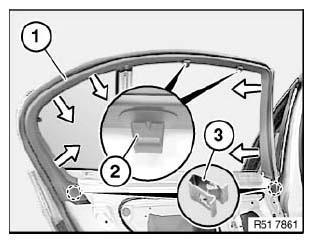

Lever out cover (1) at clips (2).

Unclip cover (1) in direction of arrow or lever out and remove.

NOTE: Do not tear off cover (1) in area (3).

Fig 3: Identifying Cover, Clips And Cover Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of cover (1) must not be damaged:

2 All-round guide
3 Connection point

Fig 4: Identifying Connection Point, Cover And All-Round Guide
Courtesy of BMW OF NORTH AMERICA, INC.
