51 21 225 Removing and installing or replacing inside door opener in left or right front door

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Unhook Bowden cable for release lever:

Installation:

For fitting, press release lever (1) fully onto door trim panel.

Fig 1: Identifying Release Lever, Lock And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: On initial installation there is no screw in area (A).

If necessary, release screw in area (A).

Release catches (1) and remove door opener (2).

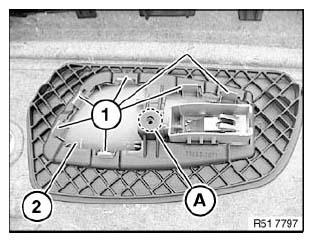

Fig 2: Identifying Mounting Screw Area, Catches And Door Opener (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Repair screw must be inserted in area (A) when door opener is installed.

Installation:

Catches (1) on door opener (2) must not be damaged.

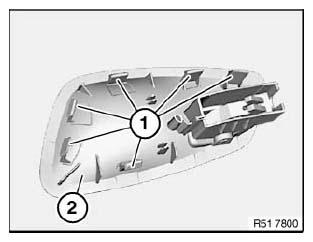

Fig 3: Identifying Catches And Door Opener (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
