11 12 000 Removing and installing, sealing cylinder head cover (M52TU / M54 / M56)

Remove engine cover.

Remove ignition coils. Refer to 12 13 511 REPLACING IGNITION COILS (M54) .

Remove wiring harness of ignition coils from cylinder head cover and place to one side.

NOTE: Illustration on M54 engine.

Press lock.

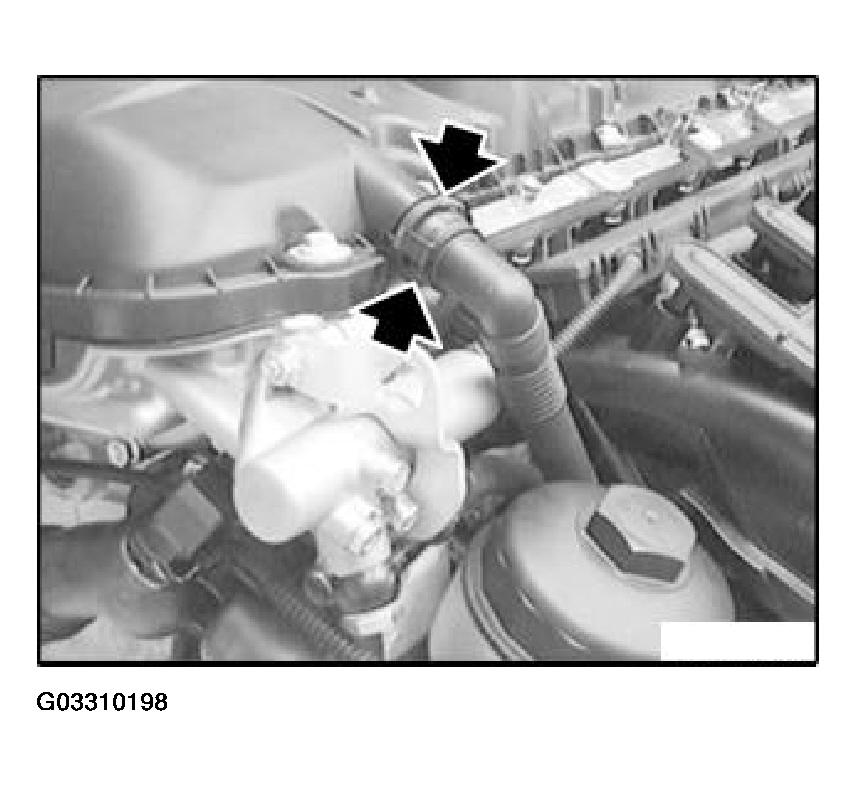

Fig 1: Pulling Off Hose For Engine Breather

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off the hose for the engine breather.

Remove grounding straps (1).

Fig 2: Removing Grounding Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover.

Installation:

Remove sealing debris from sealing faces of cylinder head and cylinder head cover.

Fig 3: Removing Sealing Debris From Sealing Faces

Courtesy of BMW OF NORTH AMERICA, INC.

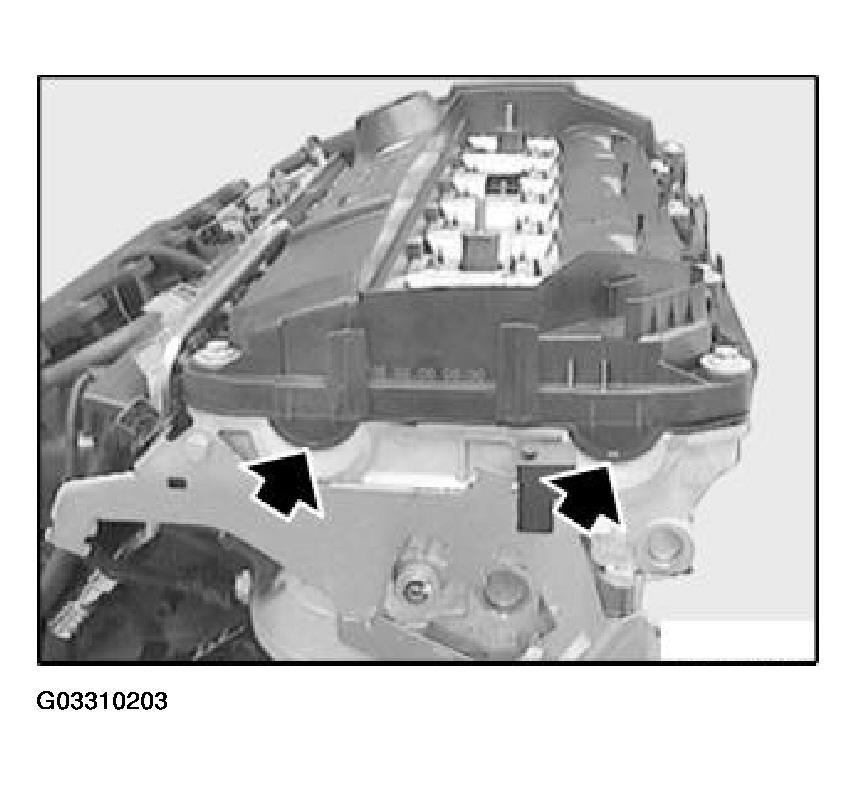

Apply a sealing bead of Drei Bond 1209 (refer to BMW Parts Service) on left and right sides at transition between cylinder head and VANOS adjustment unit.

Installation:

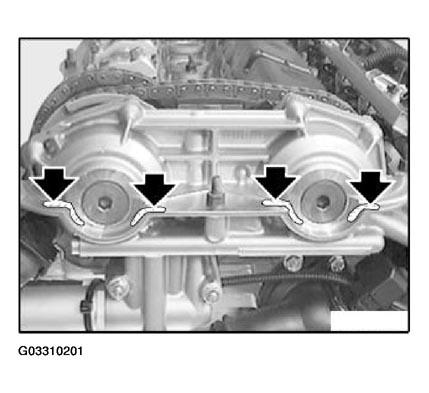

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at VANOS adjustment unit.

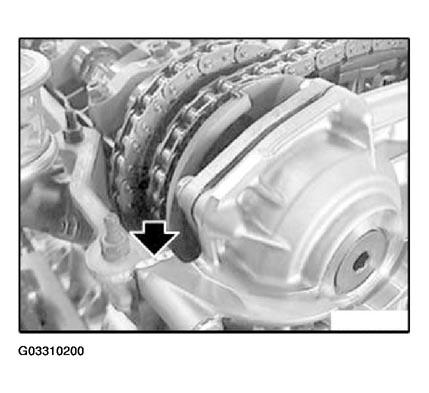

Fig 4: Identifying VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration with engine removed.

Installation:

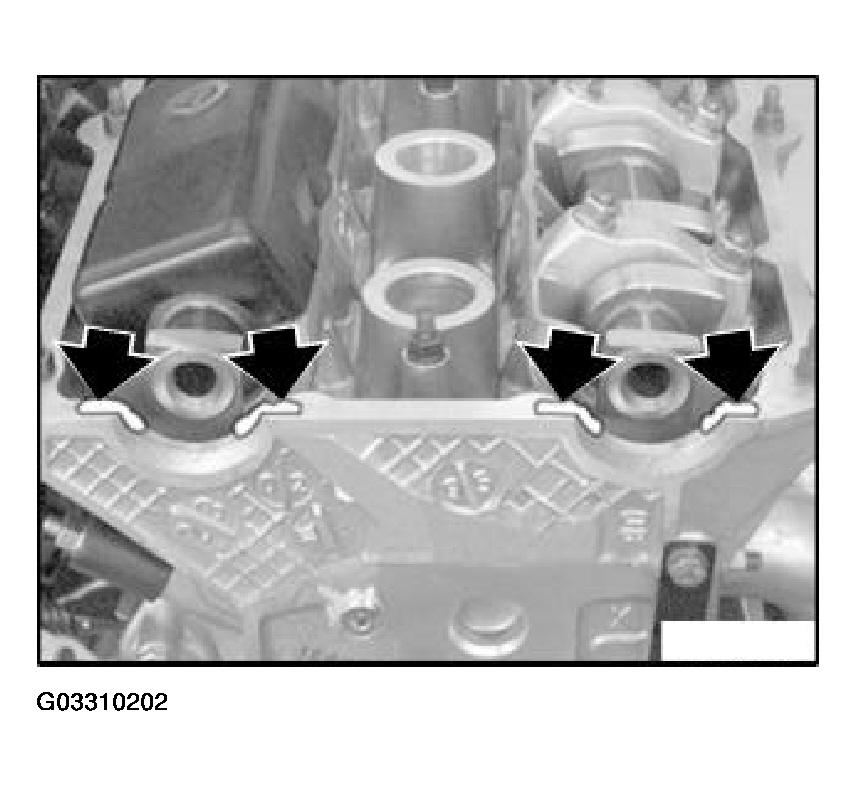

Apply a thin and even sealing bead of Drei Bond 1209 (refer to BMW Parts Service) at transition to half-moon sections at rear of cylinder head.

Fig 5: Applying Drei Bond

Courtesy of BMW OF NORTH AMERICA, INC.

Check seals and replace if necessary.

NOTE: Illustration with engine removed.

Installation:

Make sure gasket is correctly seated on rear and front ends of cylinder head.

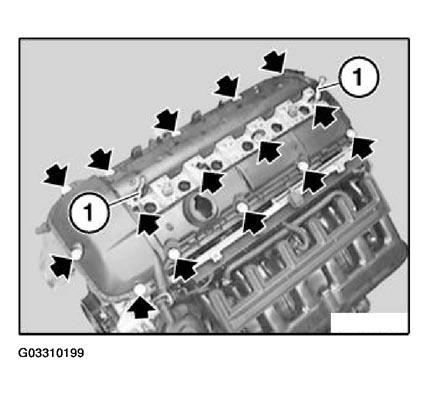

Fig 6: Installing Cover Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover bolts and align cylinder head cover.

Hand-tighten all cover bolts without preload. Tighten cap nuts crosswise from inside to outside.
