12 13 511 Replacing ignition coils

Necessary preliminary tasks:

Unlock plug retainer of ignition coil (1) and disconnect plug.

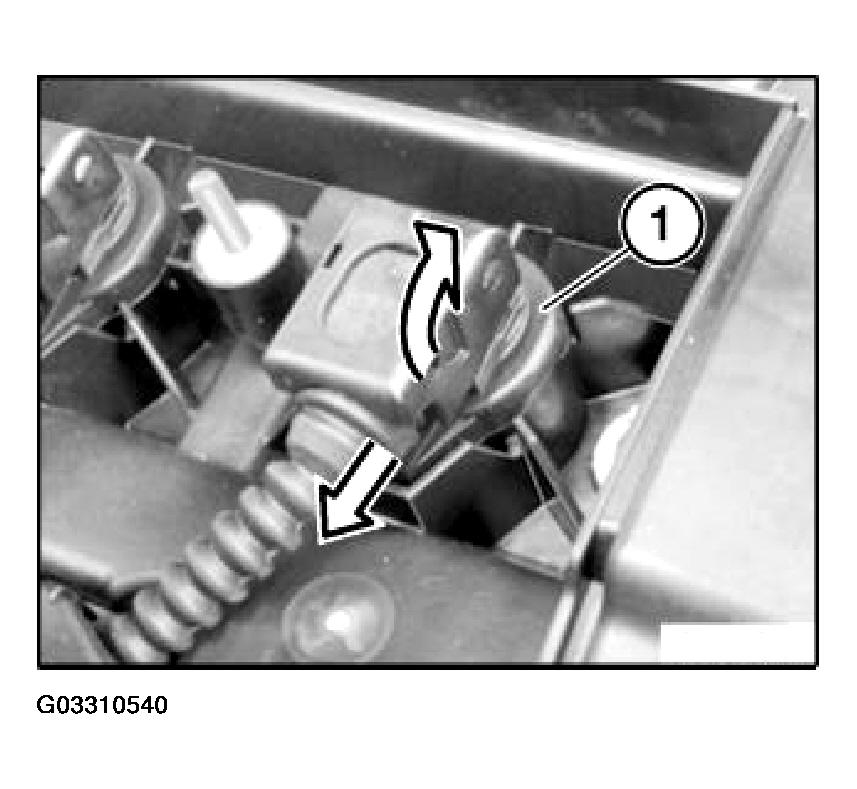

Fig 1: Unlocking Plug Retainer Of Ignition Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Pull ignition coil (1) up and out.

This procedure is applicable to all ignition coils.

Installation:

Check that rubber seal of ignition coil (1) is correctly seated.

Fig 2: Checking Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Read out fault memory of DME control unit.
Now clear the fault memory.
