11 28 010 Replacing alternator drive belt (M52 / S52 / M52TU / M54 / M56)

NOTE: If the drive belt is to be subsequently reused:

Mark direction of travel and reinstall drive belt in same direction of travel.

Necessary preliminary tasks:

Remove fan clutch with fan impeller.
Remove A/C compressor Drive Belt .
E85/E60: Remove radiator cover. See 17 11 000 REMOVING AND INSTALLING RADIATOR .
E85/E60: Remove fan cowl. See 17 11 031 REMOVING AND INSTALLING/REPLACING FAN COWL & FAN .

Remove cap from tensioning roller.

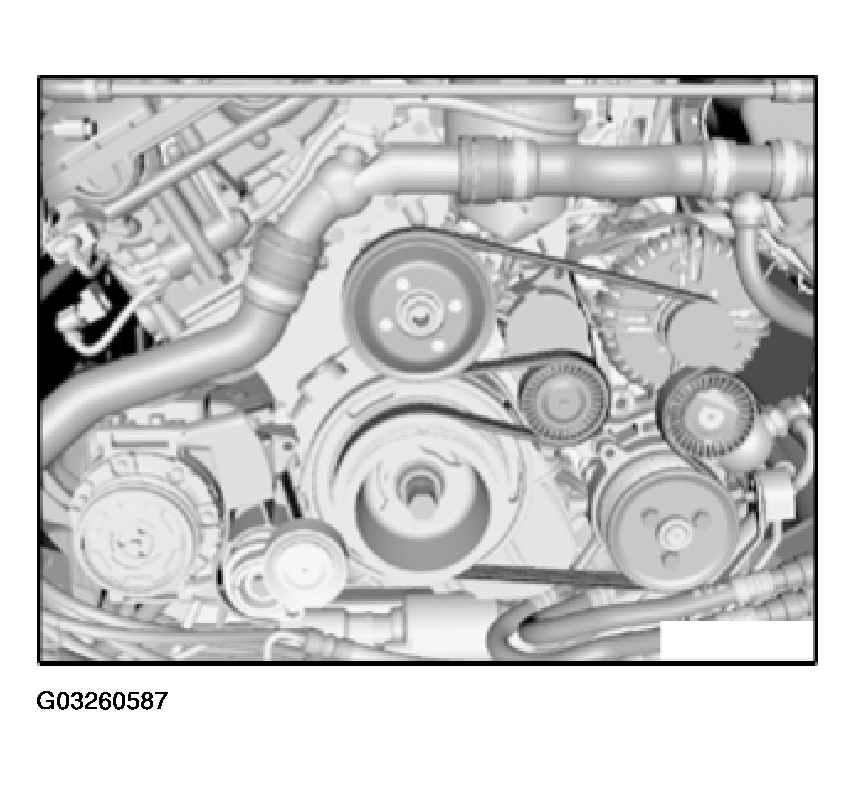

Fig 1: Removing Cap From Tensioning Roller

Courtesy of BMW OF NORTH AMERICA, INC.

Relieve tension on belt drive.

Remove drive belt.

IMPORTANT: Drive belt must be replaced if fouled with hydraulic fluid.

Installation:

Check drive belt for coolant and oil residues, replace if necessary.

Fig 2: Removing Drive Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check that belt is correctly positioned on belt pulleys.

Fig 3: Checking That Belt Is Correctly Positioned On Belt Pulleys (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Version with auxiliary tensioning roller.

Fig 4: Checking That Belt Is Correctly Positioned On Belt Pulleys (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking device of auxiliary tensioning roller must snap into groove on alternator.

Fig 5: Locating Locking Device Of Auxiliary Tensioning Roller (1 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Version on E85.

Fig 6: Locating Locking Device Of Auxiliary Tensioning Roller (2 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.

Version on E60/E65.

Fig 7: Locating Locking Device Of Auxiliary Tensioning Roller (3 Of 3)

Courtesy of BMW OF NORTH AMERICA, INC.
