64 11 321 Replacing front plate (automatic A/C)

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove heating controls. Refer to 64 11 749 REMOVING AND INSTALLING HEATER CONTROL (AUTOMATIC AIR CONDITIONING) .

Carefully unclip clips (1) at top and bottom. Remove front plate.

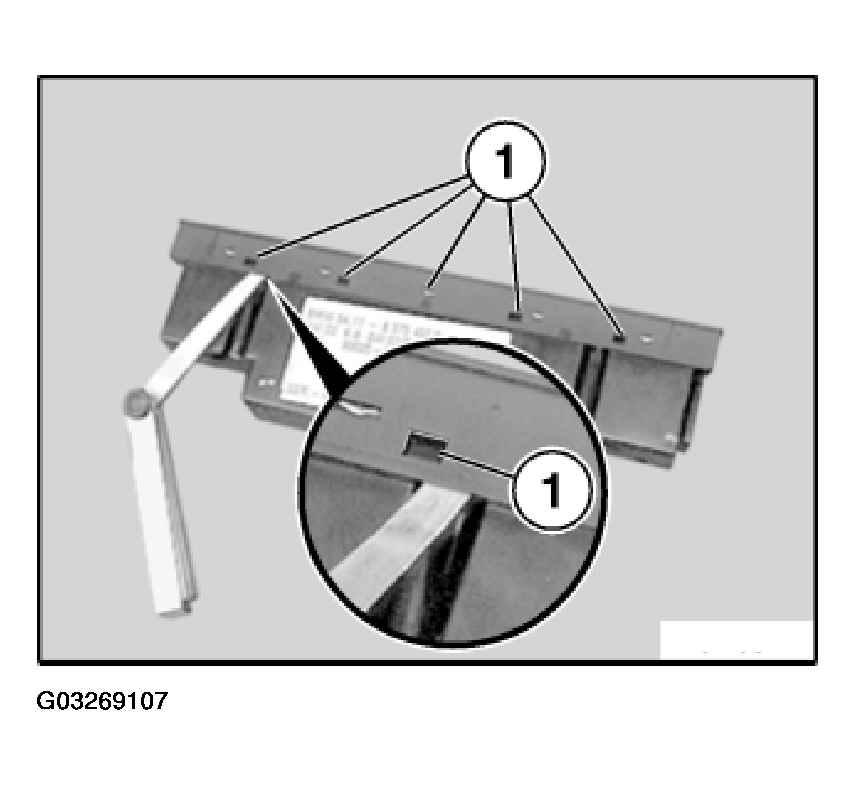

Fig 1: Locating Front Plate Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert pins (1) straight into bushes (2).
Make sure when pushing front plate together with housing that swallow-tail guides (3) engage each other.

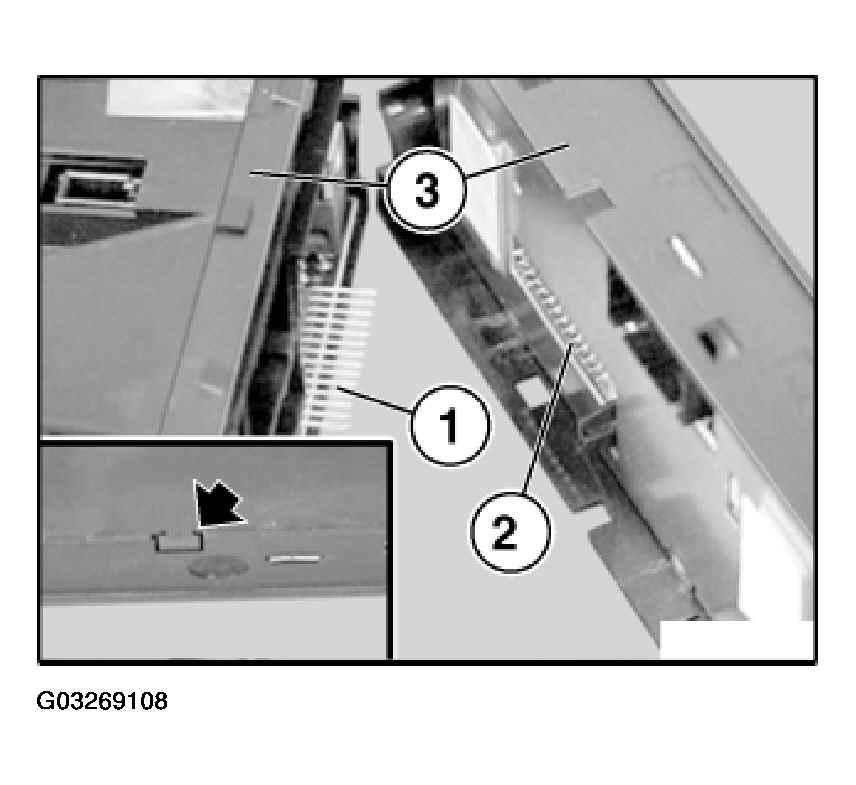

Fig 2: Identifying Pins And Bushes In Housing
Courtesy of BMW OF NORTH AMERICA, INC.
