64 11 749 Removing and installing heater control (automatic air conditioning)
WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see AIR CONDITIONING & HEATING - SPECIAL TOOLS - X5 .
Special Tools Required:
- 00 9 340

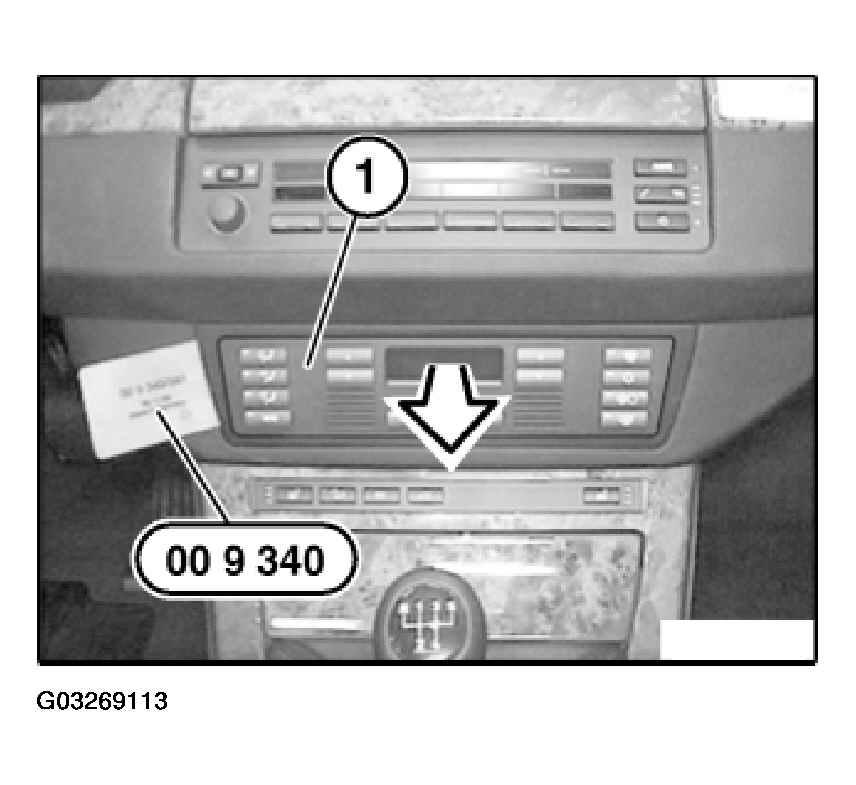

Unlock heating controls (1) with special tool 00 9 340 and pull out in direction of arrow.
Installation:
Ensure that heating controls (1) are correctly seated.
Disconnect plug connections and remove heating controls (1).
