26 11 051 Replacing Joint Disk For Propeller Shaft

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove propeller shaft. See Removing And Installing Complete Propeller Shaft .

Unfasten Screws And Remove Joint Disk.

Installation:

The screw connection may only be tightened by means of the nut.
Tightening torque, see PROPELLER SHAFT - TIGHTENING TORQUES .

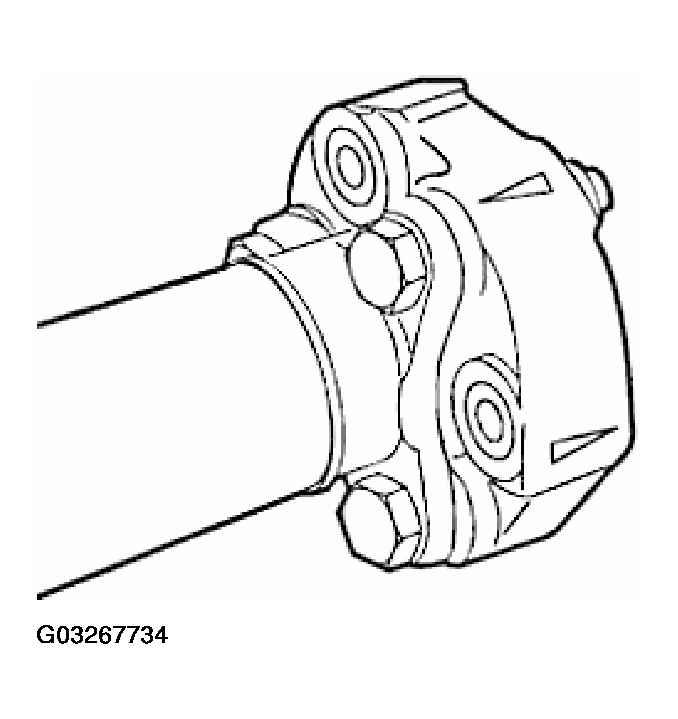

Fig 1: Removing Joint Disk Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Joint disk must be fitted in such a way that arrows point to flange arms.

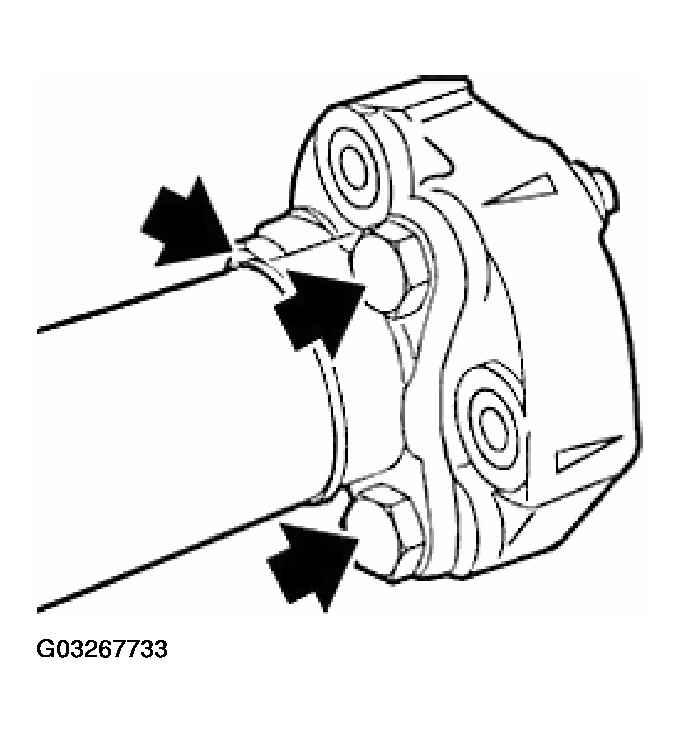

Fig 2: Installing Joint Disk

Courtesy of BMW OF NORTH AMERICA, INC.
