26 11 000 Removing And Installing Complete Propeller Shaft

WARNING: This page is about a different car, the 2006 BMW X5, 2005 BMW X5, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary Preliminary Tasks:

Remove center muffler. See REMOVING AND INSTALLING CATALYTIC CONVERTER AND CENTER MUFFLER .
Remove heat shield at rear.

Unfasten screws.

Tightening torque, see PROPELLER SHAFT - TIGHTENING TORQUES .

Installation:

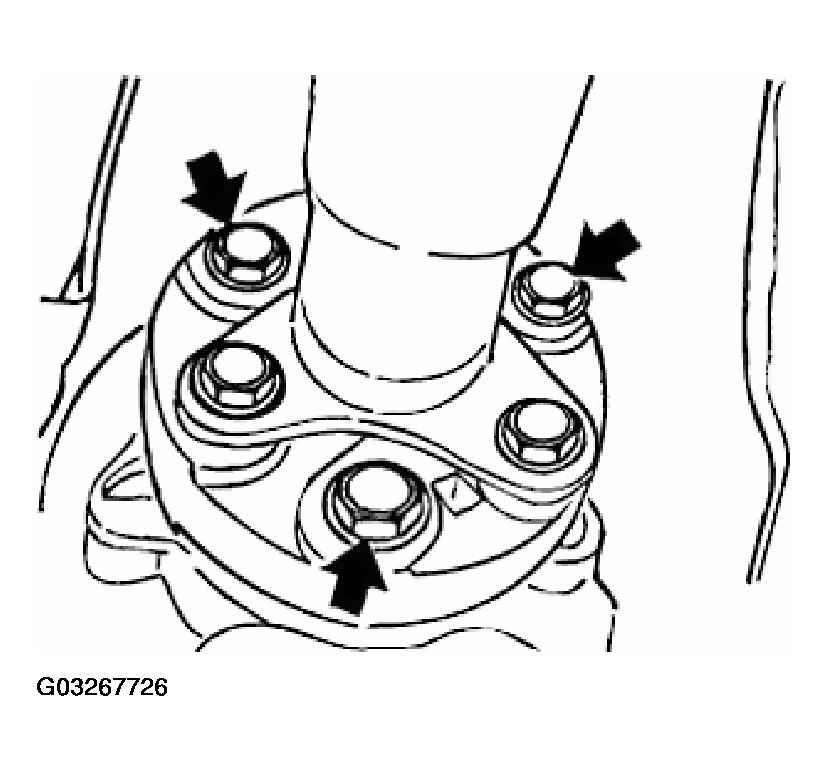

Replace self-locking nuts.

Fig 1: Installing Self-Locking Nuts

G03267726

Courtesy of BMW OF NORTH AMERICA, INC.

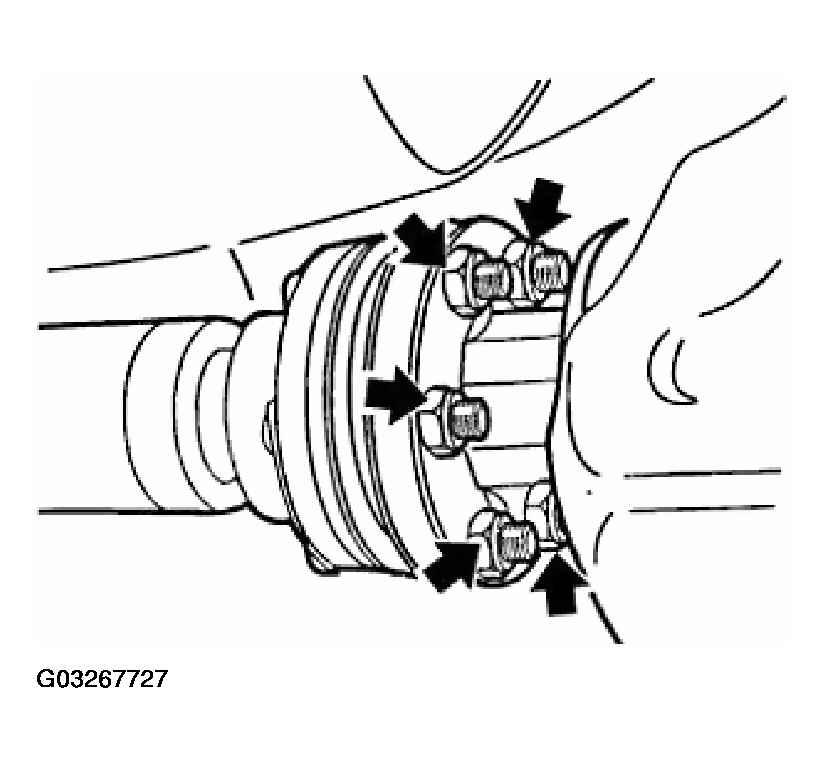

Unscrew Nuts.

Tightening torque, see PROPELLER SHAFT - TIGHTENING TORQUES .

Fig 2: Removing Propeller Shaft Nuts

G03267727

Courtesy of BMW OF NORTH AMERICA, INC.

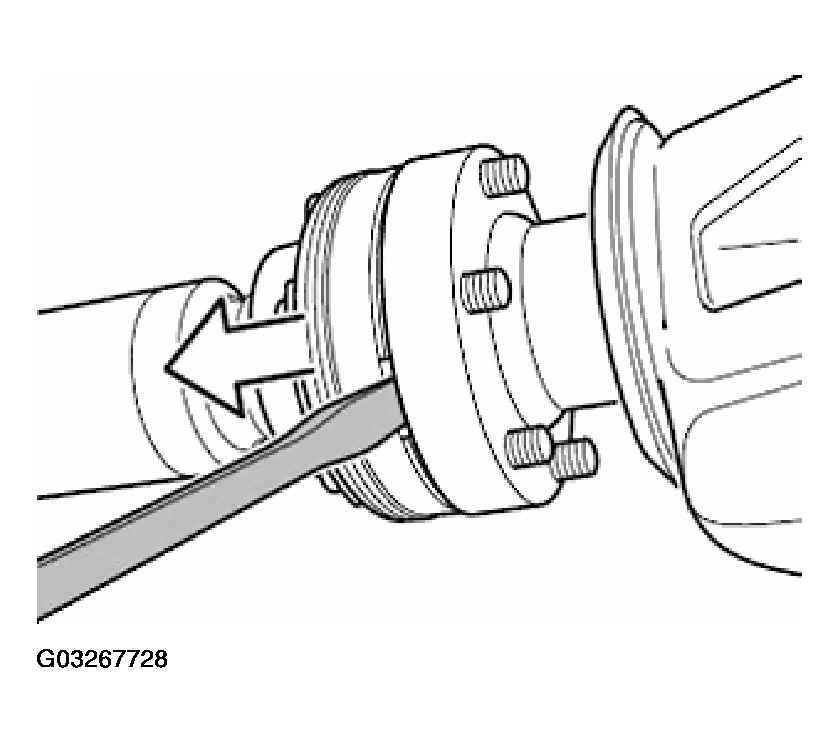

With a screwdriver, press constant-velocity joint (at disassembly grooves) off input flange.

Fig 3: Removing Propeller Shaft Input Flange

G03267728

Courtesy of BMW OF NORTH AMERICA, INC.

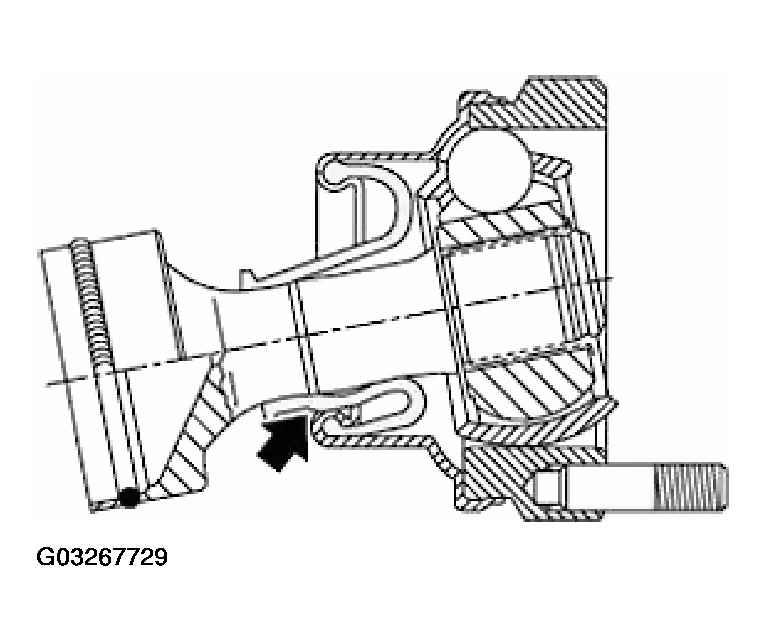

IMPORTANT: Do not let propeller shaft fall into joints. Joints and rubber sleeve on constant-velocity joint can be damaged.

Fig 4: Avoid Damage To Constant Velocity Joint In This Area

G03267729

Courtesy of BMW OF NORTH AMERICA, INC.

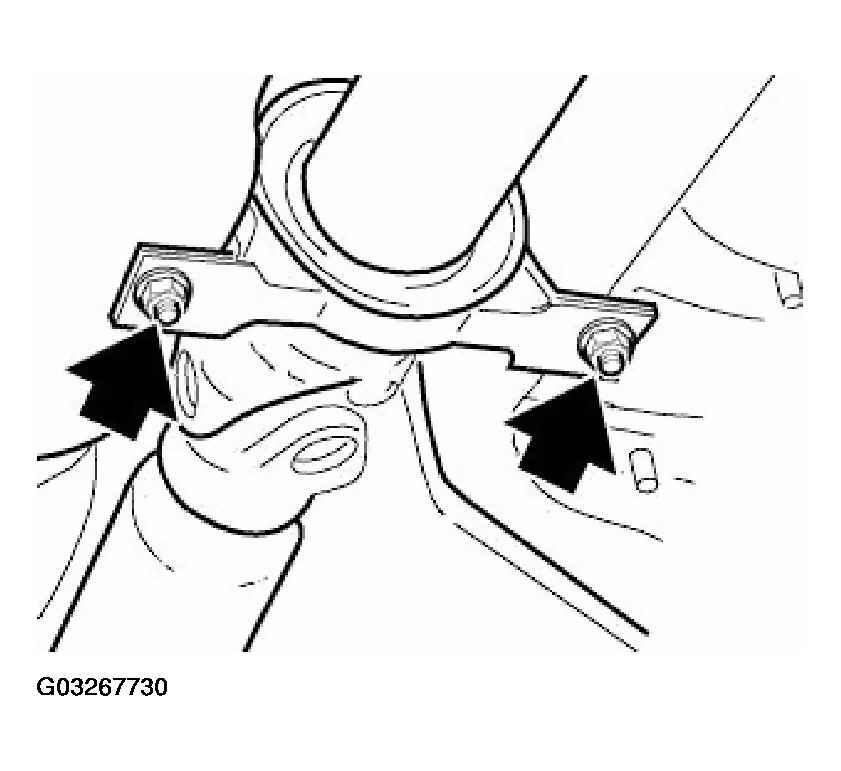

Brace propeller shaft on center mount and loosen nuts.

Tightening torque, see PROPELLER SHAFT - TIGHTENING TORQUES .

Fig 5: Removing Center Mount Nuts

G03267730

Courtesy of BMW OF NORTH AMERICA, INC.

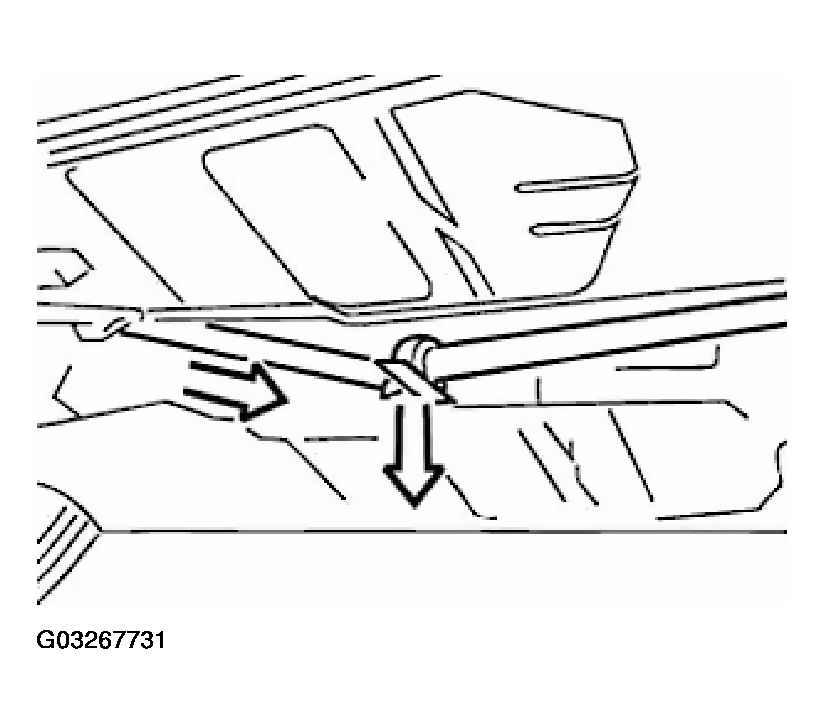

Bend propeller shaft downwards on center bearing.

Remove propeller shaft from transmission output flange and remove constant-velocity joint from final drive.

NOTE: Protect constant-velocity joint from dirt with transport cap.

Fig 6: Bending Propeller Shaft Downward On Center Bearing

G03267731

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Top Up Grease until Fill.
Grease: See OPERATING FLUIDS .

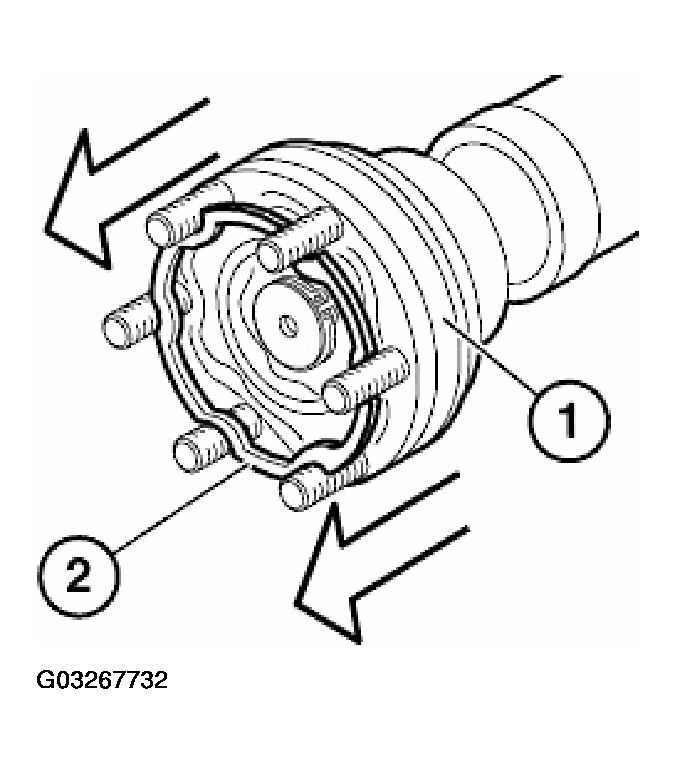

Pull Out Constant-Velocity Joint (1) Up To Stop.
Coat Sealing Faces Of Constant-Velocity Joint And Input Flange With Grease.
Replace Seal

Fig 7: Pulling Constant-Velocity Joint
