52 13 015 Removing And Installing / Replacing Controls On Left / Right Front Seat (Normal / Manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The actuating unit for front seats which was fitted during car production is different from the spare part.

Actuating unit version (A):

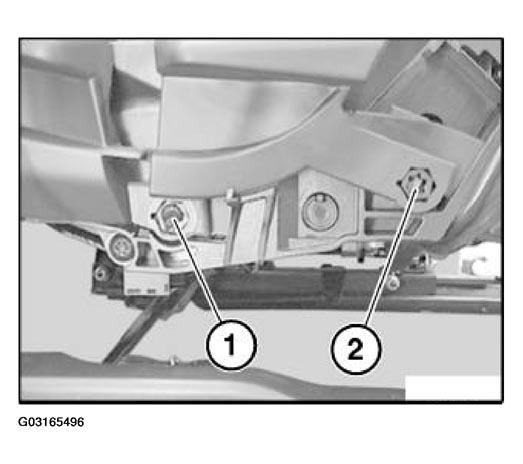

The two adjusting screws (1) and (2) for eccentric disks, have a commercially available Torx screw head which is sealed with hot-melt adhesive.

Fig 1: Locating Adjusting Screws For Eccentric Disks

Courtesy of BMW OF NORTH AMERICA, INC.

The adjusting screws (1) and (2) must not be adjusted in the workshop.
The actuating unit may only be removed from and refitted to the same front seat.

Actuating unit version (B):

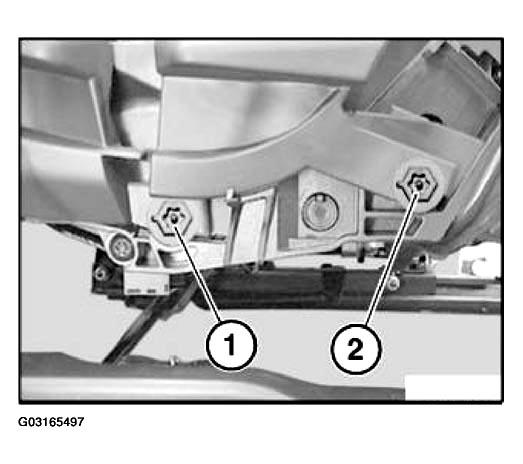

The two adjusting screws (1) and (2) for eccentric disks, are secured with tamper protection in the screw head.

Fig 2: Identifying Adjusting Screws For Eccentric Disks

Courtesy of BMW OF NORTH AMERICA, INC.

The adjusting screws (1) and (2) must not be adjusted in the workshop.
The actuating unit may only be removed from and refitted to the same front seat.

Actuating unit version (C) (spare part):

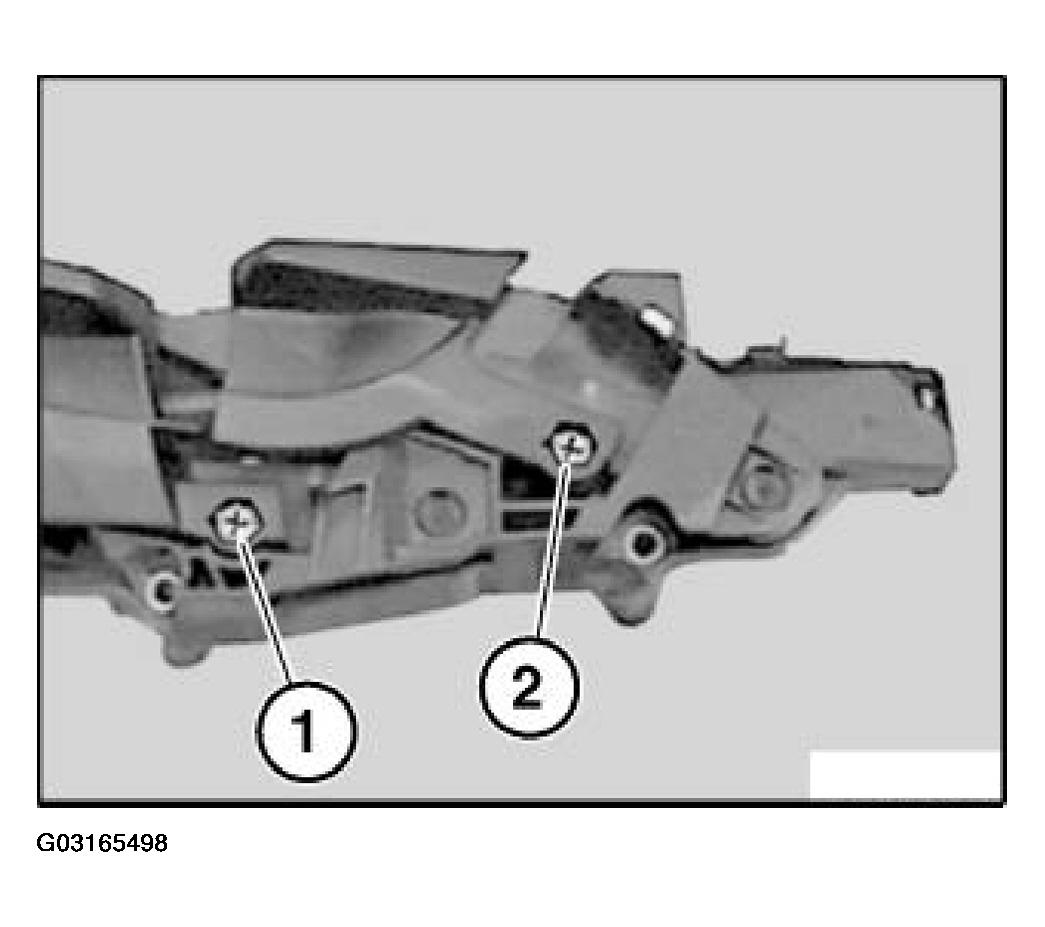

The two adjusting screws for the eccentric disk have conventional Phillips heads.

Fig 3: Locating Adjusting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

The adjusting screws (1) and (2) can be adjust workshop.
The actuating unit may be fitted to either front seat
Prior to installation, apply an acid-free grease to thread; the grease forces the eccentric disk upwards during adjustment

Removing and installing actuating unit:

Remove front seat, refer to 52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL) .

Remove outer cover on front seat, refer to 52 13 040 REMOVING AND INSTALLING / REPLACING OUTER COVER ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / MANUAL) .

Move front seat to basic position:

CAUTION: One seat runner is spring-loaded, risk of injury when unlocking.

Operate actuating lever (1) and snap seat runners (2) into position by sliding.

Fig 4: Removing Rear Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Operate actuating lever (3) and snap seat cushion (4) into position by loading.

Operate actuating lever (5) and snap seat backrest (6) into position by moving.

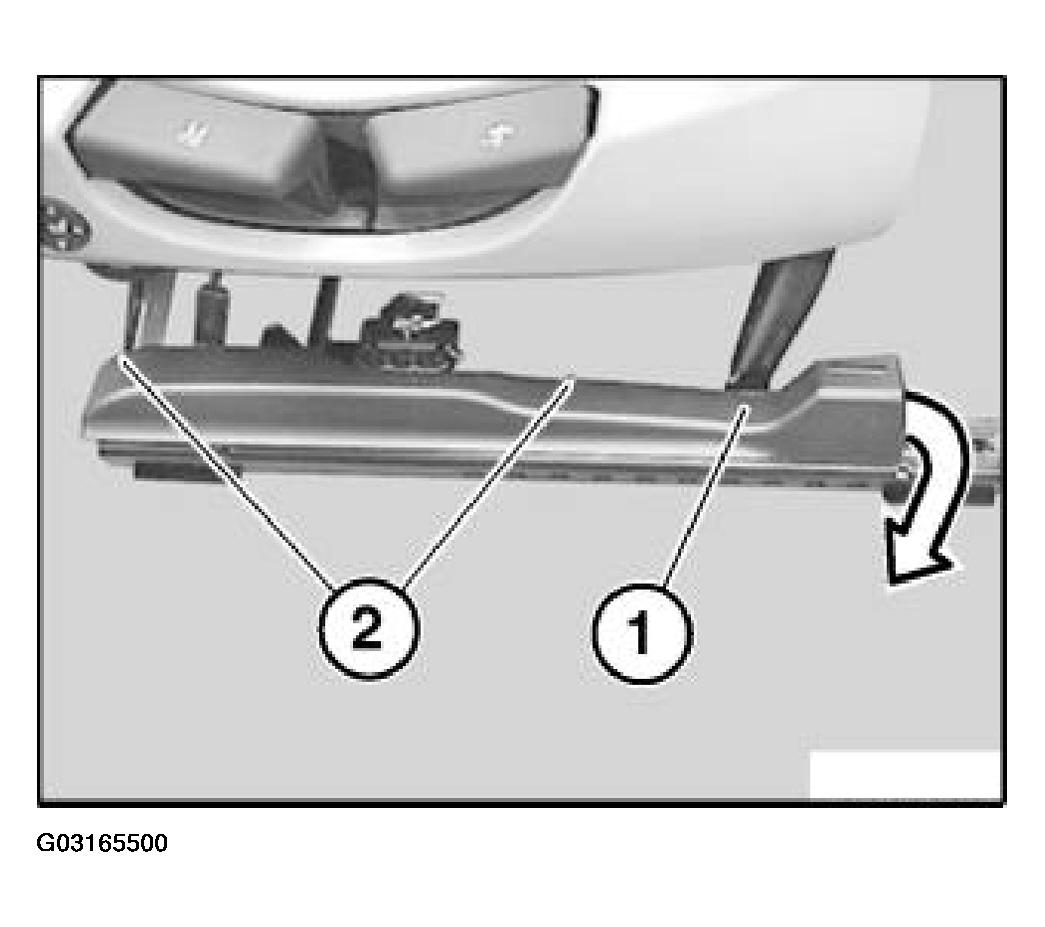

Lever out rear trim (1), unclip clips (2) and remove trim (1).

Fig 5: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

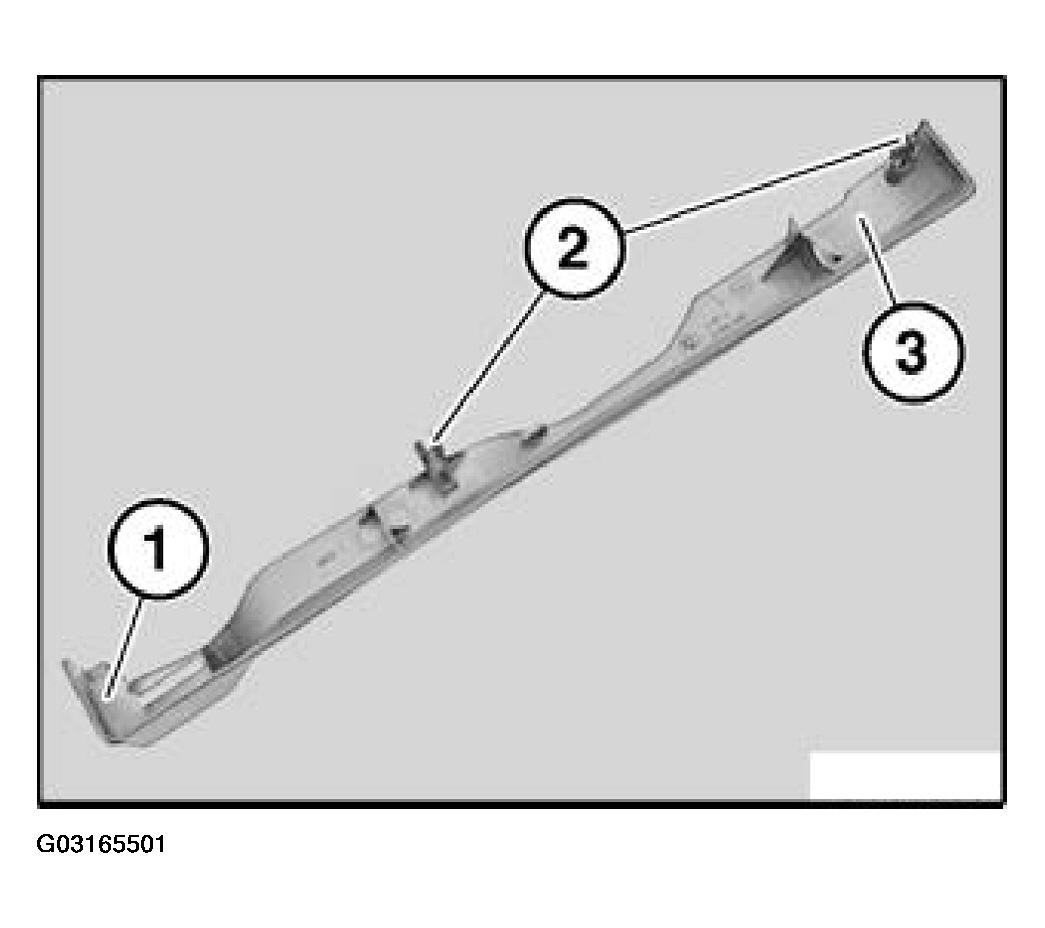

Catch (1) and clips (2) on trim (3) must not be damaged; replace if necessary.

Fig 6: Identifying Clips On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or lumbar support:

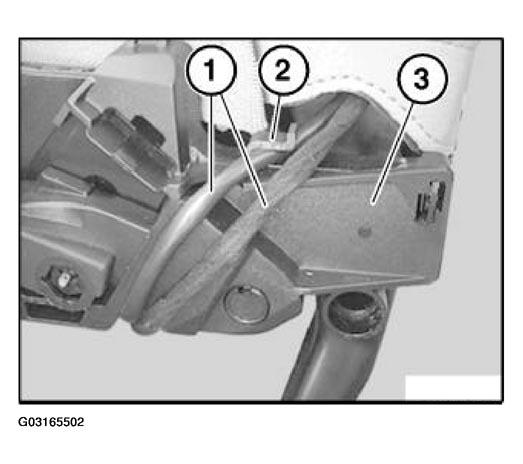

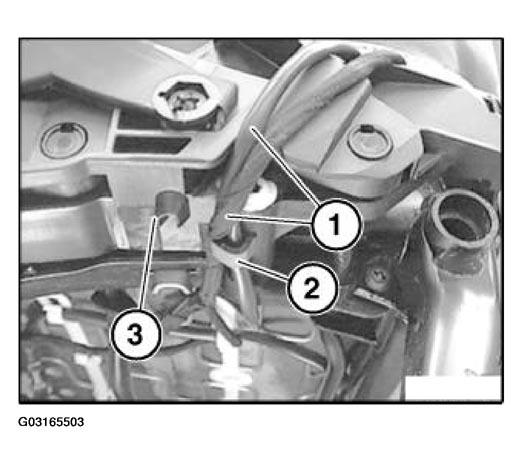

Slide cable (1) out of fixture (2) of actuating unit (3).

Fig 7: Identifying Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Version with seat heater and/or lumbar support:

Slide cable (1) out of fixture (2) of actuating unit (3).

Fig 8: Removing Cable

Courtesy of BMW OF NORTH AMERICA, INC.

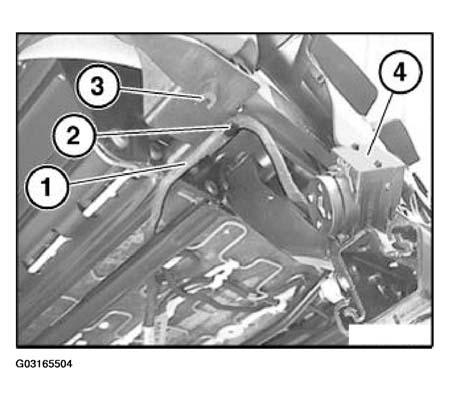

Model with lumbar supports:

If necessary, slide cable (1) out of fixture (2) of actuating unit (3).

Fig 9: Identifying Fixture Of Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect switch (4).

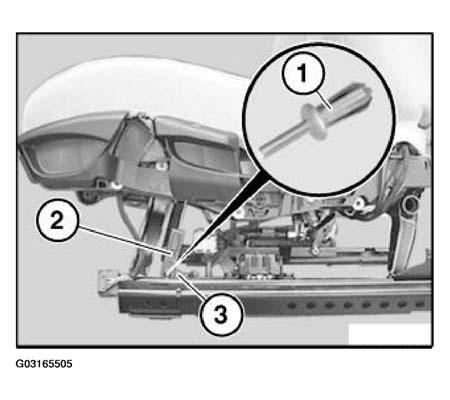

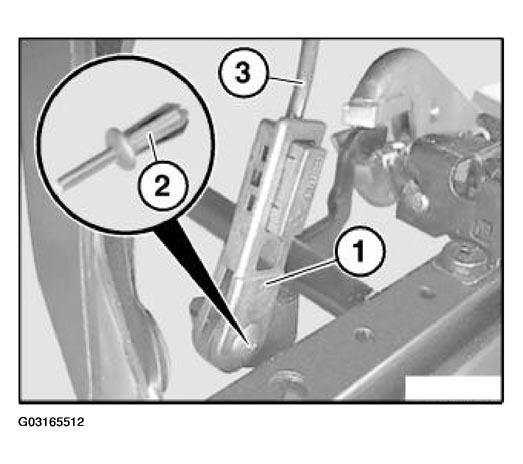

Release expansion rivet (1) and detach rocker (2) (adjustment lever) from lever (3).

Fig 10: Identifying Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn adjustment lever (2) on threaded rod (2).

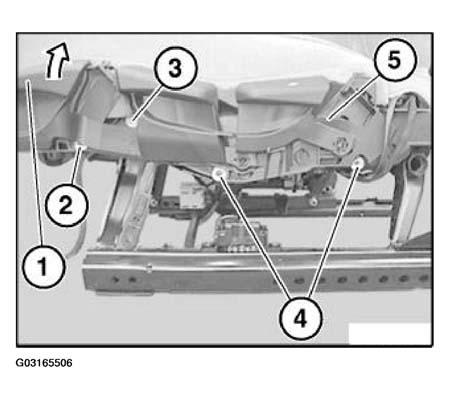

Lift actuating lever (1) and release screw (2).

Fig 11: Detaching Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3) and (4) and detach actuating unit (5).

Installation:

Screw (3) is shorter than the others.

Insert screw (3) for assembly into actuating unit (5).

Tightening torque, 10 +/- 2 Nm.

Installation:

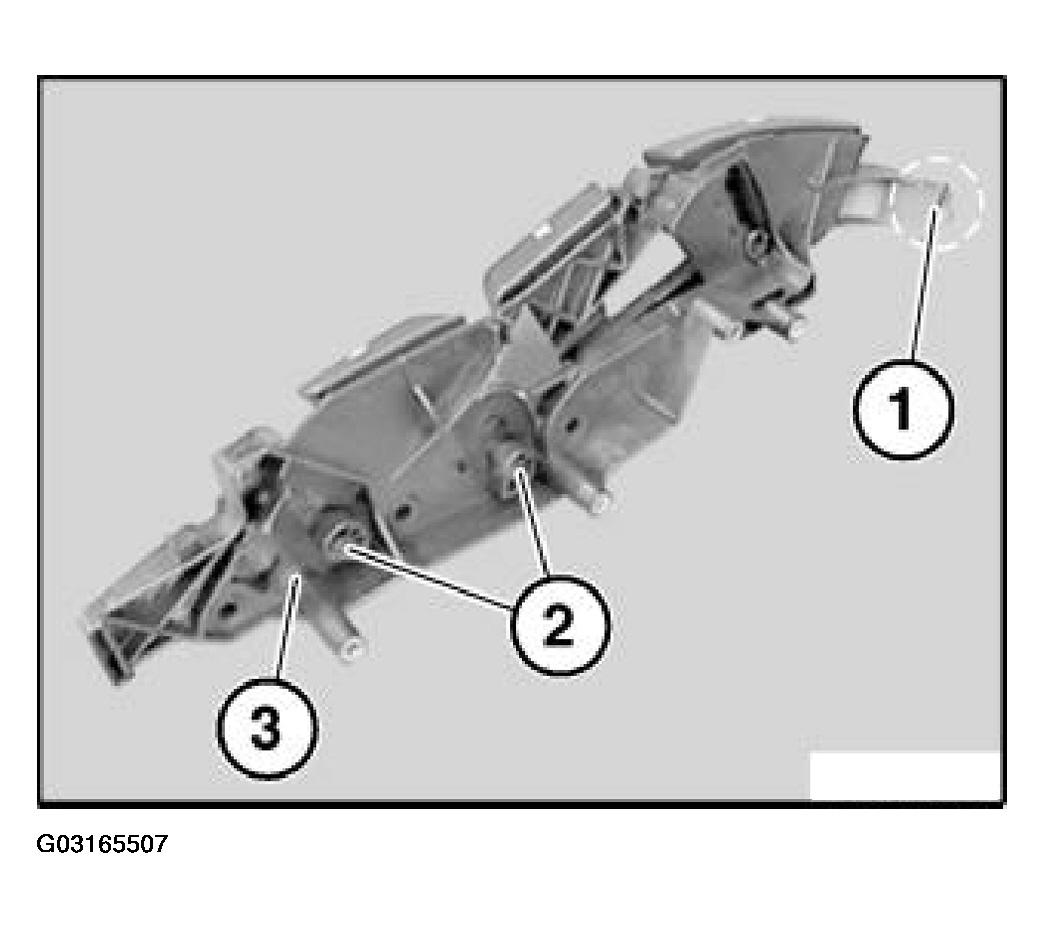

Front guide (1) and eccentric disks (2) on actuating unit (3) must not be damaged.

Fig 12: Identifying Front Guide And Eccentric Disks On Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement of actuating unit version (C) (spare part) only:

Installation:

For adjustment, coat threads (1) with acid-free grease.

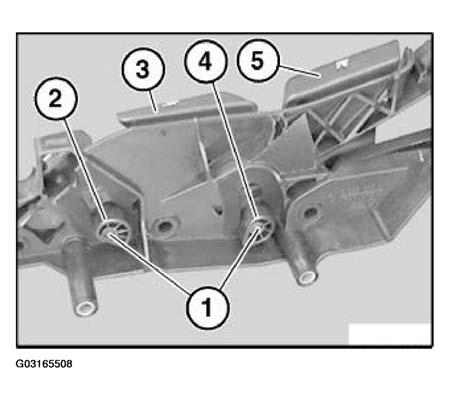

Fig 13: Locating Components

Courtesy of BMW OF NORTH AMERICA, INC.

The eccentric disks (2) and (4) are carried upwards for adjustment by the grease.

Threads for eccentric disks
Eccentric disk for backrest adjustment
Actuating lever for backrest adjustment
Eccentric disk for seat height adjustment
Actuating lever for seat height adjustment

Adjusting actuating unit, actuating unit version part) only:

Adjusting seat height and backrest inclination:

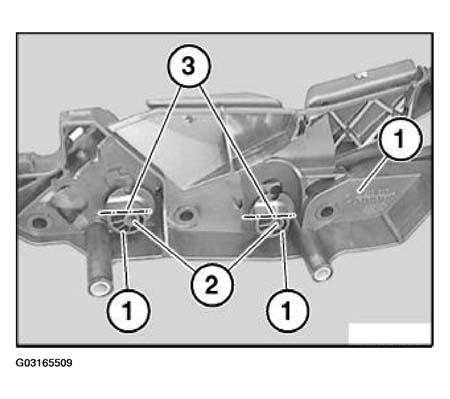

The screw heads of threads (2) must remain clipped in place
Unscrew eccentric disk (1)
Apply acid-free grease to threads (2)
Screw on eccentric disk (1)
Turn eccentric disk (1) to zero position:

straight surface (3) of eccentric disk (1) must be at top.

Fig 14: Adjusting Seat Height & Backrest Inclination

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The picture does not match the replacement unit, the replacement unit has Phillips screws.

Fig 15: Installing Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Install actuating unit.
Press screws (1) and (2) out of hexagon head center and screw down.

Tightening torque, 1.4 Nm.

Adjust longitudinal seat setting:

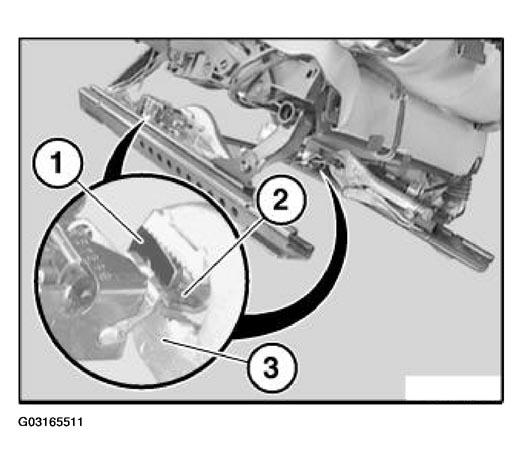

Compress unlocking plates (1) and (2) on seat left/right with gripping pliers (3) (free of play)

Fig 16: Compressing Unlocking Plates
Courtesy of BMW OF NORTH AMERICA, INC.

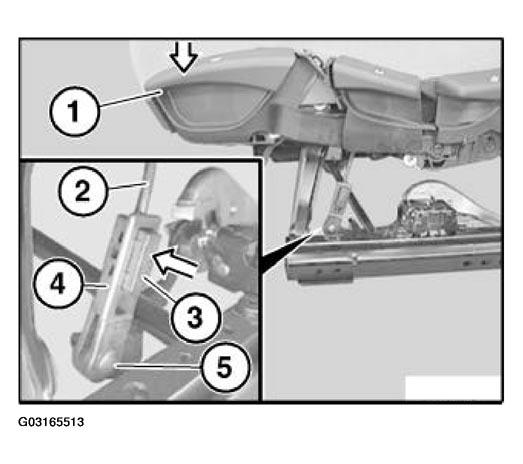

Adjust longitudinal seat setting:

Push new coupling link (1) (adjustment lever) onto threaded rod (3) and secure with expansion rivet (2)

Fig 17: Pushing New Coupling Link Onto Threaded Rod

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust longitudinal seat setting:

Press actuating lever (1) for longitudinal seat adjustment downwards and press together locking clip (3) link (4)

Fig 18: Pressing Actuating Lever For Longitudinal Seat Adjustment Downwards
Courtesy of BMW OF NORTH AMERICA, INC.

(coupling link (4) is now firmly connected to threaded rod (2))
Install front seat in the car.
If necessary, release expansion rivet (5) and readjust by turning coupling link (4)

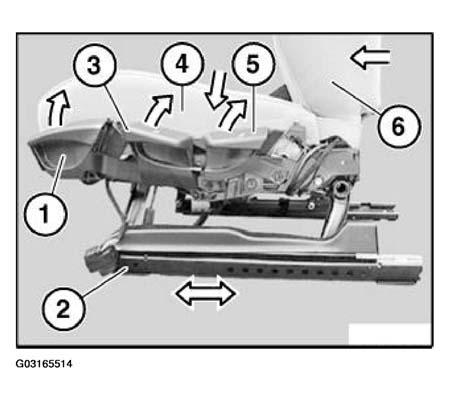

Move front seat to basic position:

Fig 19: Moving Front Seat To Basic Position

Courtesy of BMW OF NORTH AMERICA, INC.

Operate actuating lever (1) and snap seat runner (2) into position by sliding.
Operate actuating lever (3) and snap seat cushion (4) into position by loading.
Operate actuating lever (5) and snap seat backrest (6) into position by moving.
Each actuating lever must have clearance until the mechanism is unlocked
If there is no clearance, the mechanism may be in a semi- unlocked state (risk of injury in event of an accident)
If there is excessive clearance, the mechanism may not unlock completely (no adjustment possible)

Carrying out checks of seat height and backrest inclination adjustment (danger to life of vehicle occupants):

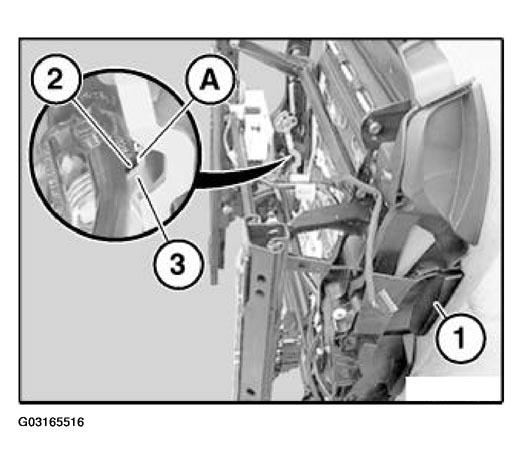

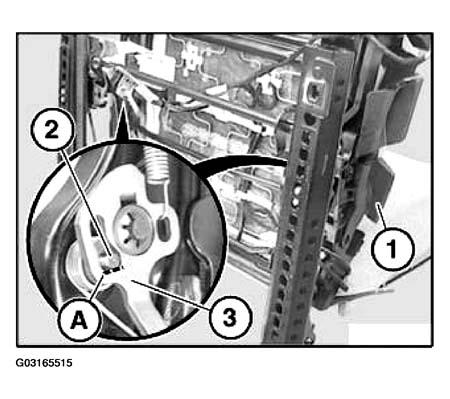

Check backrest inclination:

Front seat must be in basic position
Actuating lever (1) must be in zero position
Pin (2) must rest against pull rod (3)
There must be a clearance (A)

(A) 0 to 0.5 mm

Fig 20: Checking Backrest Inclination

Courtesy of BMW OF NORTH AMERICA, INC.

Check seat height:

Front seat must be in basic position
Actuating lever (1) must be in zero position
Metal lever (2) must rest against metal lever (3)
There must be a clearance (A)

(A) 0 to 0.5 mm

Fig 21: Checking Seat Height

Courtesy of BMW OF NORTH AMERICA, INC.
