52 13 000 Removing And Installing Left Or Right Front Seat (Normal/Manual)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 325Ci, 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove head restraint, refer to 52 13 390 REMOVING AND INSTALLING / REPLACING FRONT HEADREST (NORMAL/ MANUAL)
Adjust front seat as far forward and upward as possible.

WARNING: Read and comply with safety regulations for handling AIRBAG modules and pyrotechnical belt tensioners.AIR BAG SAFETY PRECAUTIONS
Improper handling can lead to triggering of the pyrotechnical seat belt tensioner or side AIRBAG, resulting in injuries.
Switch off ignition.

Saloon only:

Release seatbelt screw (1) and feed out seatbelt strap (2).

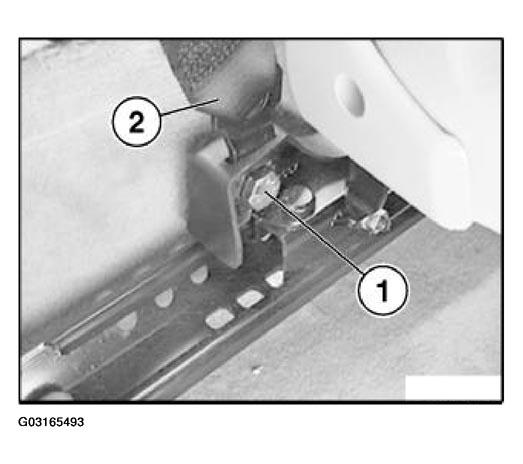

Fig 1: Releasing Seatbelt Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 31 Nm.

All:

Release screws (1) at rear.

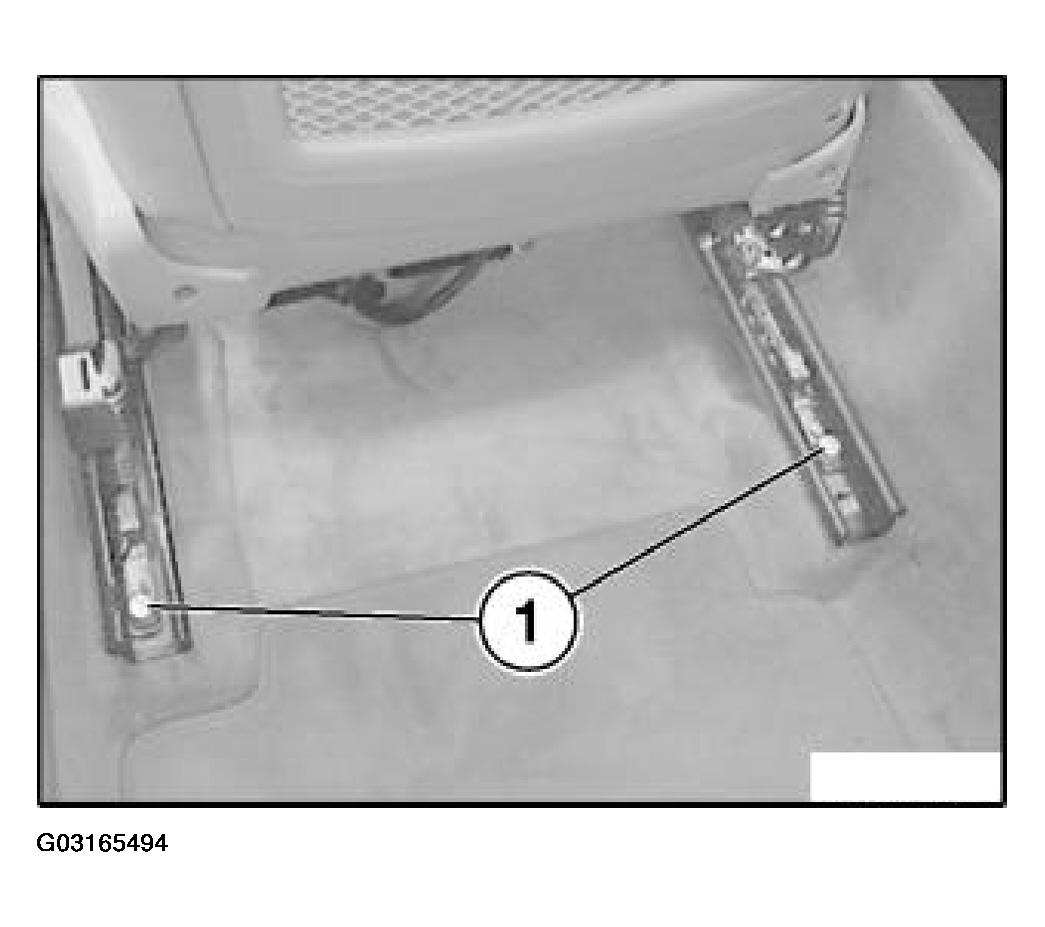

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 45 Nm.

Installation:

Replace screws.

Move front seat as far back as possible.

Unclip cover at front.

Release nuts (3) at front.

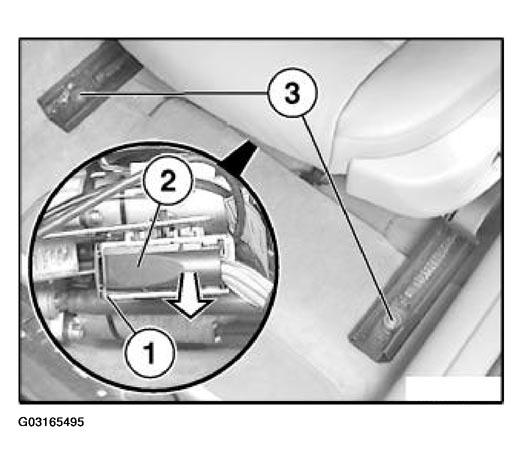

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace nuts.

Move front seat down and seat runners forward so that they are flush.

Unlock lock (1) and disconnect plug connection (2).

IMPORTANT: Cover door sill with protective covers (risk of damage).

Lift out front seat.

Installation:

Carpet must not get between seat rails and floor pan in area of fastening points (grating noises).

Tightening torque, 45 Nm.
