61 31 040 Removing and installing/replacing switch for windshield wipers

Necessary preliminary tasks:

Press locks (1) and windshield wiper stalk (2) in direction of arrow out of fixture for steering column stalk (3).

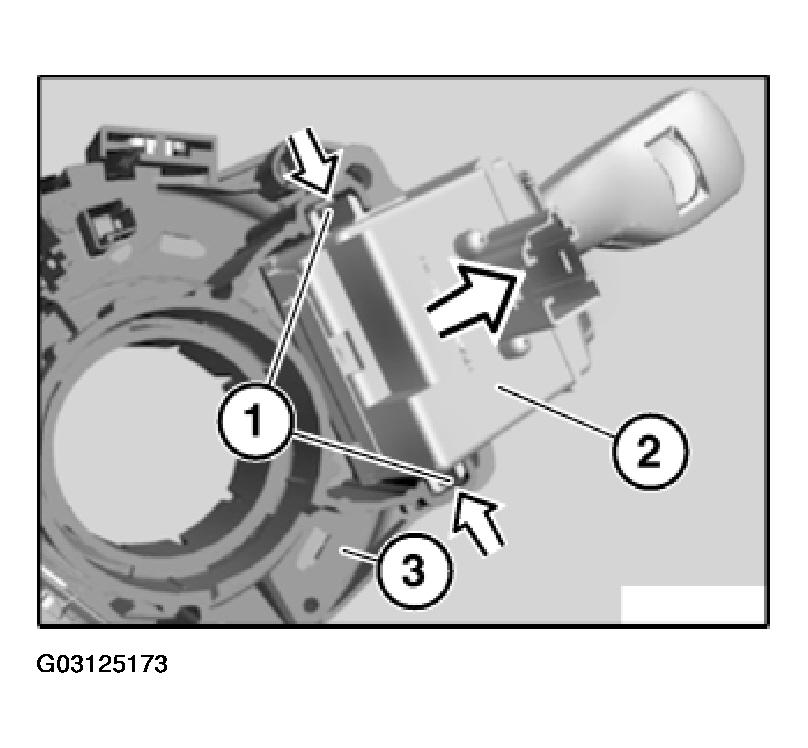

Fig 1: Removing & Installing/Replacing Switch For Windshield Wipers
G03125173Courtesy of BMW OF NORTH AMERICA, INC.
