61 31 005 Removing and installing/replacing fixture for steering column stalk

WARNING: Move wheels into straight-ahead position and do not alter this position during the repair work. With steering wheel removed, do not under any circumstances turn/twist fixture for steering column stalk!

Necessary preliminary tasks:

Remove steering wheel. See 32 33 STEERING WHEEL
Remove lower section of steering column trim. See REMOVAL & INSTALLATION
Remove top section of steering column casing. See STEERING COLUMN UPPER TRIM

Disconnect plug from ring antenna.

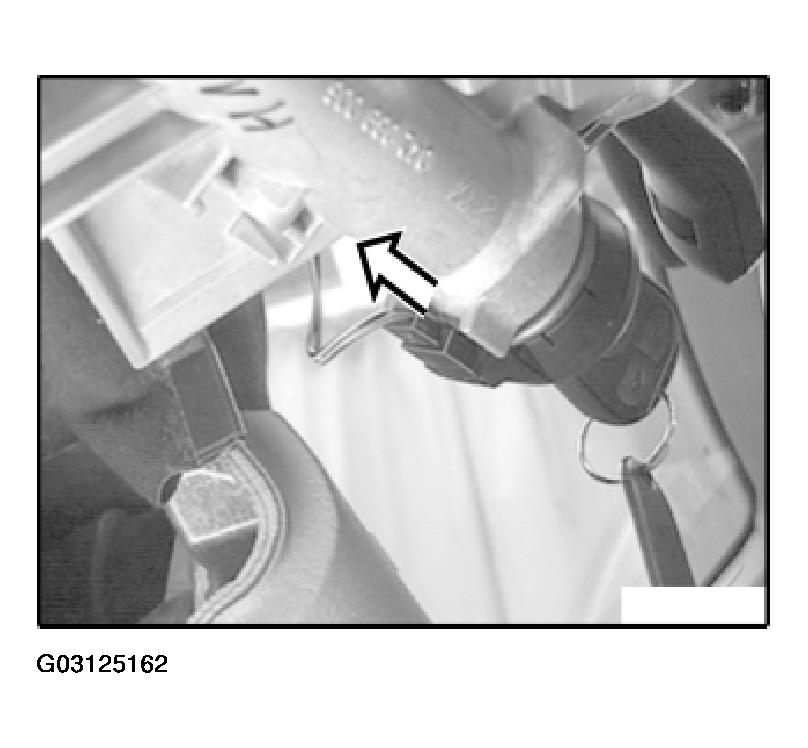

Fig 1: Disconnecting Plug From Ring Antenna

G03125162

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug from wiper switch.

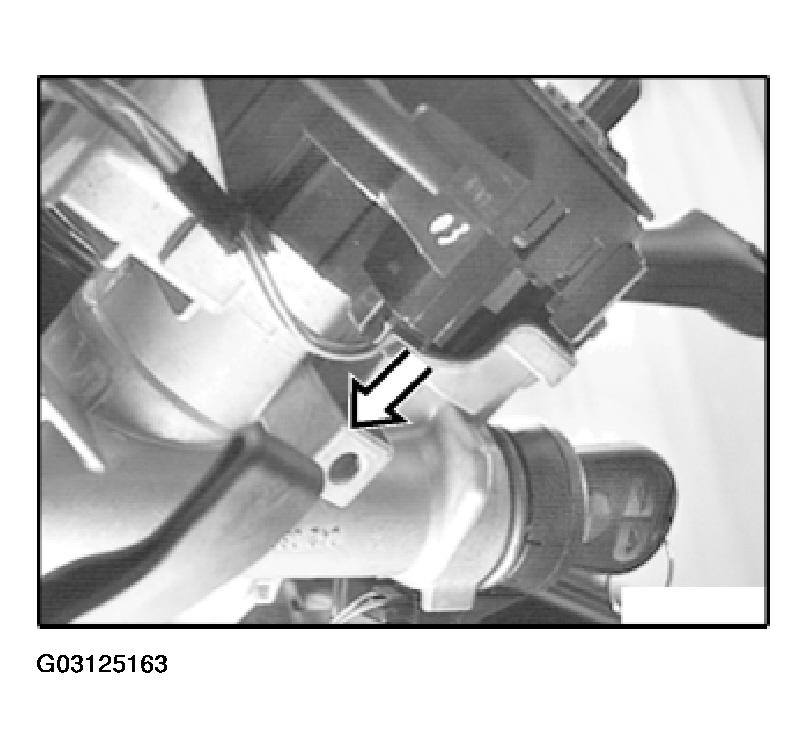

Fig 2: Disconnecting Plug From Wiper Switch

G03125163

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug from turn indicator/dipping switch.

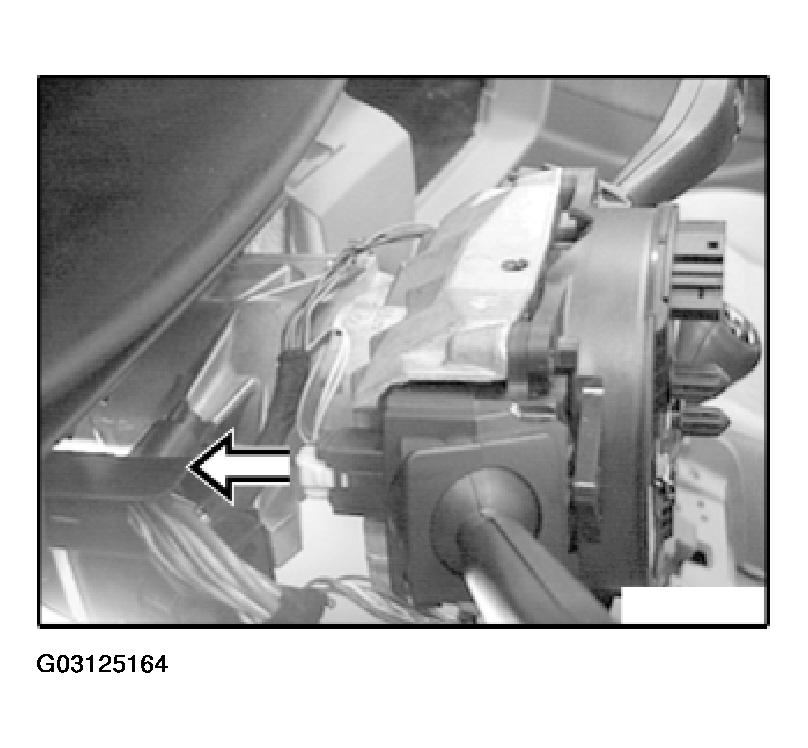

Fig 3: Disconnecting Plug From Turn Indicator/Dipping Switch

G03125164

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove fixture for steering column stalk.

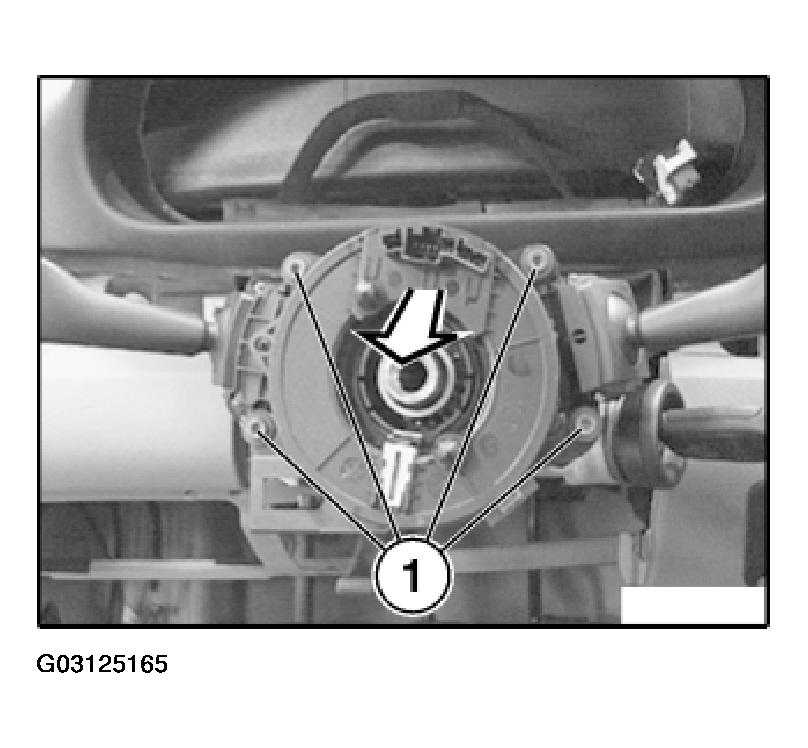

Fig 4: Removing Fixture For Steering Column Stalk

G03125165

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: When removed, the cover (1) of the fixture for the steering column stalk (2) is secured against turning/twisting by the lock (3).
Do not under any circumstances twist the cover (1) out of its centered position against the fixture for the steering column stalk (2).

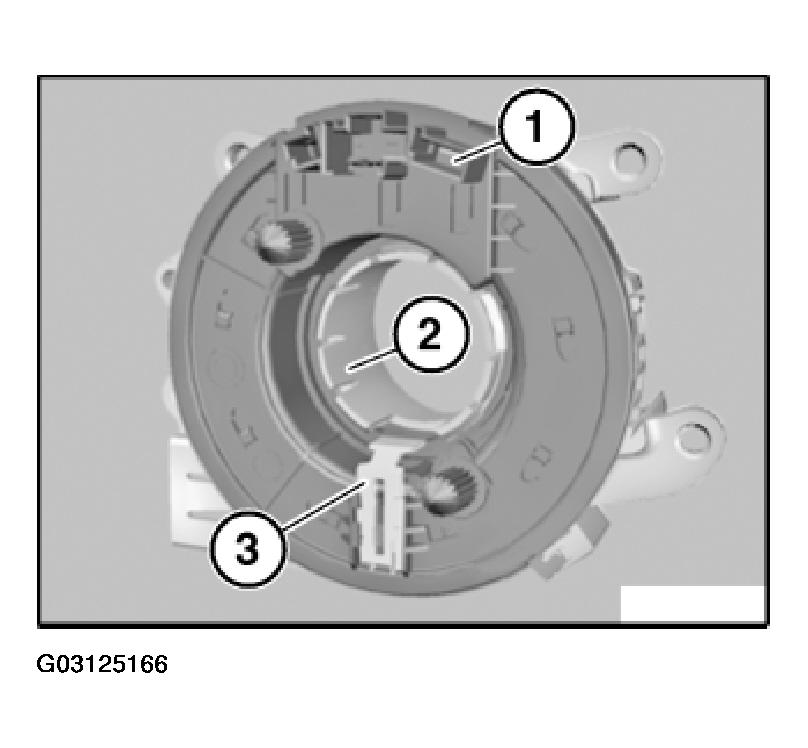

Fig 5: Identifying Cover, Steering Column Stalk & Lock

G03125166

Courtesy of BMW OF NORTH AMERICA, INC.
