61 31 016 Removing and installing/replacing turn indicator/headlight dipping switch

Necessary preliminary tasks:

Press locks (1) and feed direction indicator/dipping stalk (2) in direction of arrow out of fixture for steering column stalk (3).

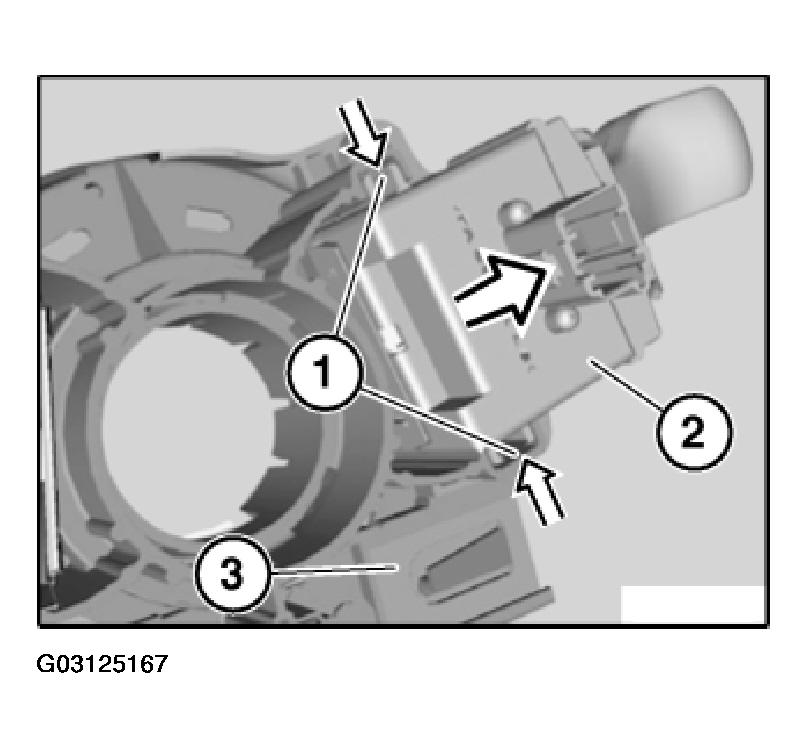

Fig 1: Removing & Installing/Replacing Turn Indicator/Headlight Dipping Switch
G03125167Courtesy of BMW OF NORTH AMERICA, INC.
