51 46 050 Removing And Installing/Replacing Finisher For Top Of Rear Apron

Remove luggage compartment floor trim panel. Refer to 51 47 101 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Remove flaps in luggage compartment trim panel on left and right. Refer to 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

Raise trim (1) and release screws (2).

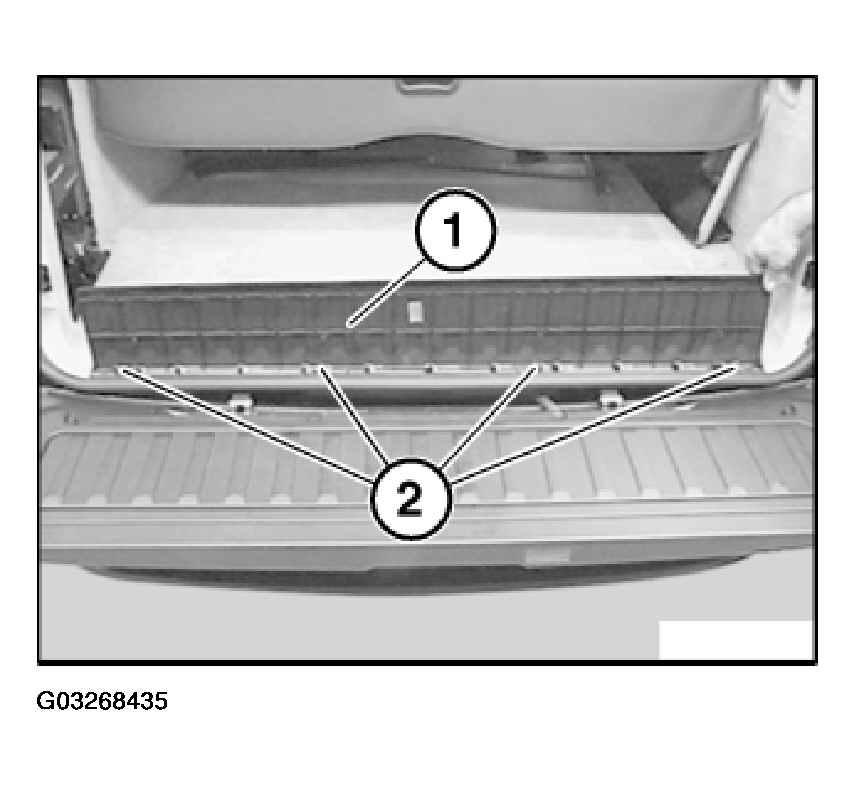

Fig 1: Raising Trim
G03268435Courtesy of BMW OF NORTH AMERICA, INC.

Lever out trim (1) in lashing eyes on opening.

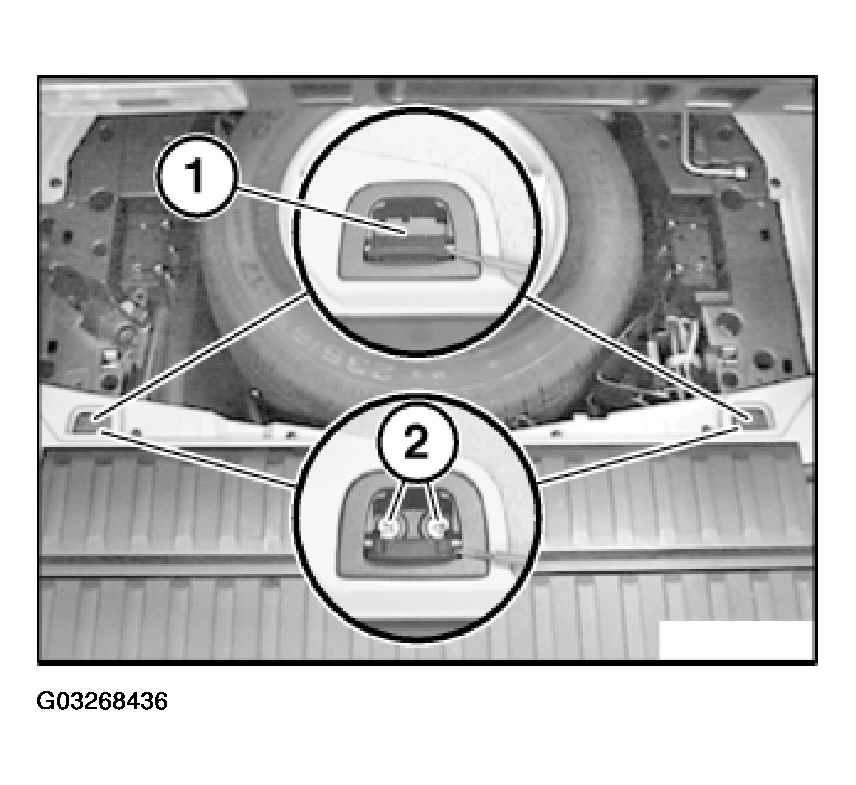

Fig 2: Removing Lashing Eyes
G03268436Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and lever out lashing eyes.

Release screws (1).

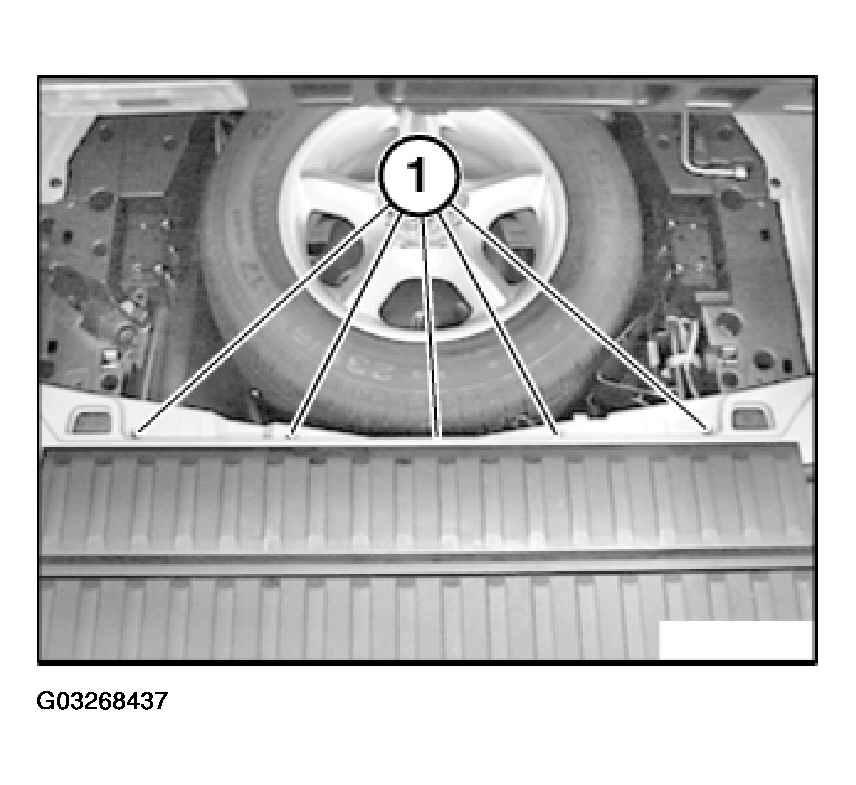

Fig 3: Releasing Screws
G03268437Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on cover (2).

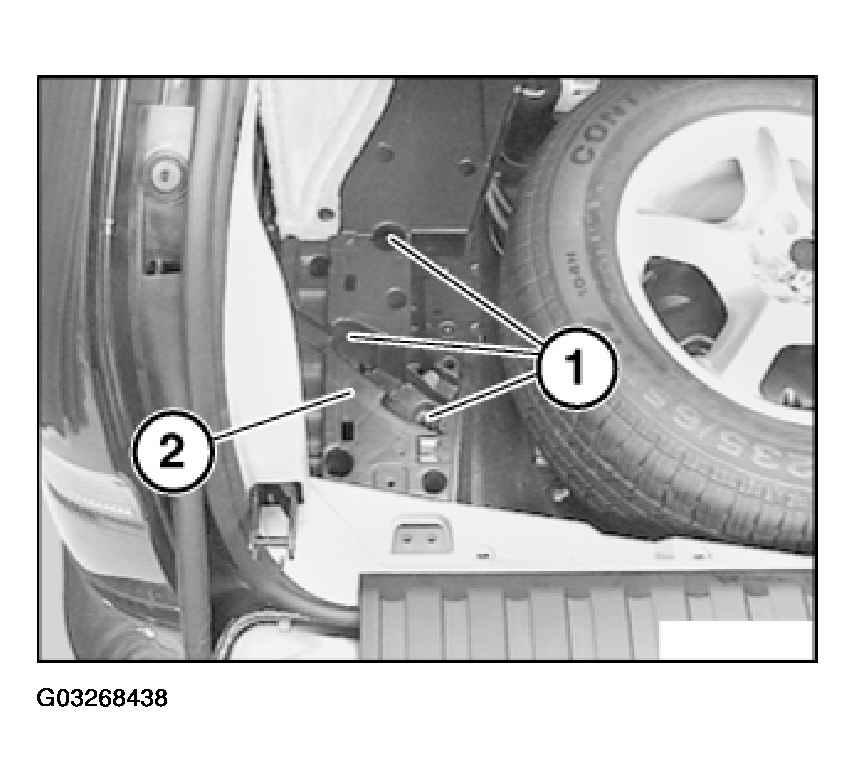

Fig 4: Releasing Screws On Cover
G03268438Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cover (2).

Release screws (1) on cover (2).

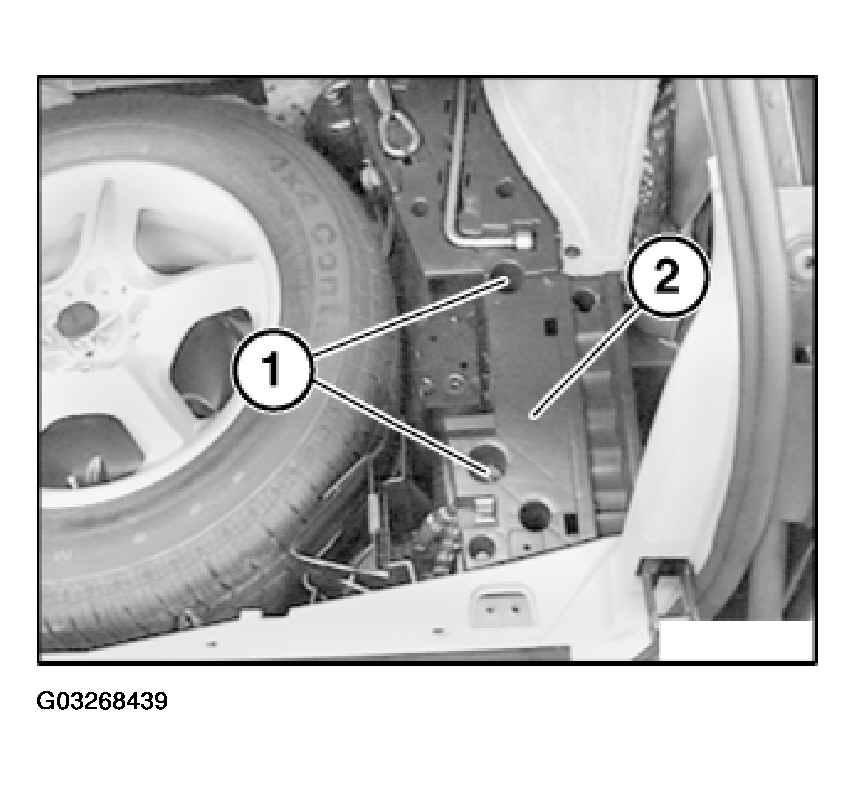

Fig 5: Removing Trim On Tail Panel
G03268439Courtesy of BMW OF NORTH AMERICA, INC.

Lift off cover (2).

Remove trim on tail panel.
