51 34 425 Removing And Installing/Replacing Trim On Window Frame Of Rear Door, Rear Left Or Right

Remove window cavity covering strip on outside. Refer to 51 22 300 REMOVING AND INSTALLING/REPLACING WINDOW CAVITY COVER STRIP ON REAR DOOR ON LEFT OR RIGHT .

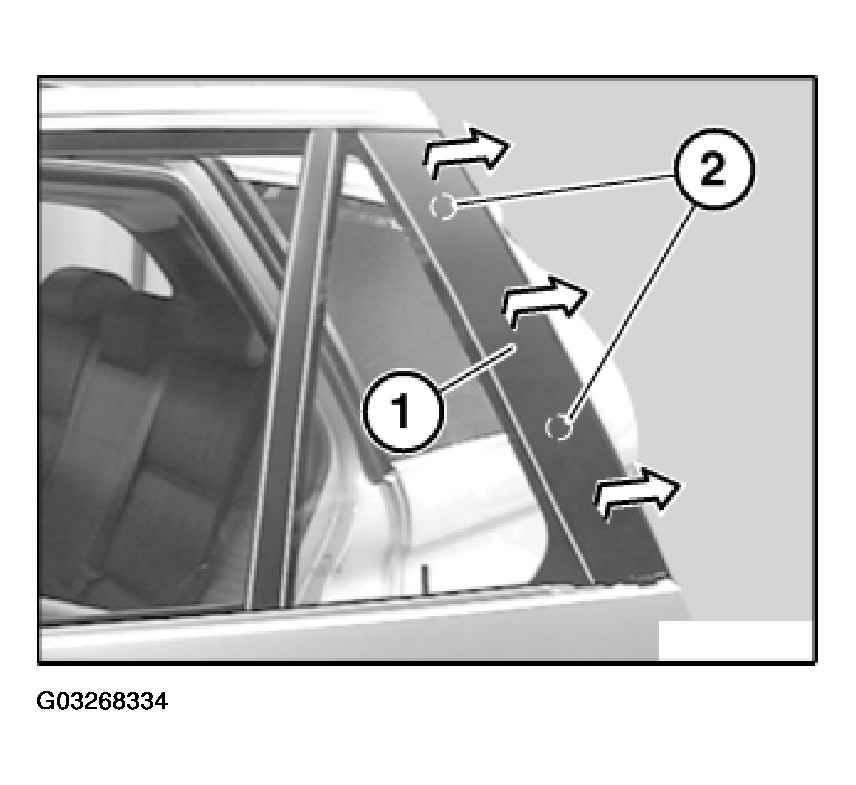

Unclip trim (1) from clips (2) and detach towards rear.

Fig 1: Detaching Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

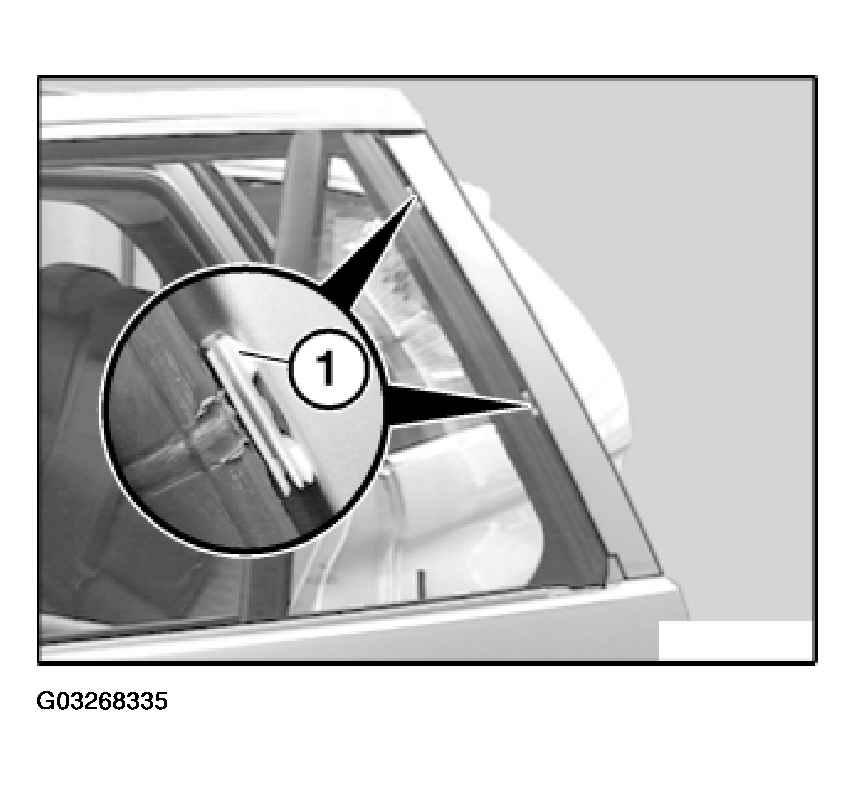

Retainers (1) must not be damaged.

Fig 2: Identifying Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

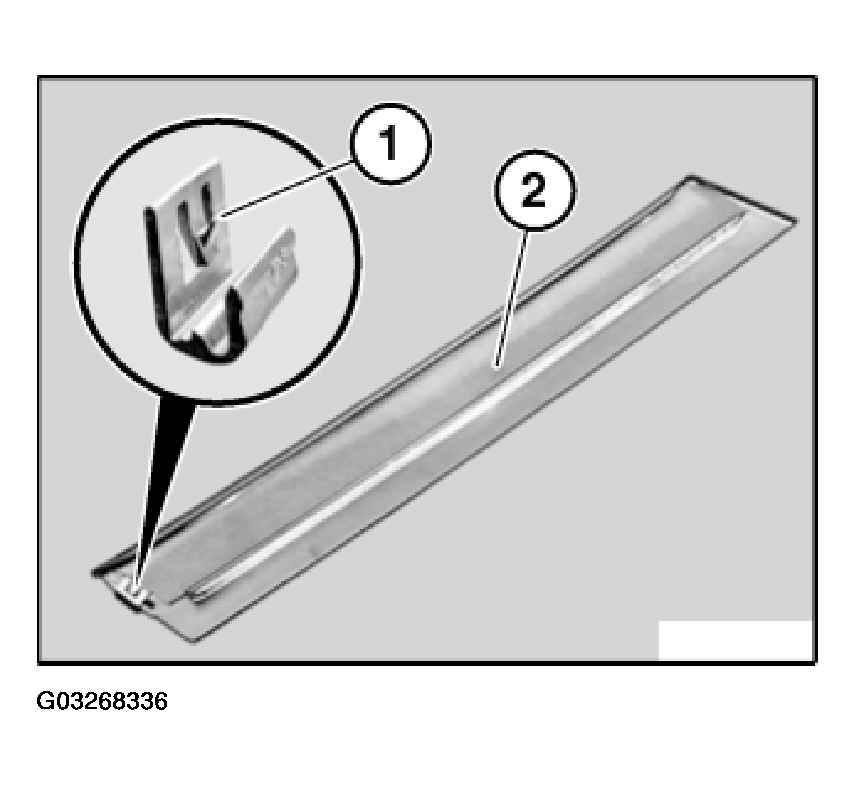

If necessary, replace faulty clips (1) on trim (2).

Fig 3: Replacing Faulty Clips On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
