51 22 300 Removing And Installing/Replacing Window Cavity Cover Strip On Rear Door On Left Or Right

Special tools required:

IMPORTANT: Observe procedure for using special tool 00 9 324. Refer to 51 2. ... REMOVING WINDOW CAVITY COVER STRIP WITH SPECIAL TOOL 00 9 324 AT FRONT OR REAR .

IMPORTANT: If reusing the existing window cavity cover strip (1), make sure it is not bent.

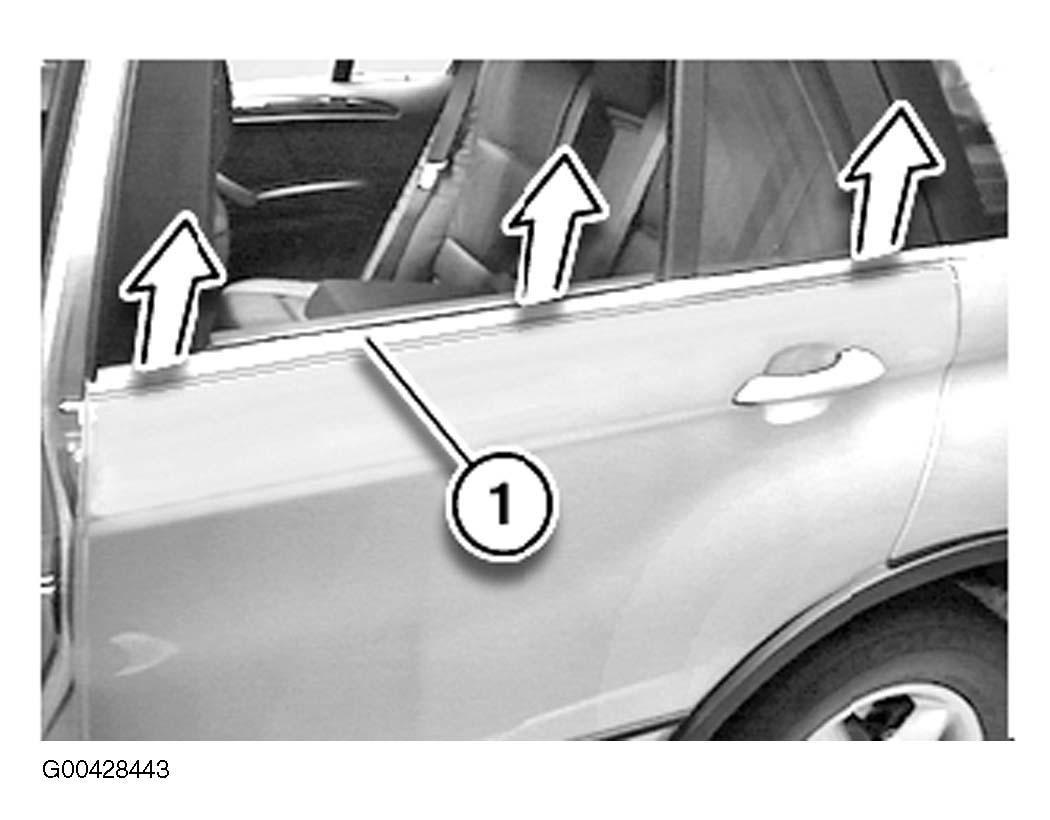

Lever out window cavity cover strip (1) with special tool 00 9 324 (starting at B-pillar).

Fig 1: Levering Out Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Coat window cavity cover strip (1) with water before fitting.

Window cavity cover strip (1) must be flush at front and rear with door edge.

Installation:

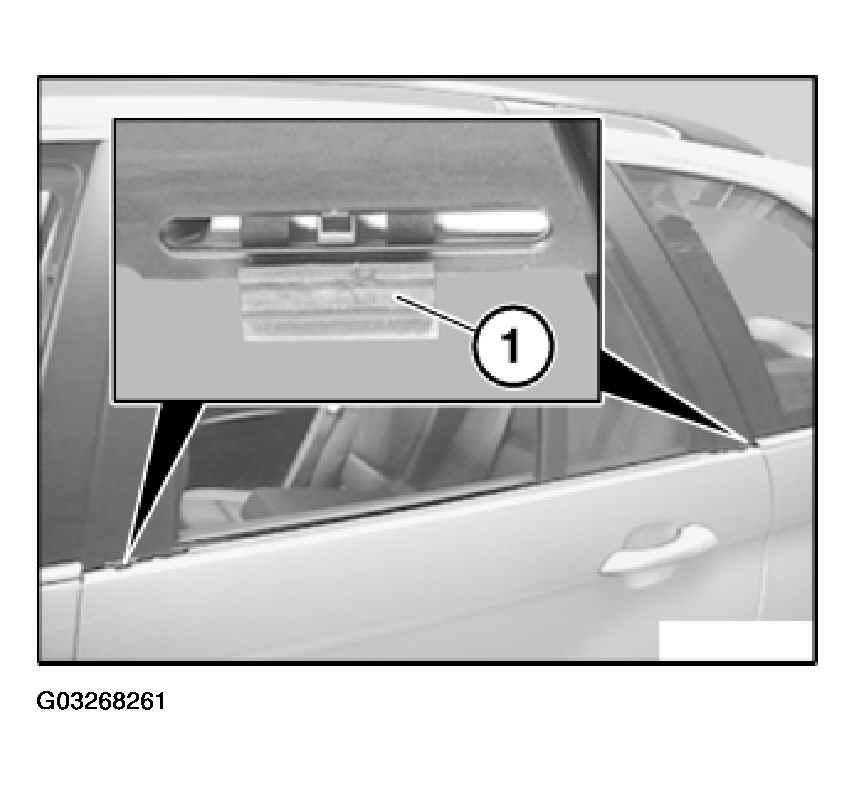

Clips (1) must not be damaged.

Fig 2: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

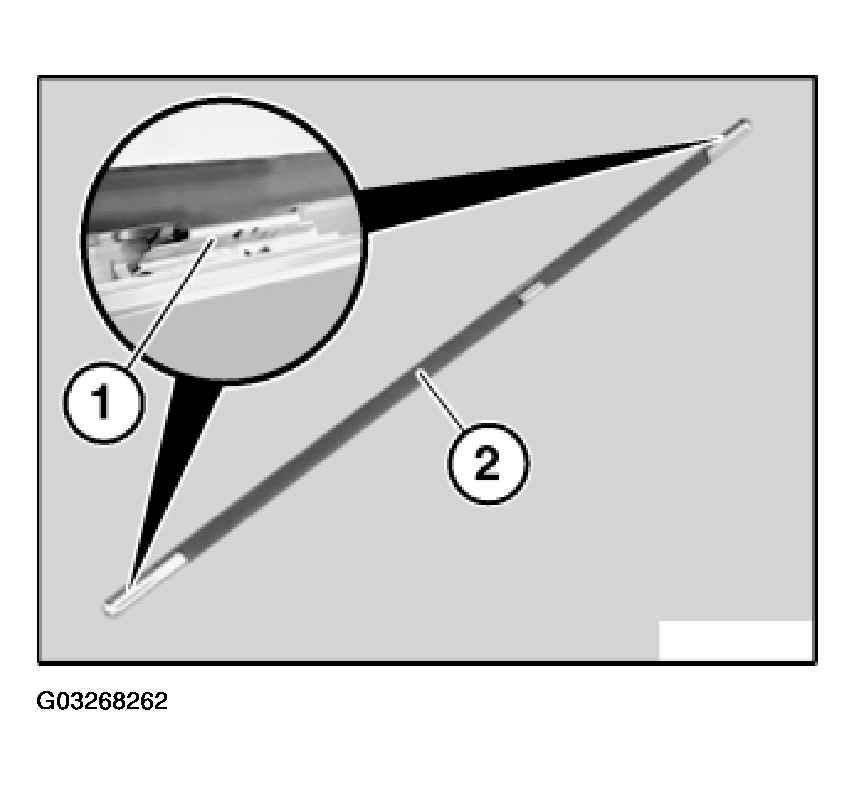

Retainers (1) of window cavity cover strip (2) must not be damaged.

Fig 3: Identifying Retainers Of Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.
