51 47 161 Removing And Installing/Replacing Right Trunk Wheel Arch Trim

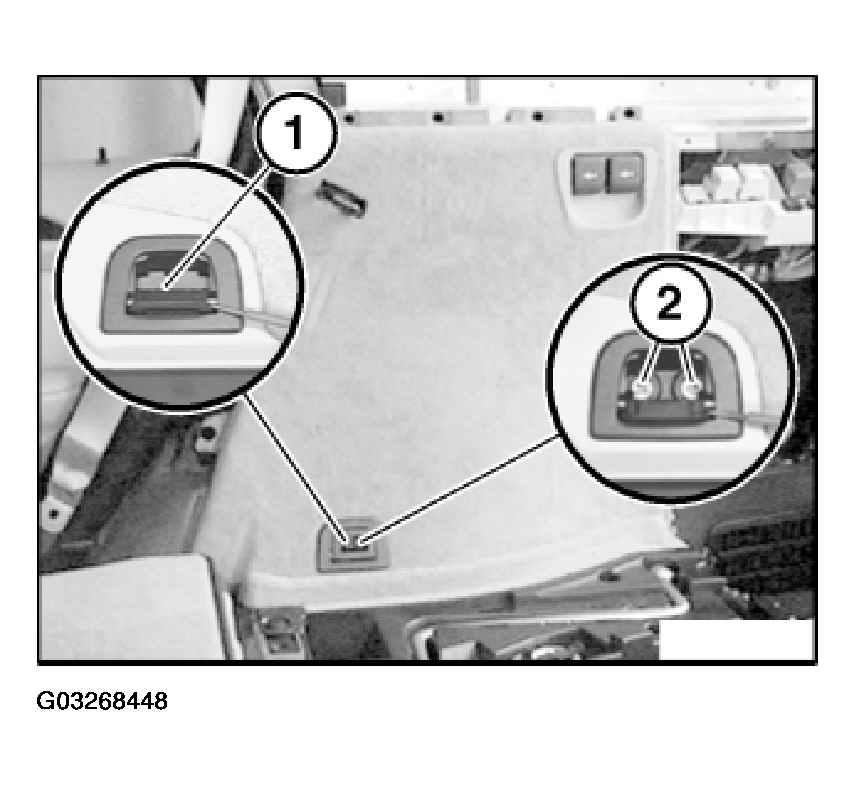

Lever out cover plate (1) in lashing eye.

Fig 1: Locating Cover Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

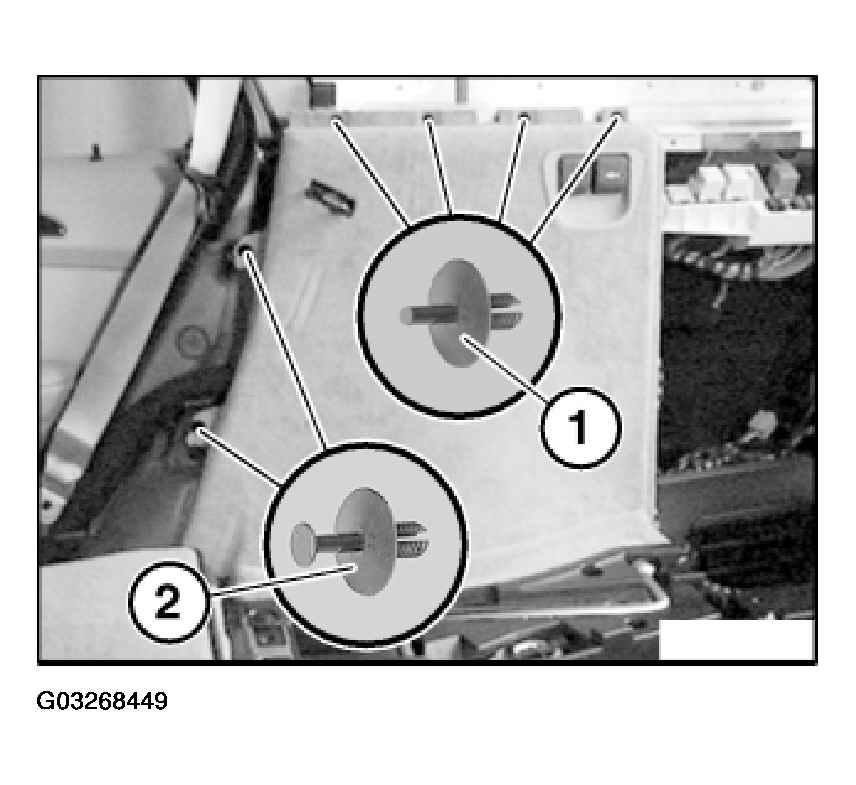

Release expansion rivets (1) and (2).

Fig 2: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

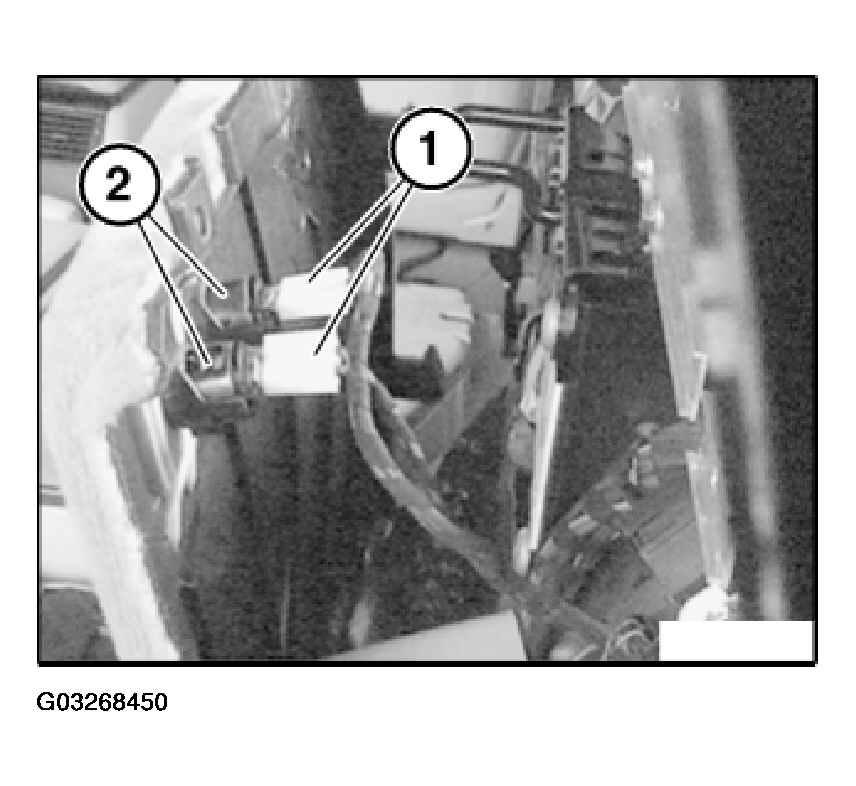

Disconnect plug connections (1) on both 12 V sockets (2).

Fig 3: Removing Right Luggage Compartment Wheel Arch Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Removing right luggage compartment wheel arch trim.

Installation:

Check catch of socket housing in luggage compartment wheel arch trim.

If necessary, replace 12 V sockets.

Replacing 12 V sockets:

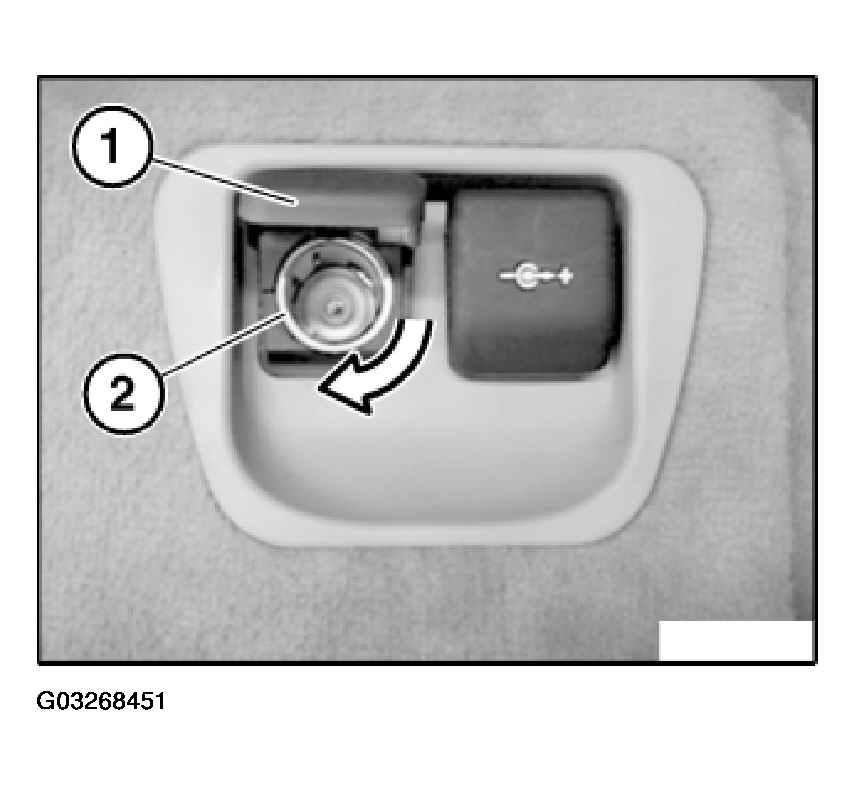

Open cover (1) of socket housing.

Fig 4: Removing Socket From Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket insert (2) approx. 30° to right.

Turn socket insert (2) under tension back into initial position and pull out of socket housing.

Installation:

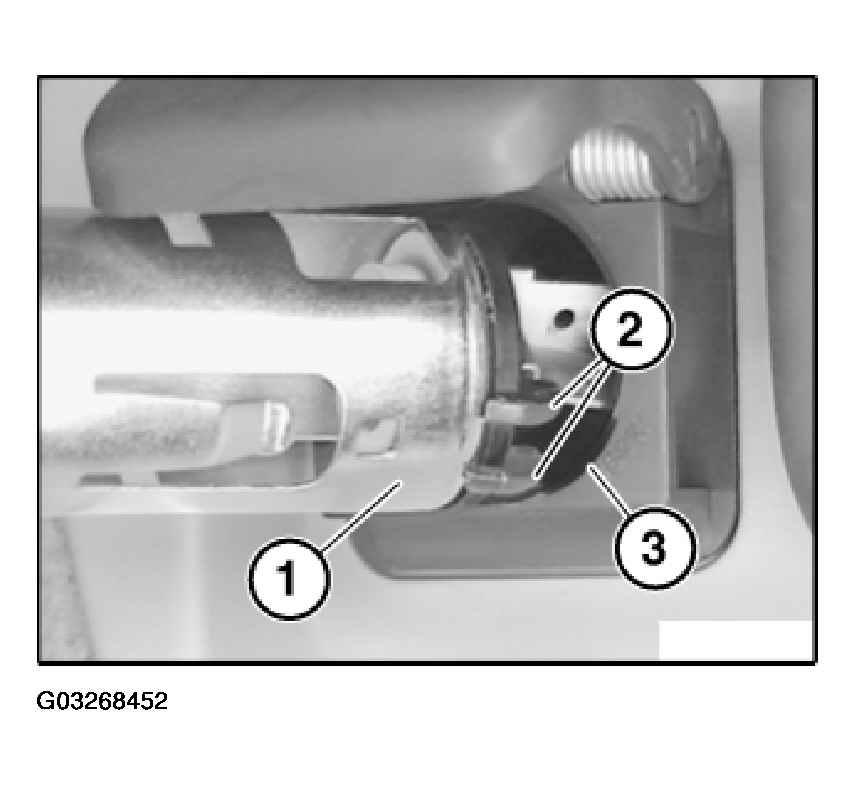

Align socket insert (1) with retaining lugs (2) to groove (3) of socket housing and slide in until it is felt snapping into place.

Fig 5: Aligning Socket Insert

Courtesy of BMW OF NORTH AMERICA, INC.

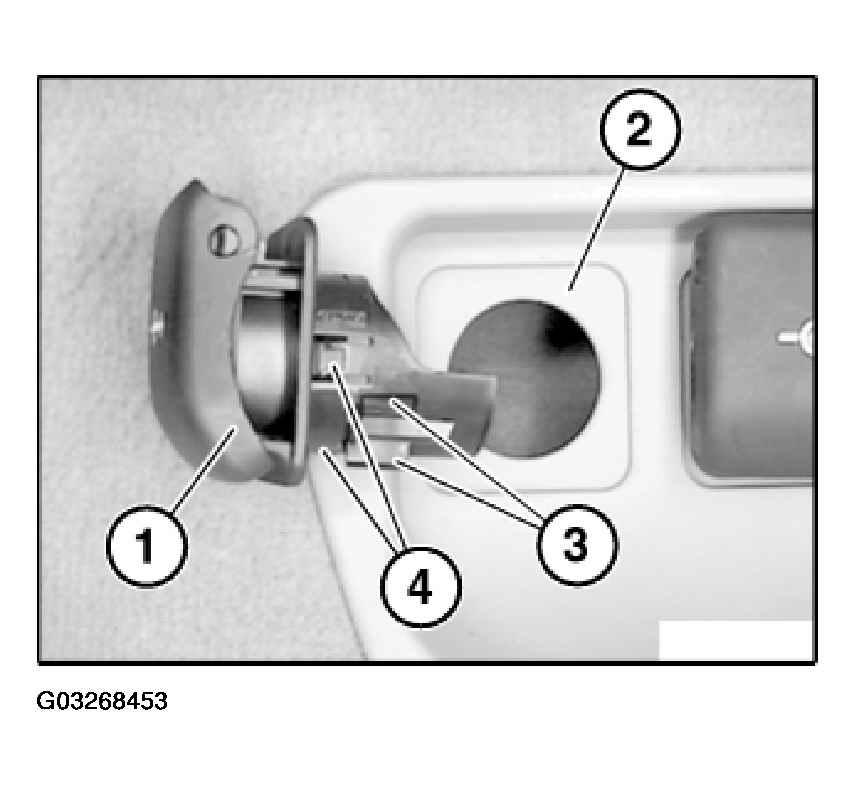

Pull socket housing (1) approx. 5 mm out of wheel arch trim (2) and tilt out to right at bottom.

Fig 6: Removing Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert socket housing with plastic lugs (3) into wheel arch trim and lock with retaining lugs (4).
