Special tools required:

WARNING: This page is about a different variant/trim than selected.

11 1 380
11 6 370
11 6 380

Preliminary tasks are described in Disassembling and assembling cylinder head .

Press special tool 11 6 370 onto valve stem seal.

Withdraw valve stem seal by turning and simultaneously unscrewing special tool 11 6 370.

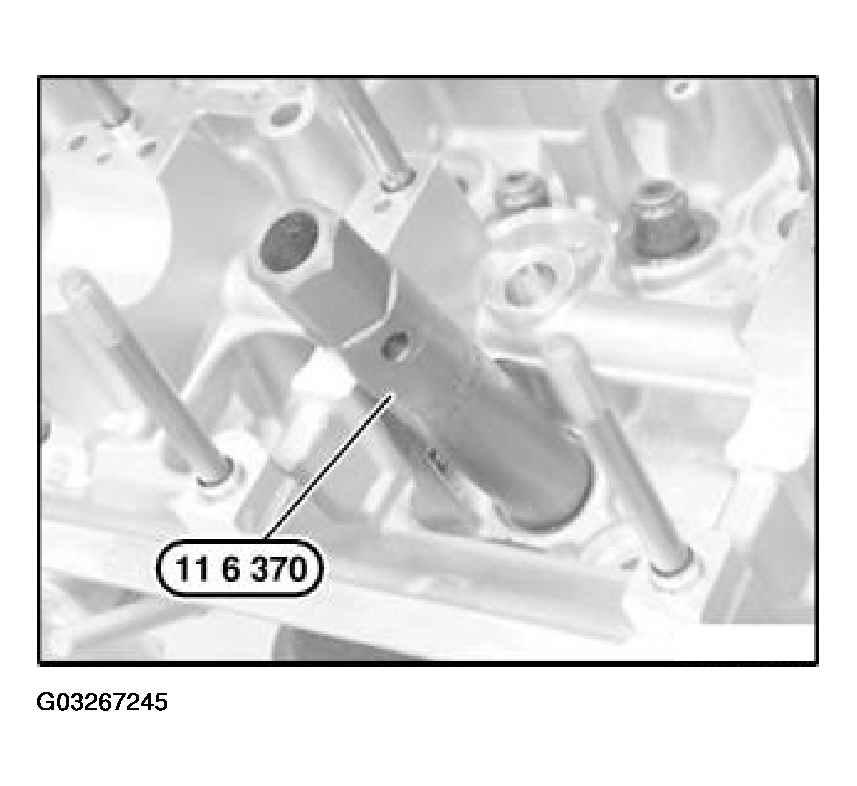

Fig 1: Pressing Special Tool 11 6 370 Onto Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lubricate valve stem with oil and insert valve.

Fit special tool 11 1 380.

Coat new valve stem seal (1) with oil and install.

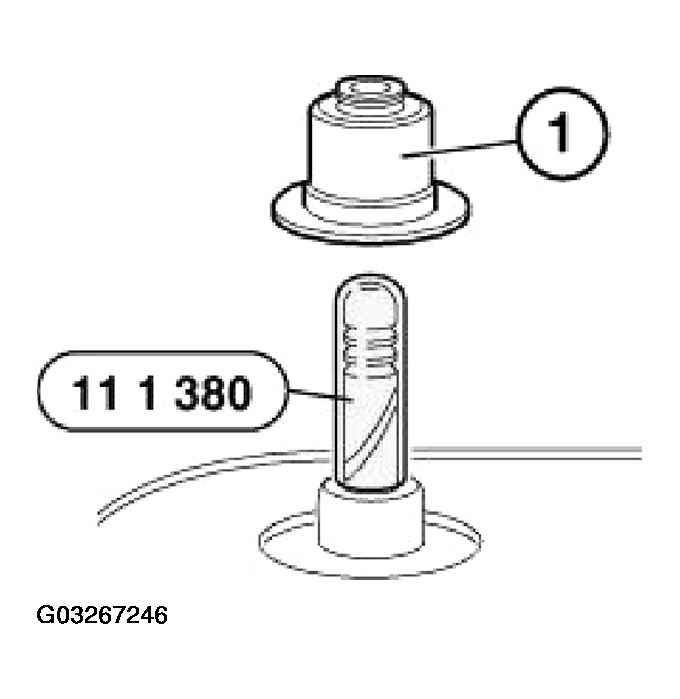

Fig 2: Installing New Valve Stem Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For use on the N62 engine, special tool 11 6 380 must be remachined in accordance with the illustration with a 6.2 mm dia. drill bit to a depth of A = approx. 45 mm.

This modification has already been taken into account for reordering.

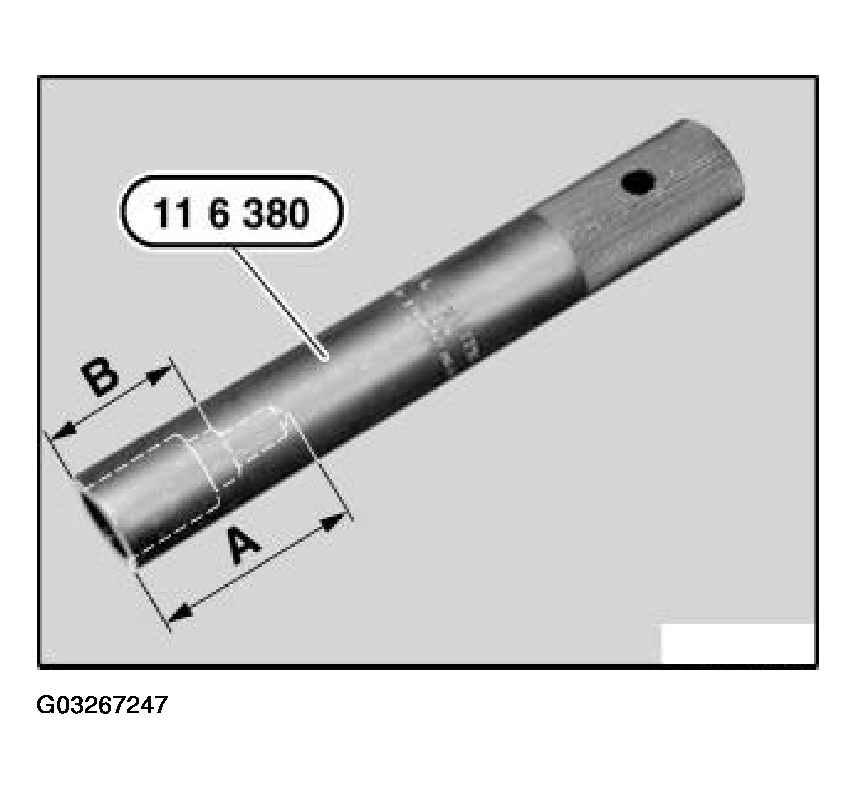

Fig 3: Identifying Special Tool 11 6 380 Depth

Courtesy of BMW OF NORTH AMERICA, INC.

Press on valve stem seal with special tool 11 6 380 by hand as far as it will go.

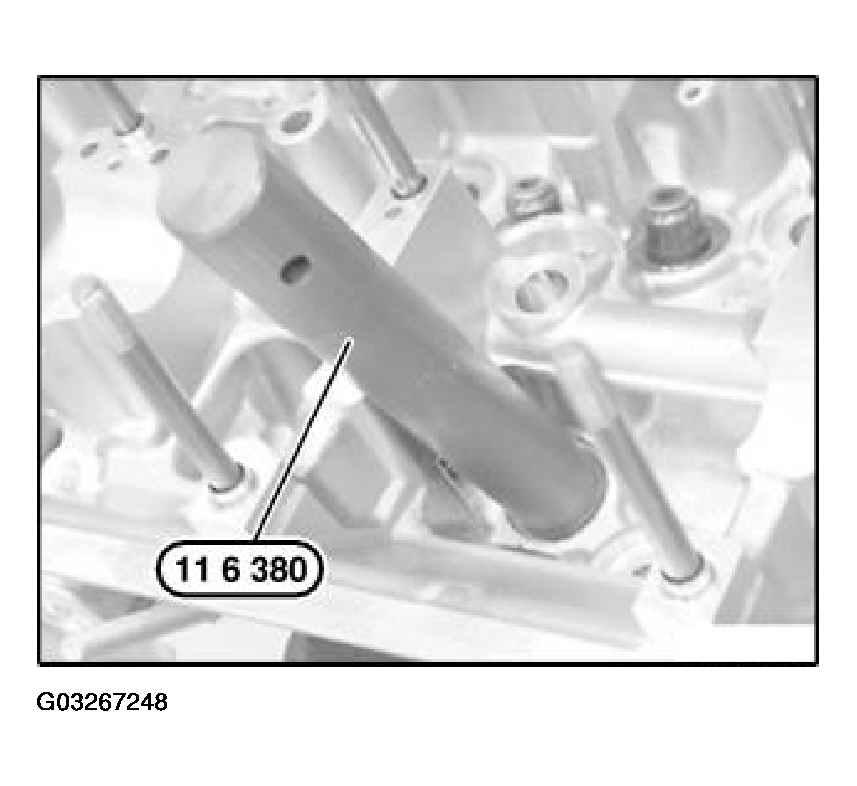

Fig 4: Pressing On Valve Stem Seal With Special Tool 11 6 380
