11 12 503 Disassembling and assembling cylinder head (N62)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Have special tool 11 9 000 ready for removing valve springs.

Secure cylinder head (1) on special tool 11 9 001.

NOTE: Secure cylinder head from above with screws contained in scope of delivery on special tool 11 9 001.

Turn special tool 11 9 001 through 180°.

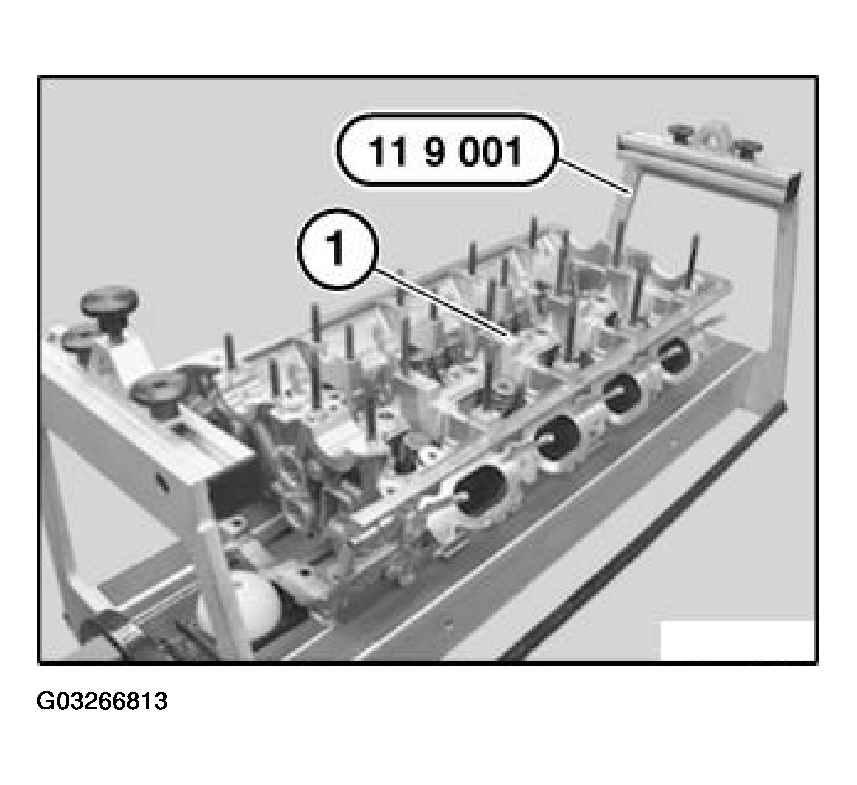

Fig 1: Securing Cylinder Head On Special Tool 11 9 001

Courtesy of BMW OF NORTH AMERICA, INC.

Align special tool 11 9 008 in conjunction with special tool 11 9 007 on special tool 11 9 006 to relevant combustion chamber.

Place special tool 11 9 006 on cylinder head.

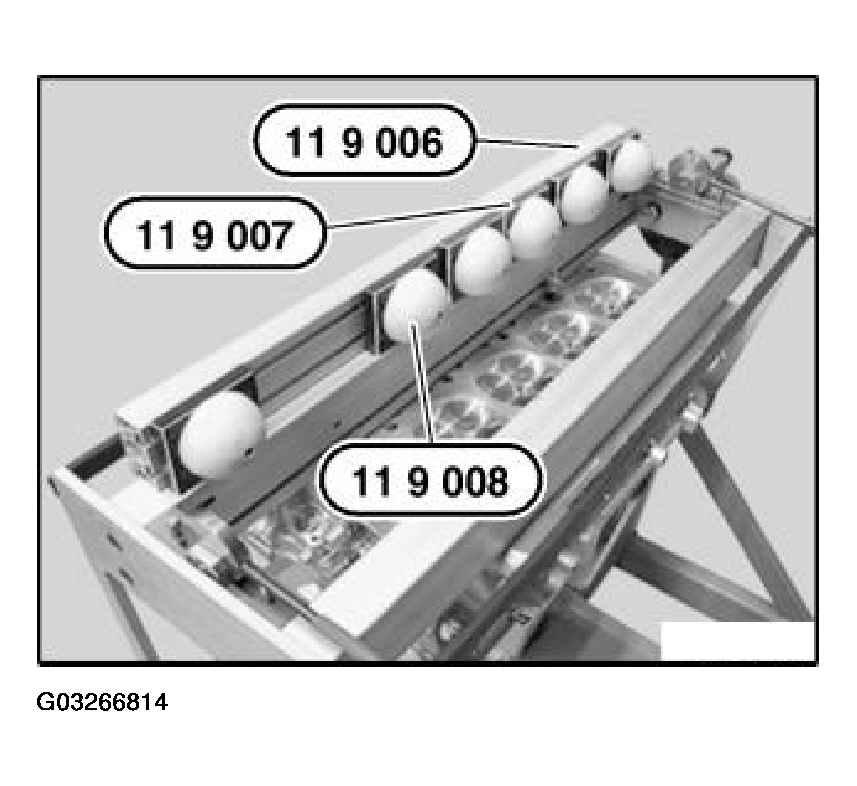

Fig 2: Aligning Special Tool 11 9 008 In Conjunction With Special Tool 11 9 007 On Special Tool 11 9 006 To Relevant Combustion Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

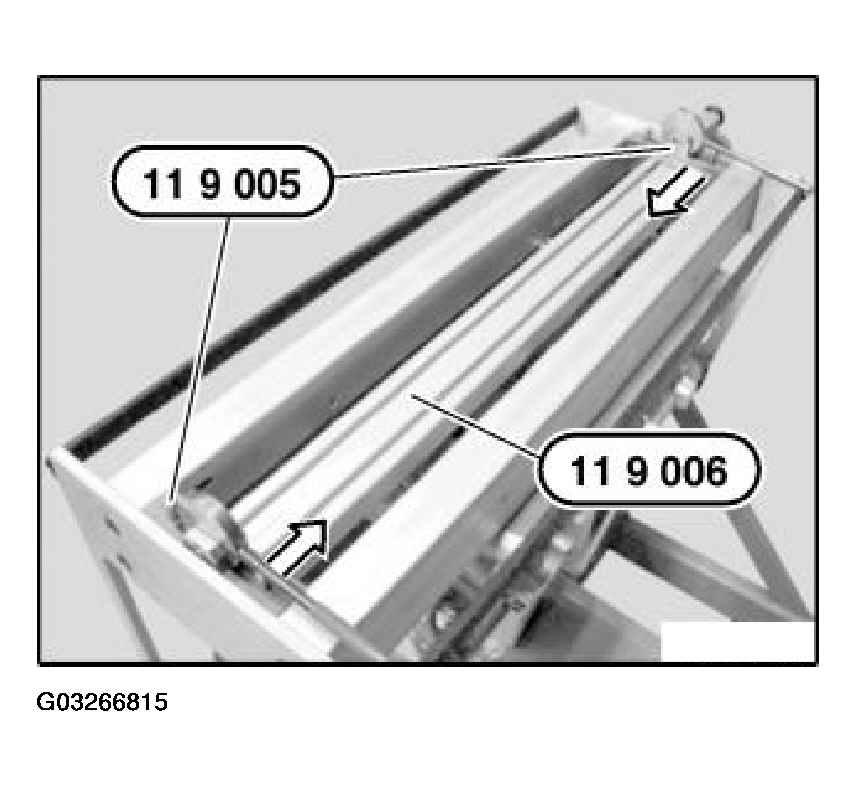

Fig 3: Placing Special Tool 11 9 006 On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.
