11 21 531 Replacing all main crankshaft bearing shells (N62)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

(Engine Dismantled)

Clean components before installing.

Preparatory tasks are described in the section REPLACING CRANKSHAFT (N62/N62TU) OPERATION .

NOTE: Install main bearing shells (1) with lubrication groove in crankcase. Install main bearing shells (2) without lubrication groove in the main bearing caps.

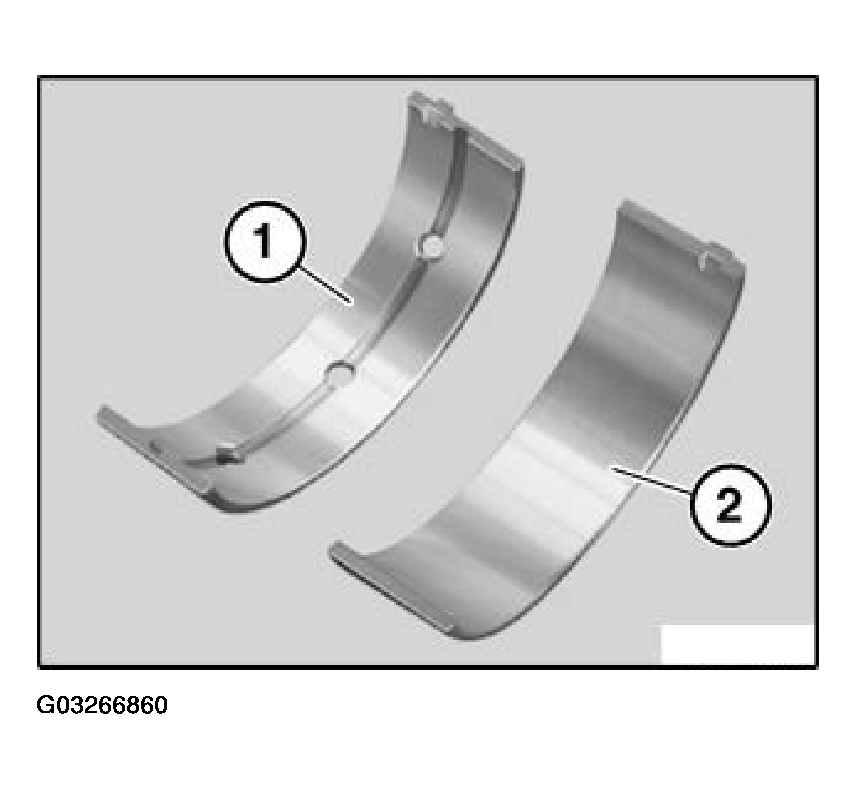

Fig 1: Identifying Main Bearing Shells With Lubrication Groove And Without Lubrication Groove
G03266860Courtesy of BMW OF NORTH AMERICA, INC.

The letter (1) denotes the crankshaft construction stage.

S= Series

B= Construction stage 1

C= Construction stage 2

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

1= yellow

2= green

3= violet

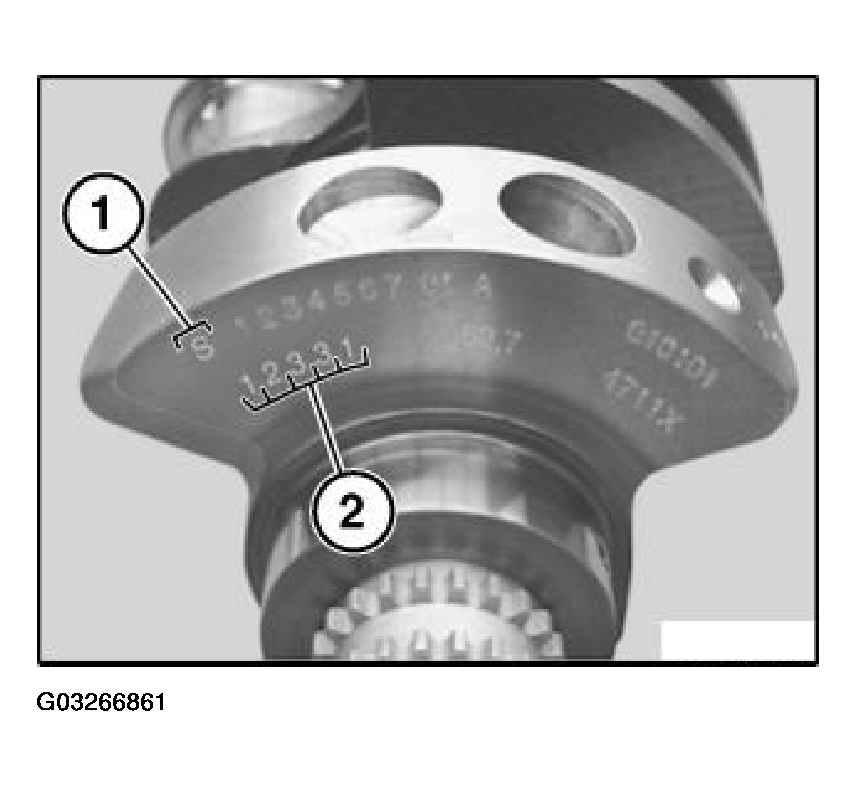

Fig 2: Identifying Letter Denotes Crankshaft Construction Stage And Numbers Denote Bearing Shell Classification
G03266861Courtesy of BMW OF NORTH AMERICA, INC.

The letters (1) denote the bearing shell classification for the relevant bearing position from 1 to 5 in the crankcase and is located on the transmission side in the Vee. The first letter on the left applies to the first bearing position at the front.

Y= yellow

G= green

V= violet

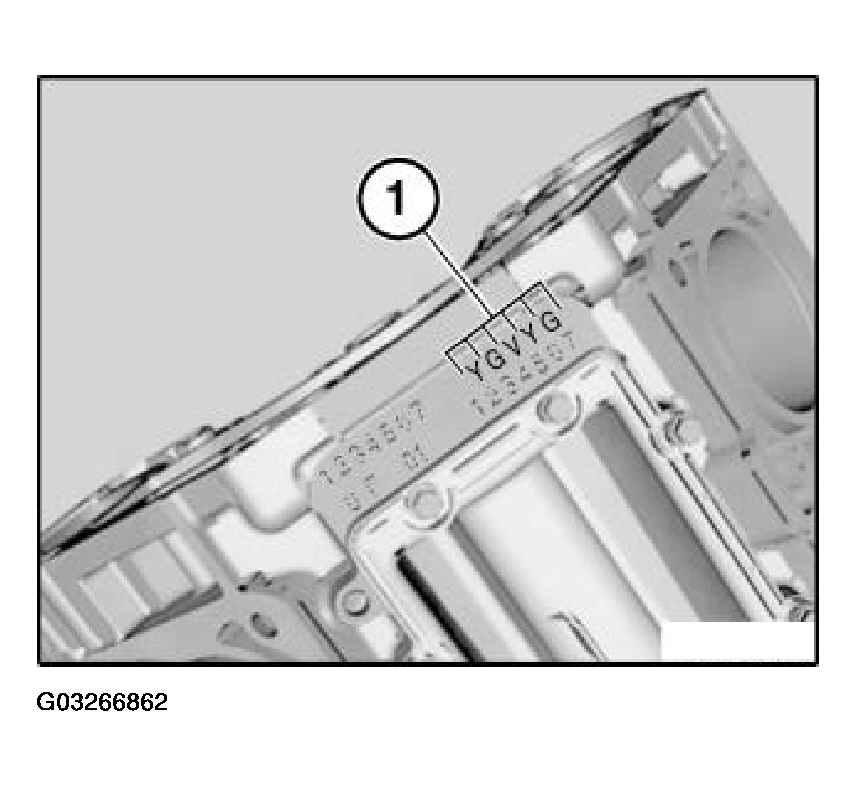

Fig 3: Identifying Letters Denote Bearing Shell Classification For Relevant Bearing Position
G03266862Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Main bearing caps (1, 2 and 3) are identified with punch numbers.
Main bearing caps (4 and 5) are not identified.

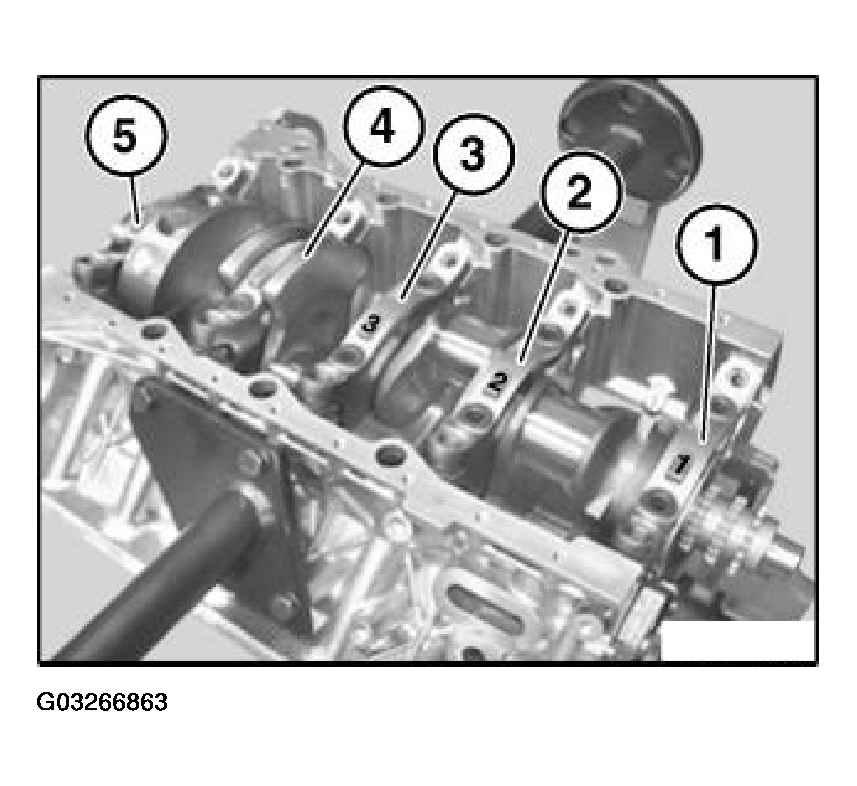

Fig 4: Identifying Main Bearing Caps With Punching Numbers
G03266863Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Main bearing cap number 5 can be identified by the surfaces (1) for the stop disks of the thrust bearing.

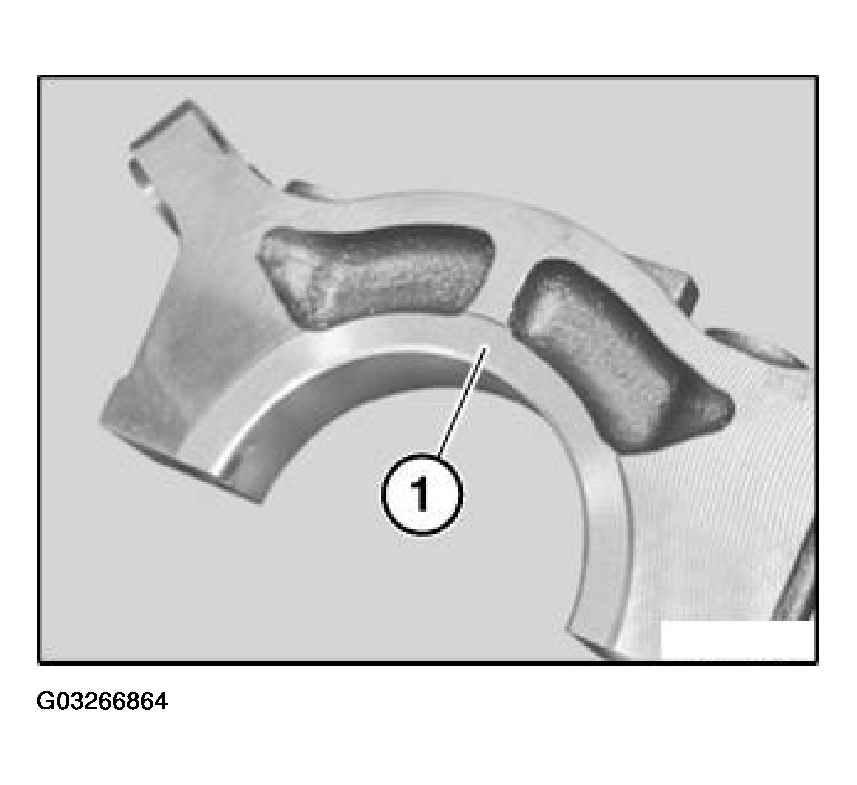

Fig 5: Identifying Main Bearing Cap Surfaces
G03266864Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew thread support bushings in main bearing caps.

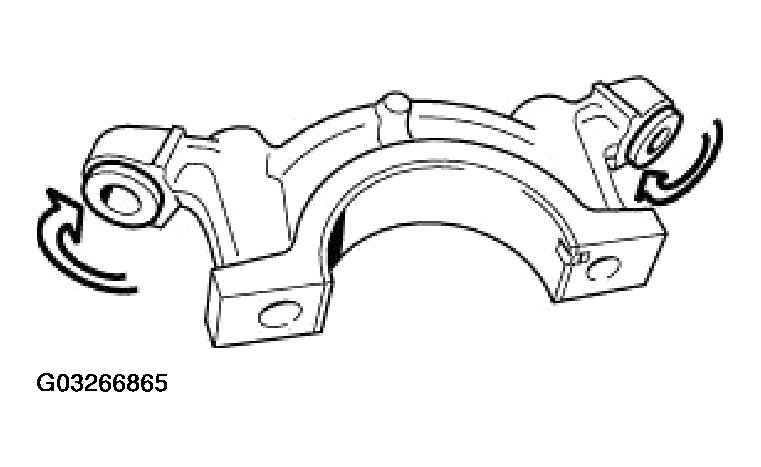

Fig 6: Unscrewing Thread Support Bushings In Main Bearing Caps
G03266865Courtesy of BMW OF NORTH AMERICA, INC.

Checking main bearing clearance:

To check crankshaft bearing clearance, use old main bearing screws.

There must be no oil in the blind holes (risk of cracking).

Do not rotate crankshaft.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

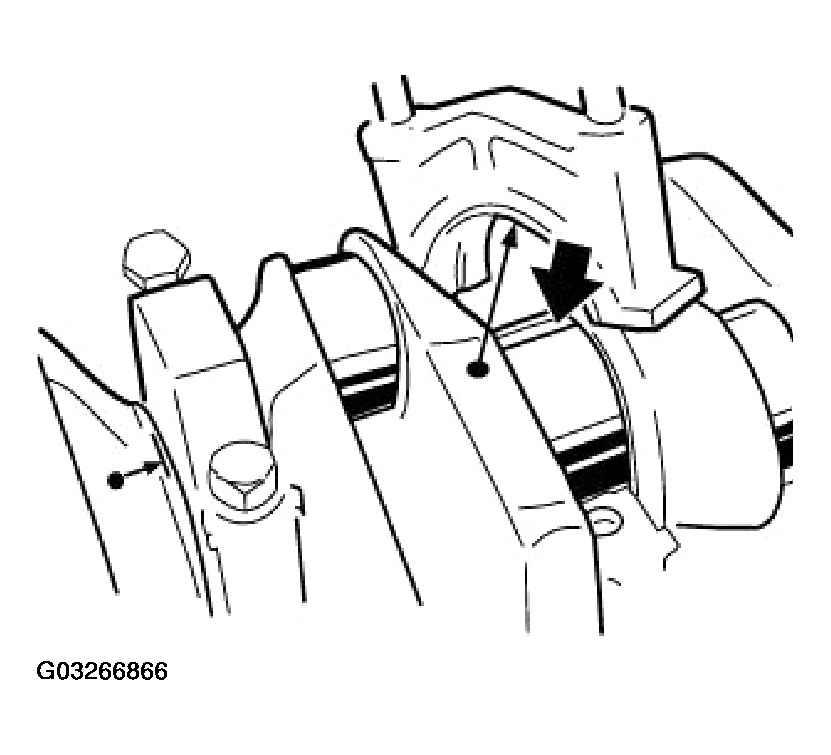

Fig 7: Checking Crankshaft Bearing Clearance
G03266866Courtesy of BMW OF NORTH AMERICA, INC.
  1. Tighten all screws on main bearing cover with jointing torque.
  2. Tighten down all screws on main bearing caps with special tool 00 9 120 and torsion angle.

    Tightening torque, see ENGINE - TIGHTENING TORQUES .

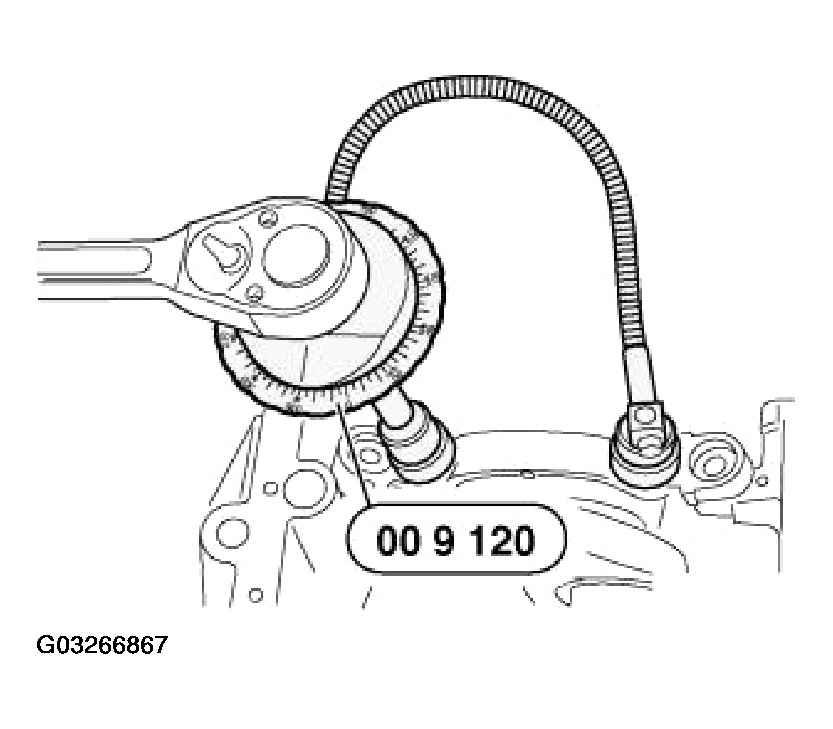

    Fig 8: Tightening All Screws On Main Bearing Caps With Special Tool 00 9 120
    G03266867Courtesy of BMW OF NORTH AMERICA, INC.

Remove main bearing cap.

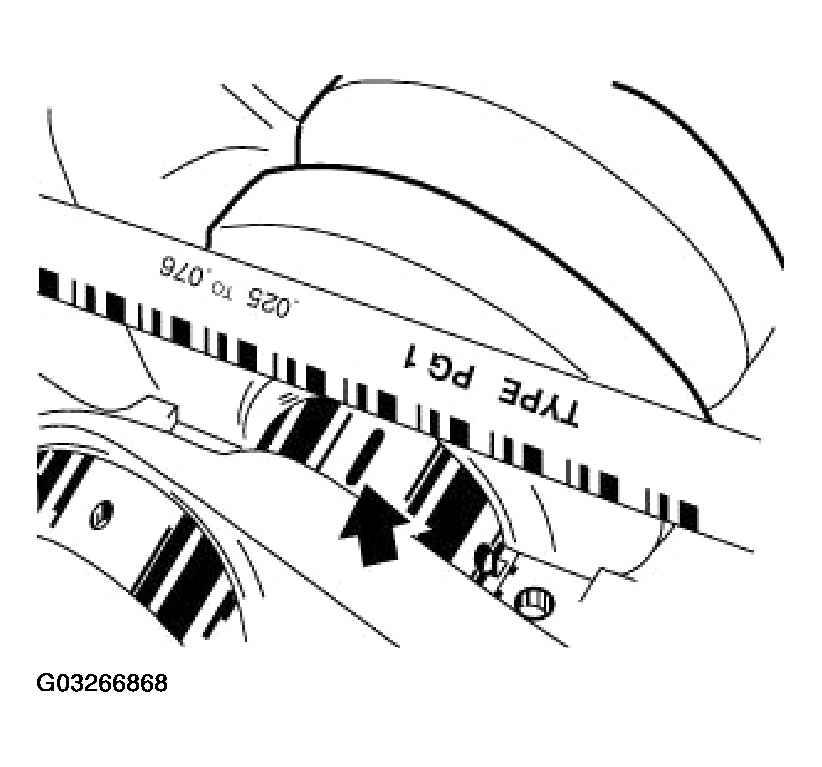

Read off main bearing play at width of flattened plastic thread with assistance of measurement scale.

Main bearing play.

NOTE: Always replace main bearing bolts of main bearing caps with new bolts.
Do not wash off bolt coating.
No oil is permitted in the blind bores! (Danger of cracking).

Tightening specifications for main bearing:

  1. Tighten all screws on main bearing cover with jointing torque.
  2. Unfasten screws on main bearing cover.
  3. Strike back and front of crankshaft with plastic hammer to center guide bearing (do not damage crankshaft).

    Check axial play.

    Check guide bearing shell, crankshaft and crankcase if necessary.

  4. Tighten screws of main bearing cover 5 with jointing torque.
  5. Tightening torque, see ENGINE - TIGHTENING TORQUES .

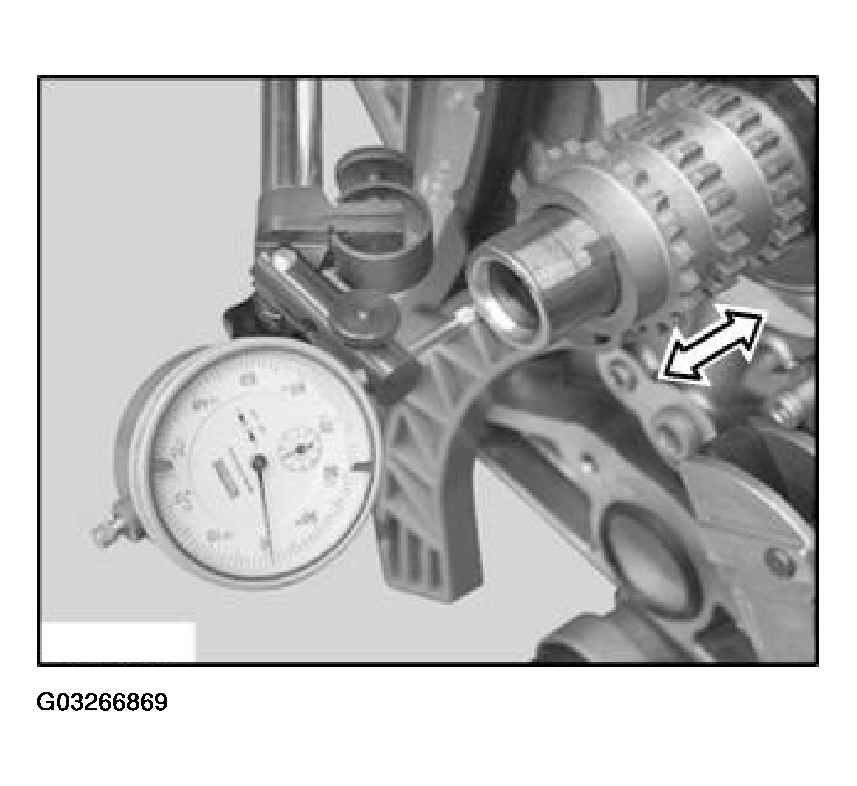

    Fig 10: Checking Guide Bearing Shell, Crankshaft And Crankcase
    G03266869Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down all screws on main bearing caps with special tool 00 9 120 and torsion angle.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

Tighten down thread support bushings (2).

Tightening torque, see ENGINE - TIGHTENING TORQUES .

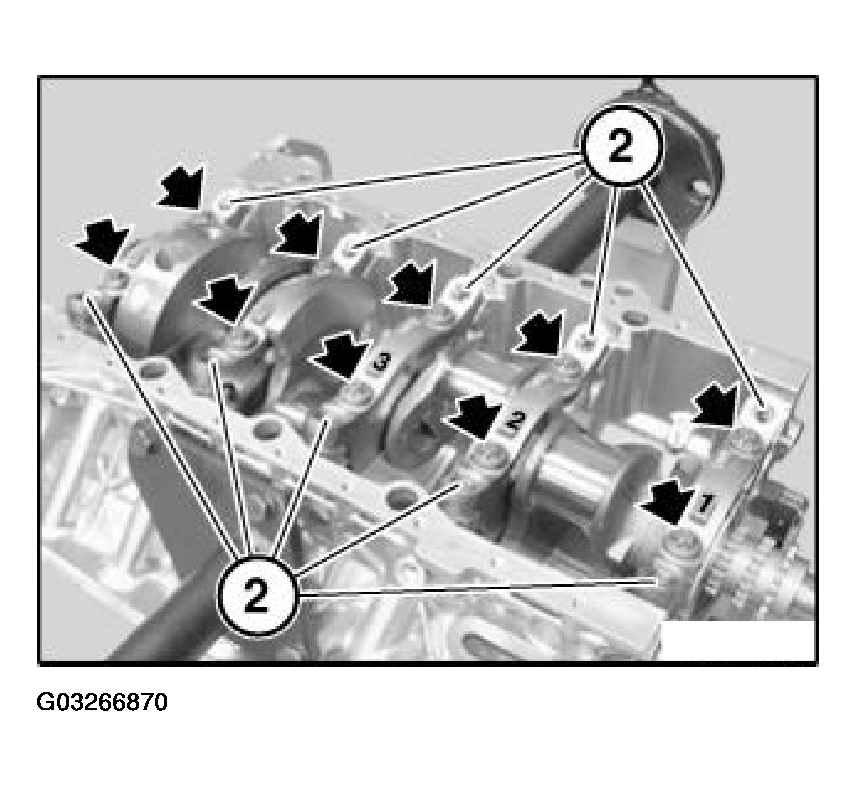

Fig 11: Tightening Thread Support Bushings
G03266870Courtesy of BMW OF NORTH AMERICA, INC.

Replace flanged head screws (1) and tighten down.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

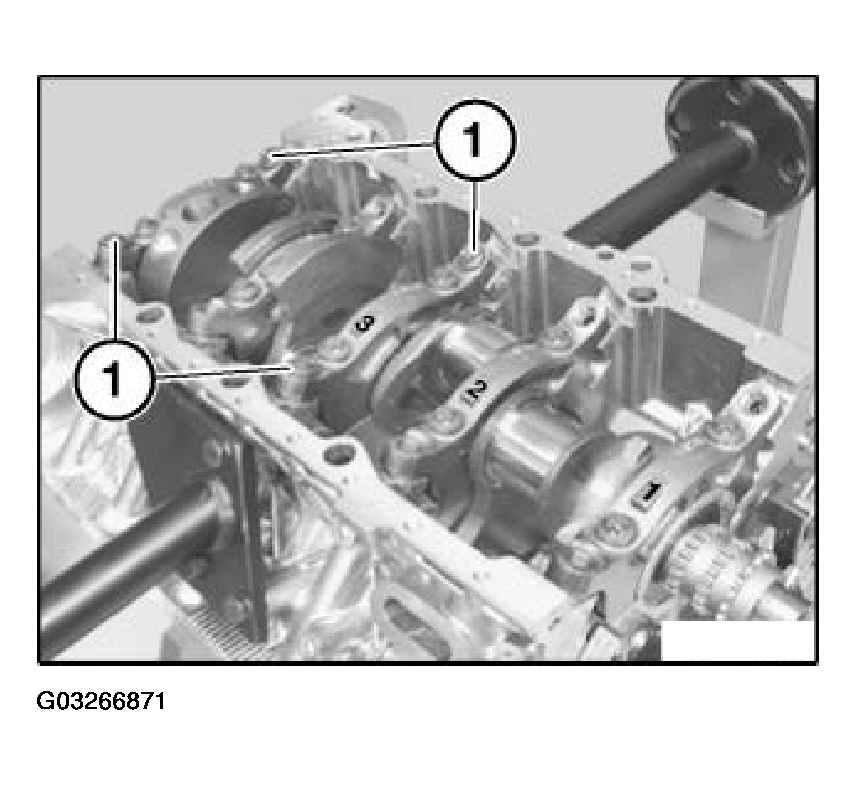

Fig 12: Tightening Flanged Head Screws
G03266871Courtesy of BMW OF NORTH AMERICA, INC.
