11 21 500 Replacing crankshaft (N62/N62TU)

WARNING: This page is about a different variant/trim than selected.

REPLACING CRANKSHAFT PREPARATORY TASKS (N62/N62TU) OPERATION

Operation:
Remove engine (as necessary)
Remove cylinder head (cylinder bank 1 to 4)
Remove cylinder head (cylinder bank 5 to 8)
Remove hub for vibration damper
Removing lower timing case cover
Removing oil pan
Remove oil pump
Removing piston
Remove flywheel

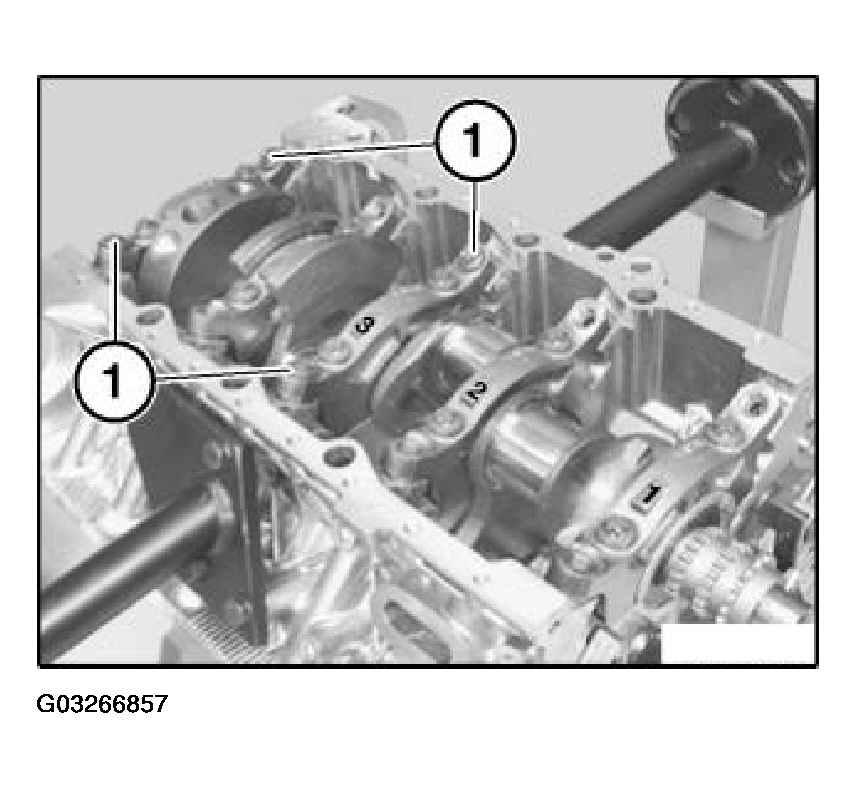

Release main bearing inclined screw connection (1).

Installation:

Fig 1: Releasing Main Bearing Inclined Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

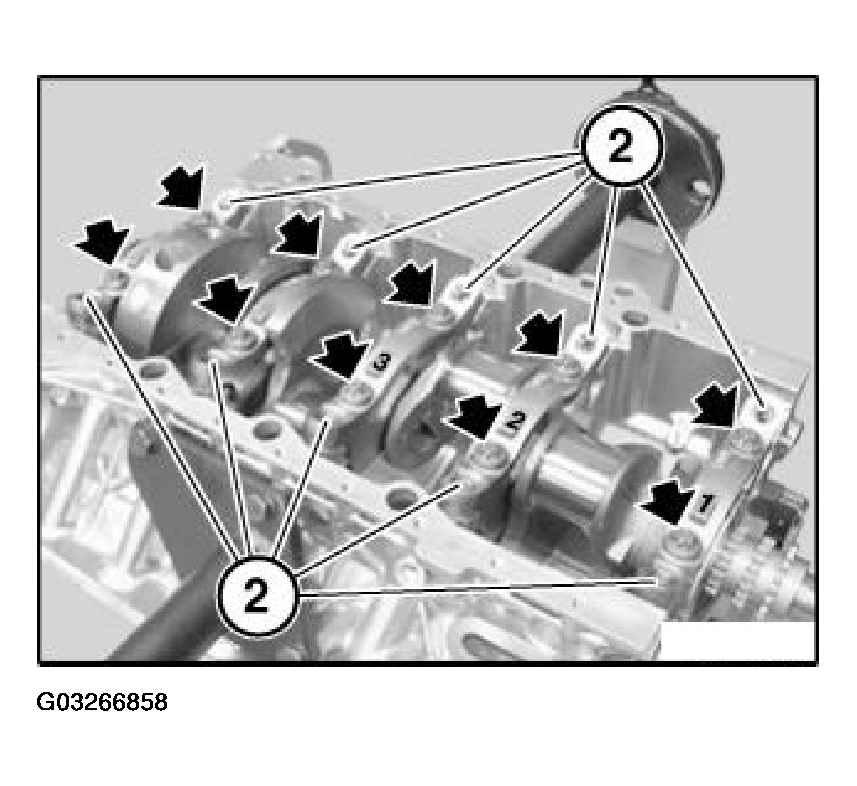

Release spacer bolt (2).

Release main bearing screws.

Fig 2: Removing Spacer Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

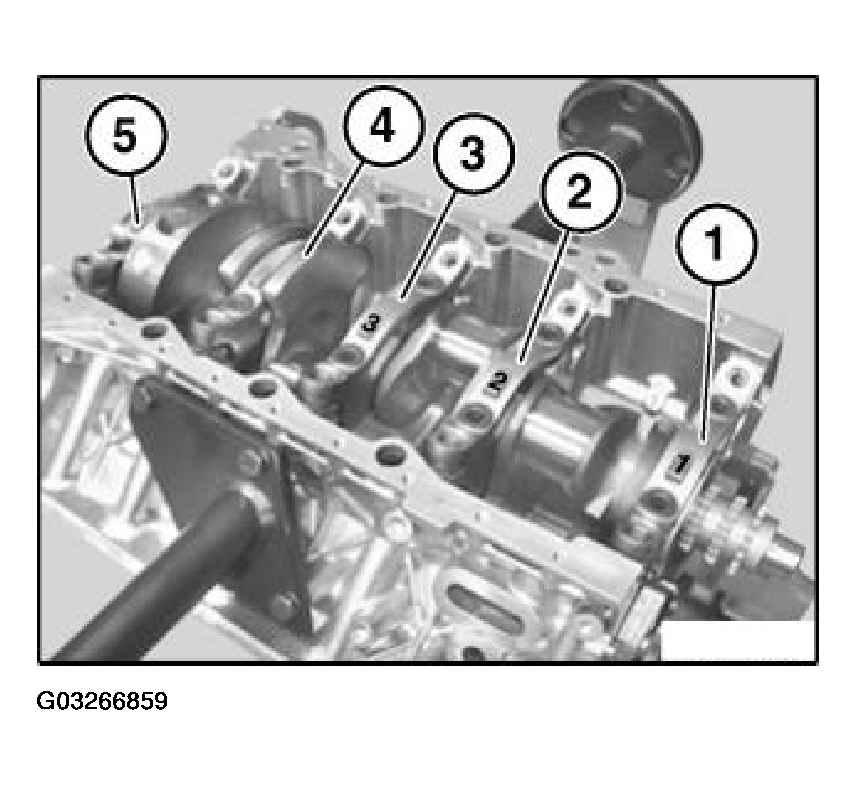

Remove main bearing caps 1 to 5.

Lever out crankshaft.

Fig 3: Removing Main Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

Replace main crankshaft bearing shells.

Replace conrod bearing shells.
