51 24 110 Removing and installing/replacing lock for rear lid upper section

1. Remove rear window wiper motor. Refer to 61 62 060 REMOVING AND INSTALLING / REPLACING REAR WINDOW WIPER MOTOR .

Disconnect plug connection (2).

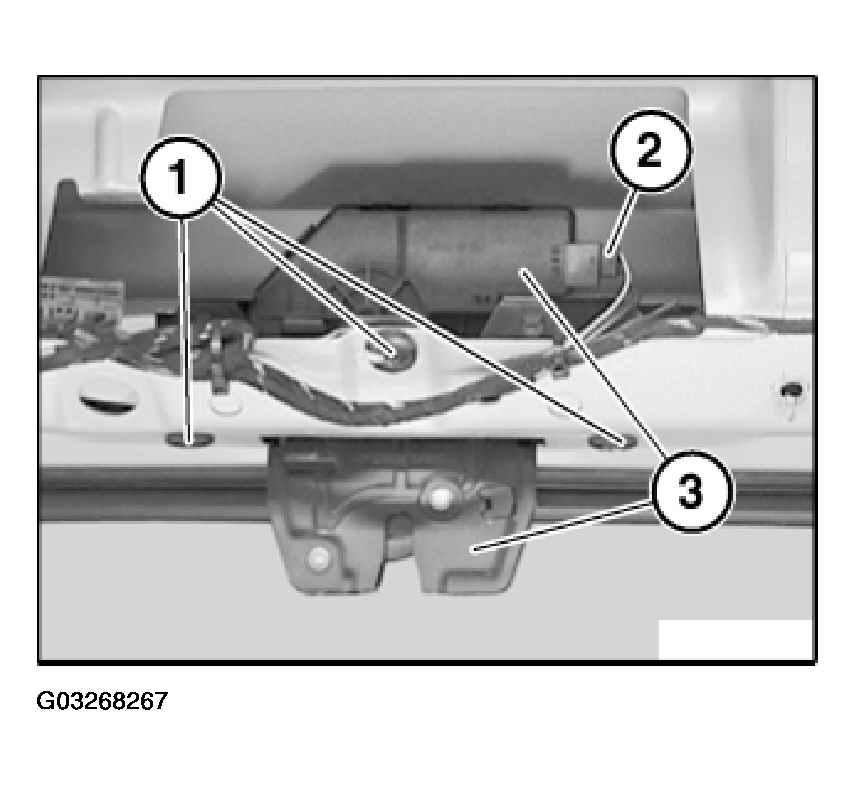

Fig 1: Removing Rear Lid Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove rear lid lock (3).

Unclip emergency actuating mechanism (1) from rear lid lock (2).

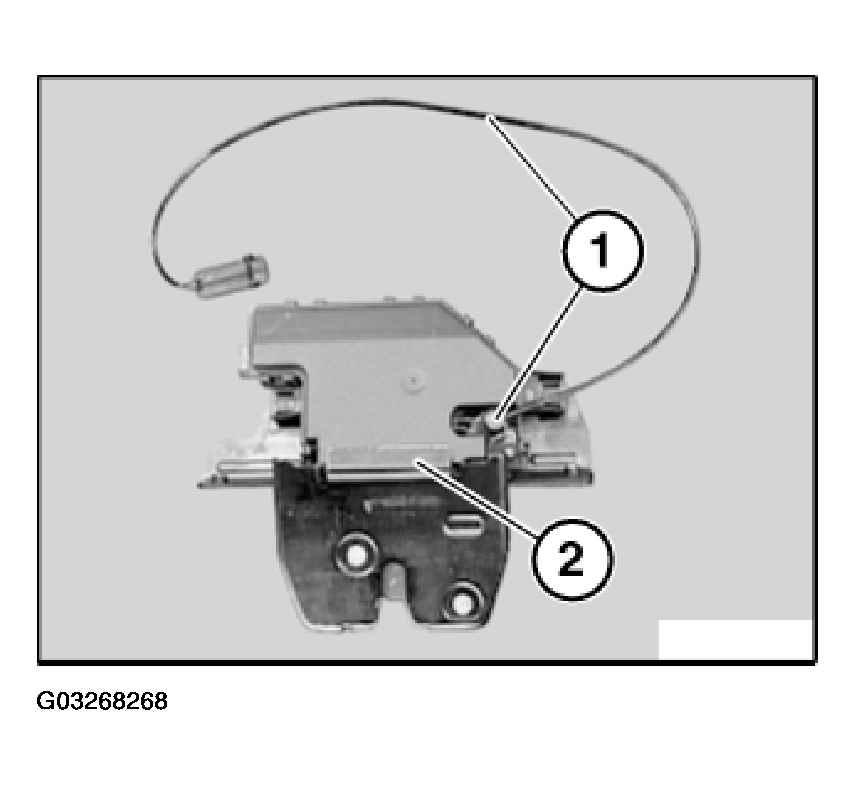

Fig 2: Identifying Emergency Actuating Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust rear lid latch (striker) for upper section of rear lid lock. Refer to 41 62 030 Fitting rear lid upper section .
