61 62 060 Removing and installing / replacing rear window wiper motor
Remove panel for rear lid upper section at bottom.
Remove wiper arm for rear wiper.
NOTE:
Secure rear window wiper motor against falling out.

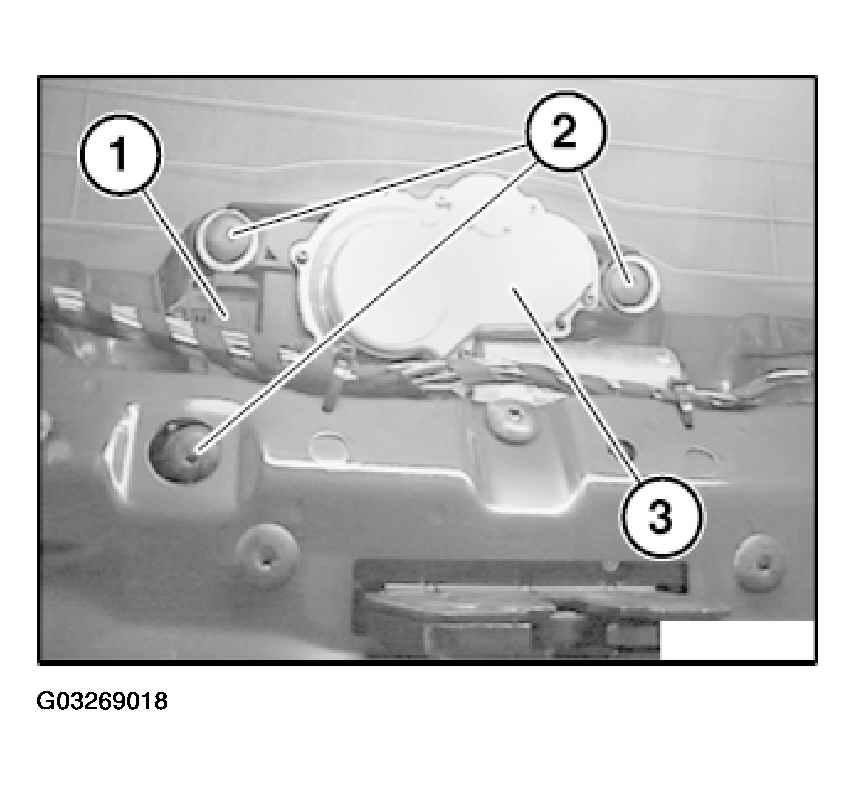

Disconnect plug connection (1) and release screws (2).
Remove rear window wiper motor (3).
Installation:
Insert screws (2) and tighten until hand-tight.
Center rear window wiper motor (3) and tighten down screws (2).
Observe tightening torque, 61 62 1AZ.
Installation:

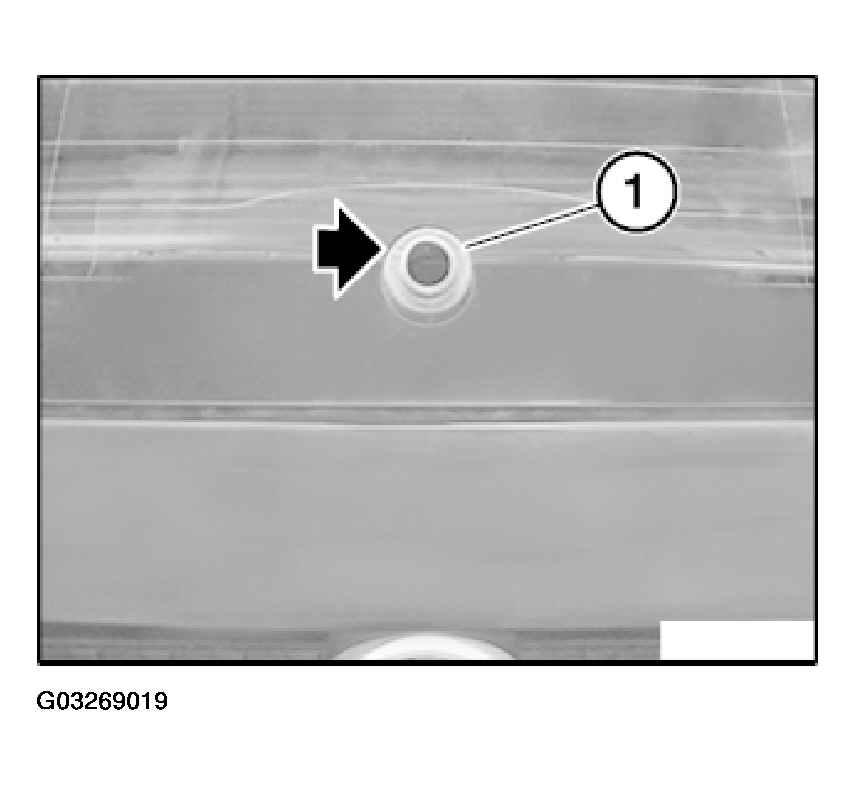

- Replace rubber grommet (1).
- Note installation position of rubber grommet (1) (marking must be in horizontal position).
