51 16 000 Removing And Installing/Replacing Mirror On Left Or Right Front Door

  1. Remove speaker in window frame of front door. Refer to 65 13 070 REMOVING AND INSTALLING/REPLACING SPEAKER (ON WINDOW FRAME, LEFT OR RIGHT) .

Unfasten cable clip (1).

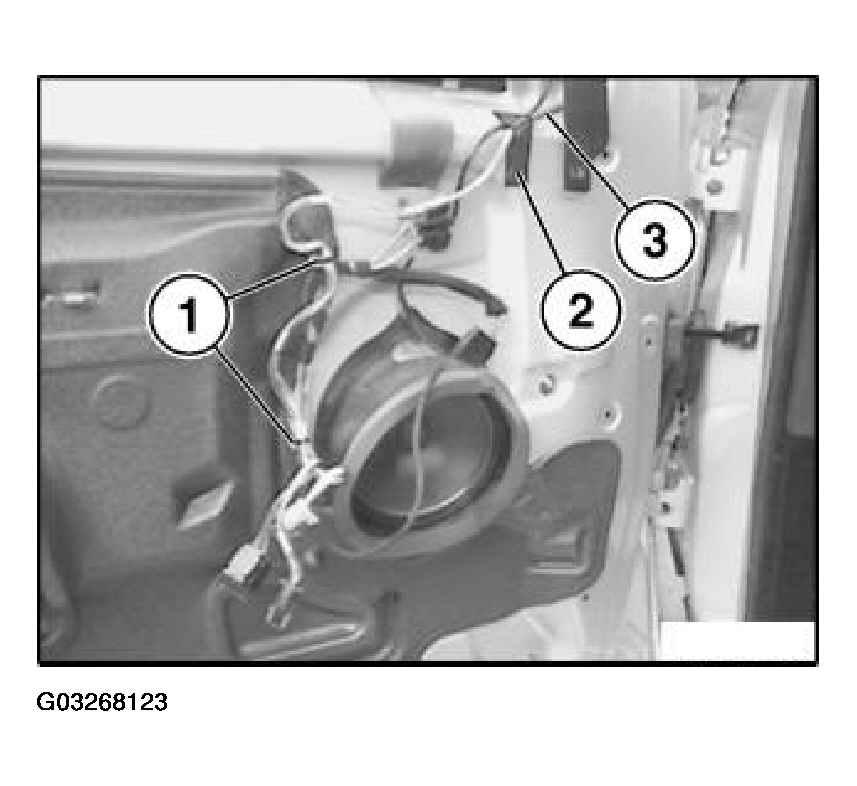

Fig 1: Pulling Off Adhesive Tape
G03268123Courtesy of BMW OF NORTH AMERICA, INC.

Pull off adhesive tape (2) and expose wire (3).

Lever out cover (1) and release screw underneath.

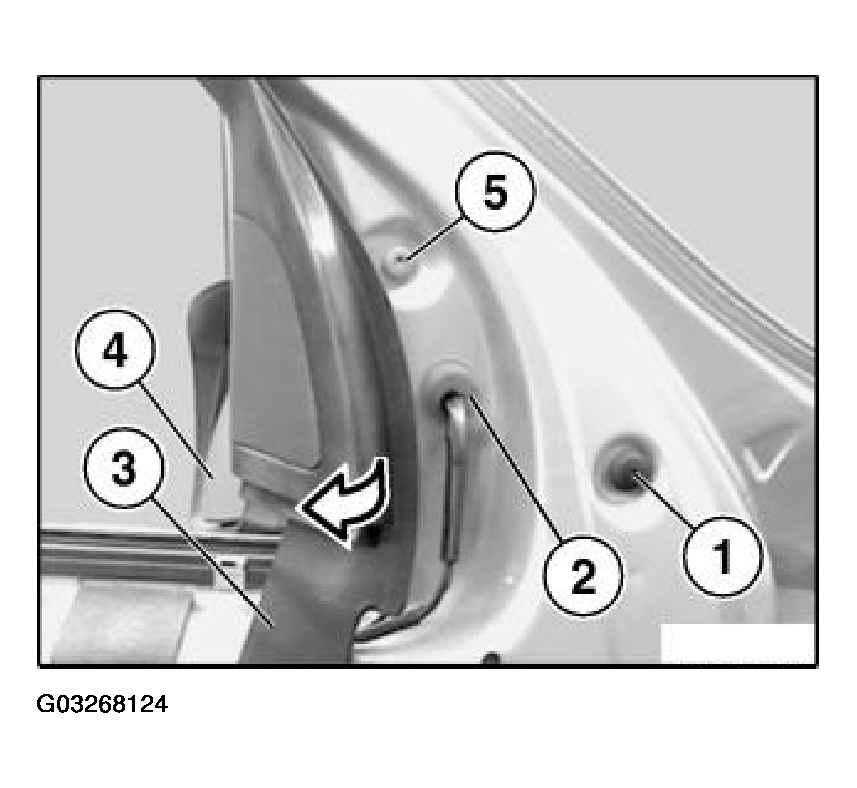

Fig 2: Detaching Mirror
G03268124Courtesy of BMW OF NORTH AMERICA, INC.

Pull cover (3) to one side.

Release screw (5) and detach mirror (4) with cable (2).

Installation:

Tightening torque 51 16 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

Install mirror base with seal (1) and sound insulation (2).

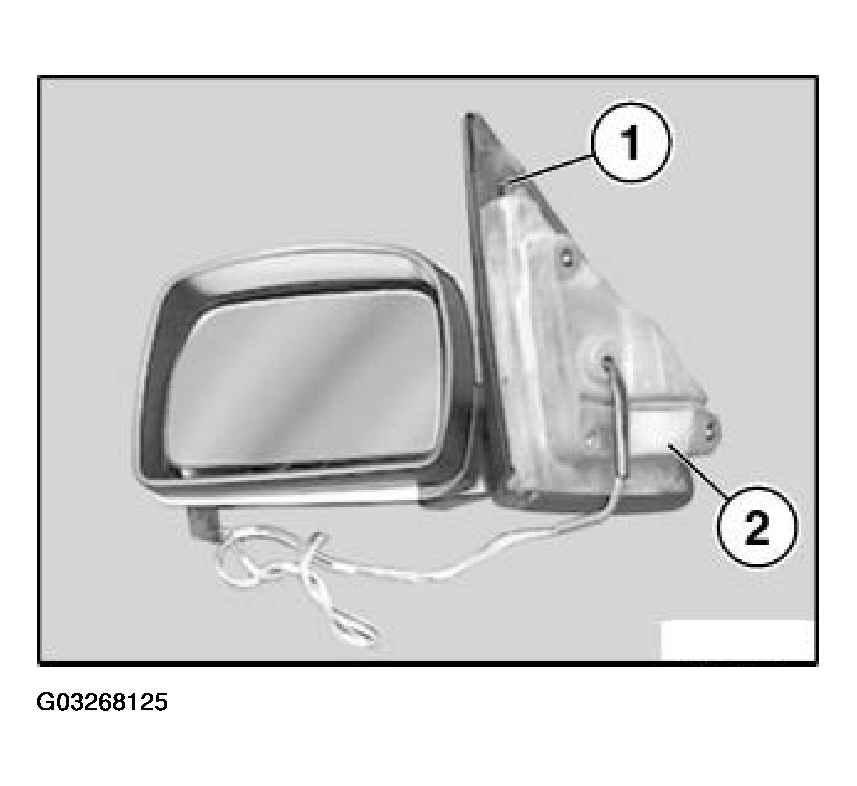

Fig 3: Installing Mirror Base With Seal
G03268125Courtesy of BMW OF NORTH AMERICA, INC.

Carry out function check.
