65 13 070 Removing and installing/replacing speaker (on window frame, left or right)

Remove front left or right door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Gently press trim (1) to one side.

Disconnect plug connection (2).

Release screw (3) and remove speaker (4).

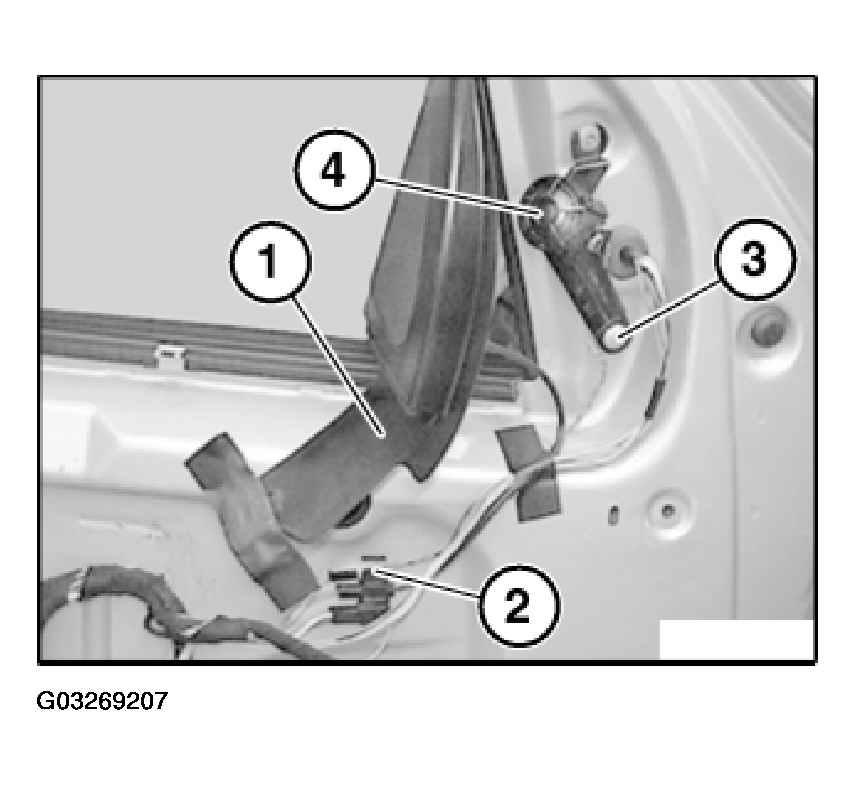

Fig 1: Identifying Speaker Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.
