54 10 200 Removing and installing complete glass tilt sunroof
WARNING: This page is about a different variant/trim than selected.
Necessary preliminary tasks:
- Remove roofliner, refer to 51 44 005 REMOVING AND INSTALLING/REPLACING ROOFLINER (VERSION WITHOUT GLASS TILT SUNROOF) .
- Remove glass tilt sunroof lid, refer to 54 10 100 REMOVING AND INSTALLING GLASS TILT SUNROOF LID .
IMPORTANT:
A second person is required to help in removing the glass tilt sunroof. Cover door sill with protective covers (risk of damage). Do not damage any surrounding parts when removing slide/tilt sunroof (5).

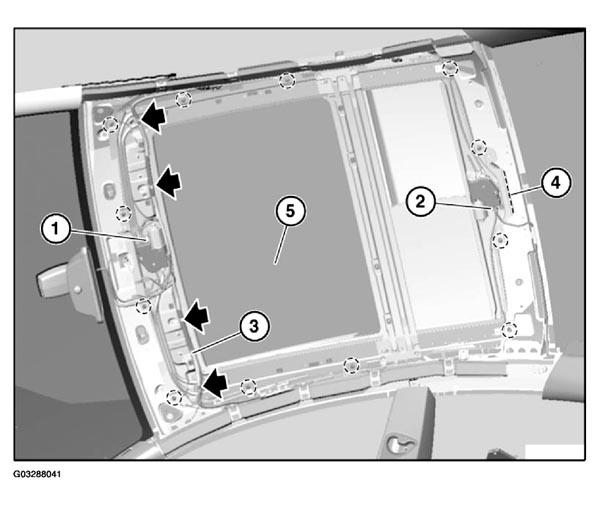

- Unlock and disconnect plug for drive unit for floating roofliner (1) and glass tilt sunroof lid (2).
- Unclip wiring harness (3).
- Glass tilt sunroof is inserted into body in area (4) and thus secured against falling out.
- Secure glass tilt sunroof in front area against falling out by supporting it.
- Release screws in marked area from rear towards front.
Tightening torque, refer to 54 10 6AZ in SLIDE/TILT ROOF AND CONVERTIBLE TOP - TIGHTENING TORQUES - E63 .
- Remove slide/tilt sunroof (5) completely (through front door).
Installation:
Do not crush any cables when fitting the glass slide/tilt sunroof.
Initialise glass slide/tilt sunroof, refer to 54 0 ... NOTES ON PANORAMA GLASS ROOF (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
