54 10 100 Removing and installing glass tilt sunroof lid

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: The following steps must be carried out on the opened glass sunroof panel as otherwise the Torx screws will not be completely released.

This also facilitates access for removal.

Open floating roofliner fully.

Make sure that grease on the rails and the mechanism does not come into contact with the roofliner.

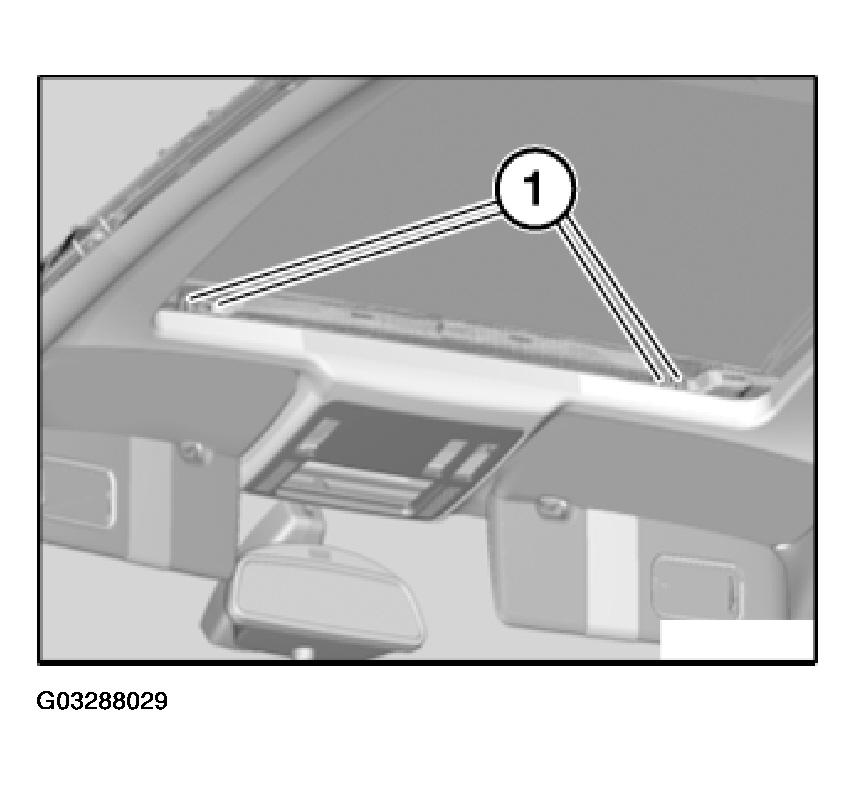

Remove and dispose of the Torx screws (1) securing the glass panel to the front holders.

Fig 1: Removing Torx Screws Securing Glass Panel To Front Holders

Courtesy of BMW OF NORTH AMERICA, INC.

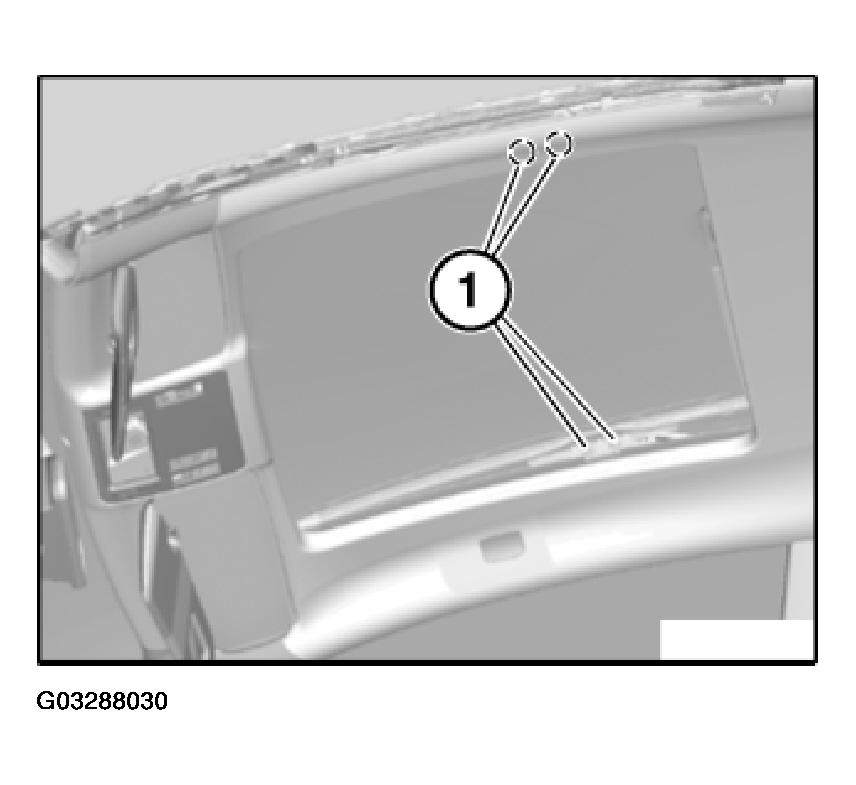

Remove and dispose of the Torx screws (1) securing the glass panel to the front lifting mechanism.

IMPORTANT: A second person is required to help in removing and installing the glass tilt sunroof lid!

Fig 2: Removing Torx Screws Securing Glass Panel To Front Lifting Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

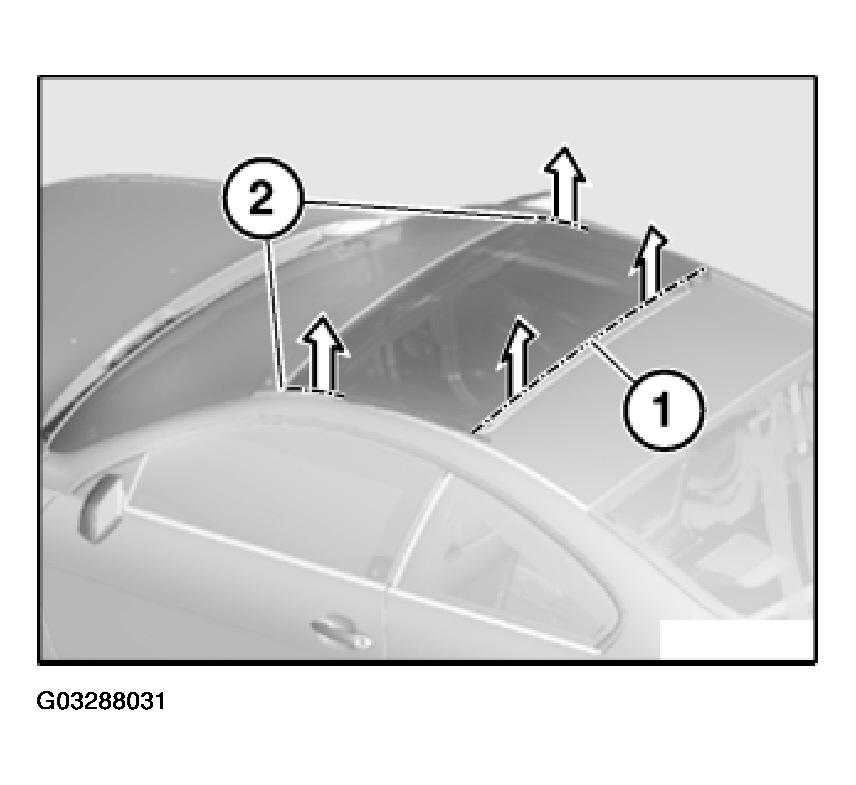

Raise sunroof lid at rear (1) uniformly until access from side (2) is possible.

Fig 3: Raising Sunroof Lid At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out sunroof lid.

Installation:

Tape off installation area on left and right at roof aperture with fabric adhesive tape.

Insert sunroof lid carefully and uniformly.

Tighten Torx screws only to such an extent that sunroof lid can still just be adjusted.

Close slide/tilt sunroof lid, check for correct alignment and adjust if necessary, refer to 54 10 004 ADJUSTING GLASS TILT SUNROOF LID .

Tighten down Torx screws.
