54 10 120 Replacing seal for glass slide/tilt sunroof lid

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

NOTE: Follow repair instructions for bonded seals on glass slide/tilt sunroof, refer to 54 0 ... REPAIR INSTRUCTIONS FOR BONDED SEALS .

Detach seal (1) for glass sunroof from body.

Installation:

Clean bonding surface with adhesive remover.

Partially pull off protective film from adhesive tape (2).

Press seal (1) without stretching (squashing).

Stick on seal (1) in stages.

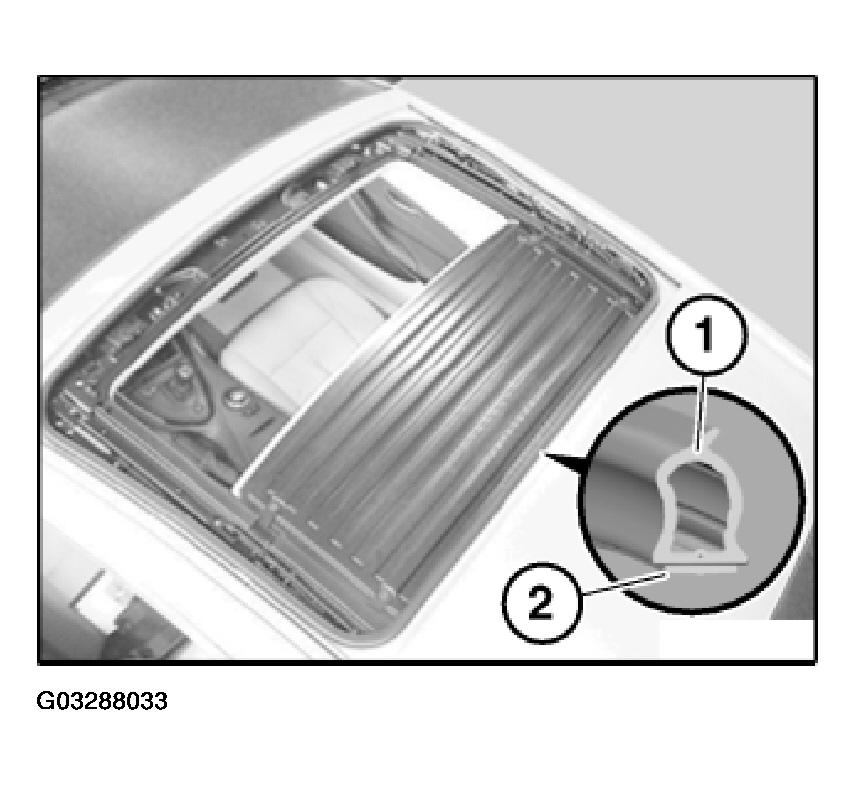

Fig 1: Detaching Seal For Glass Sunroof From Body

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not touch bonding surface. Surface temperature are equal to or greater than 20°C. Incorrect bonding of the seal will result in leakage.
