61 31 115 Replacing rocker switch for power window operation

Special tools required:

Driver's and passenger sides:

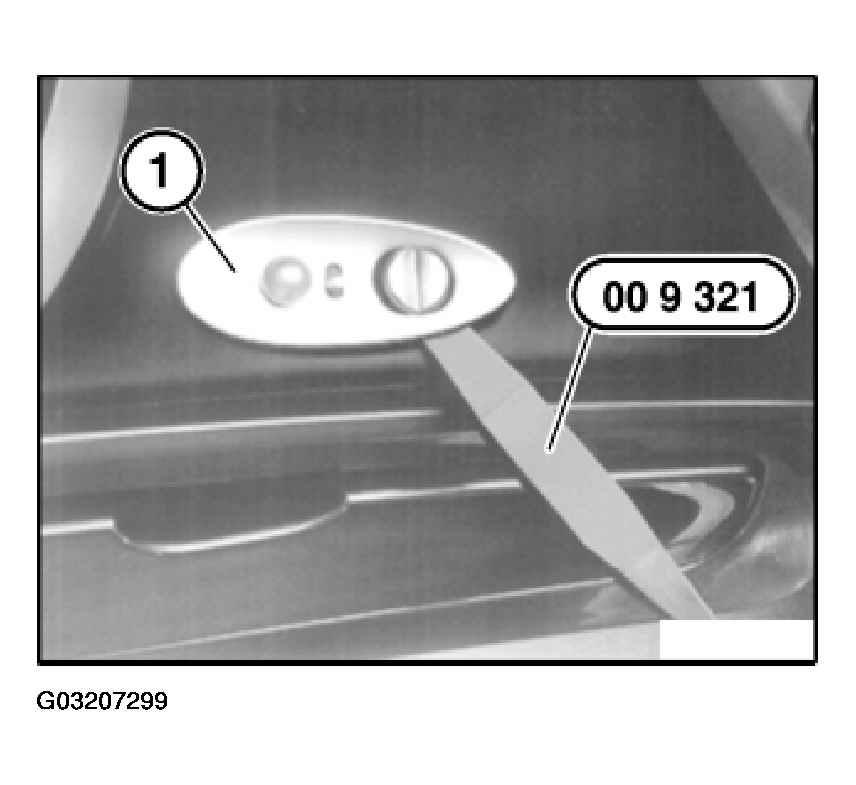

Lever out switch unit (1) with special tool 00 9 321 and remove.

Fig 1: Levering Out Switch Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection(s).

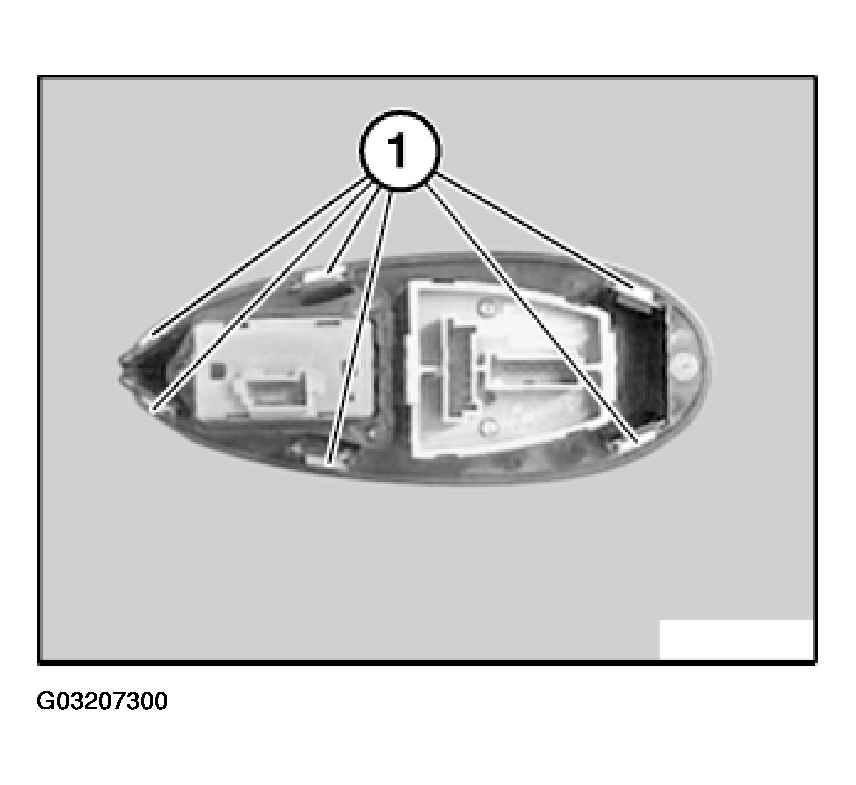

NOTE: Retaining clips (1) may catch under door trim panel while switch unit is levered out.

Fig 2: Locating Retaining Clips

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIG .

Driver's side only:

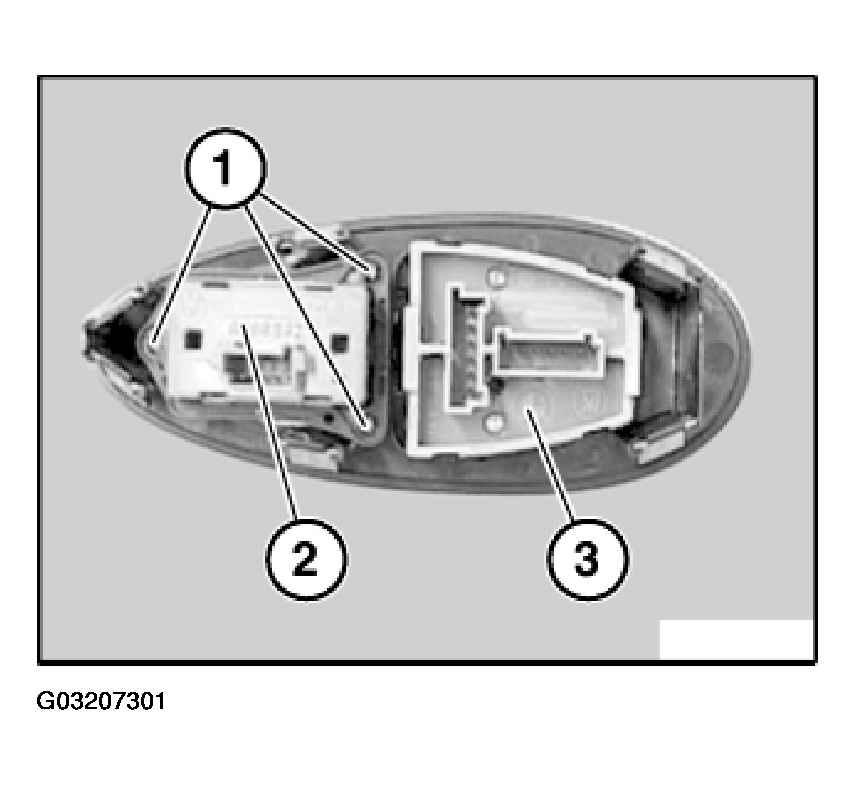

Loosen screws (1).

Disconnect toggle switch for window operation (2) from switch for door mirror (3).

Fig 3: Disconnecting Toggle Switch

Courtesy of BMW OF NORTH AMERICA, INC.
