64 22 161 Removing and installing/replacing fresh-air grille center

Special tools required:

• 00 9 340

Remove entire instrument cluster. Refer to 62 21 000 REMOVING AND INSTALLING ENTIRE INSTRUMENT CLUSTER .

Unscrew bolt (1).

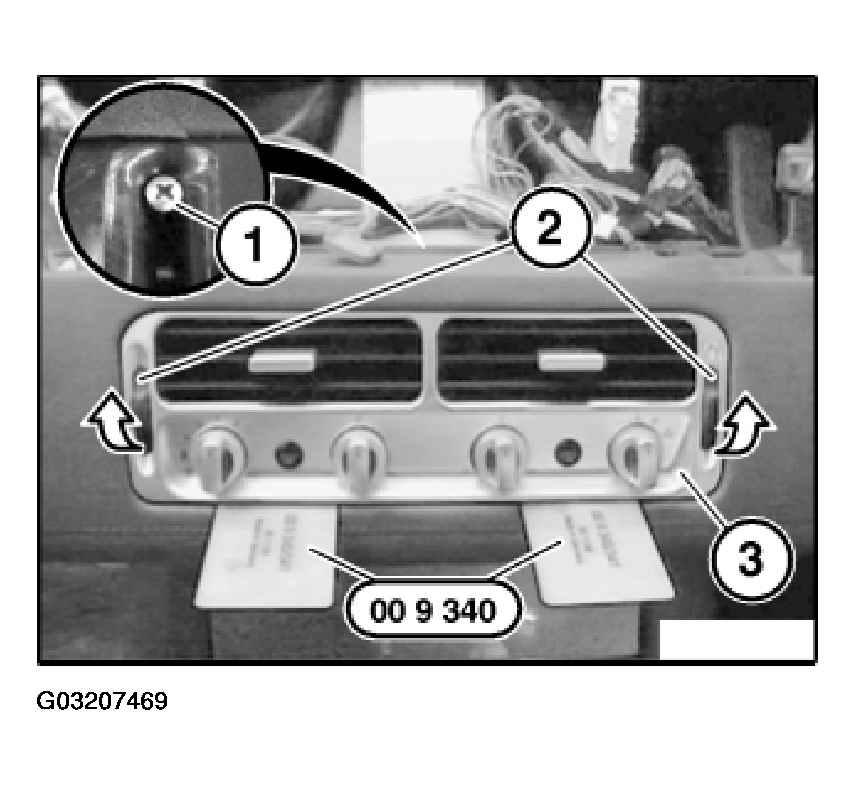

Fig 1: Removing Fresh Air Grill Center

Courtesy of BMW OF NORTH AMERICA, INC.

Turn adjusting wheels (2) in direction of arrow as far as they will go.

Lever out fresh air grill center (3) with special tool 00 9 340 and remove.
