62 21 000 Removing and installing entire instrument cluster

Remove trim for instrument panel. Refer to 61 31 028 REMOVING AND INSTALLING/REPLACING LIGHT SWITCH .

Remove cover for passenger airbag. Refer to 72 12 000 Removing and installing/replacing airbag module on passenger side .

Loosen screws (1).

Remove instrument cluster (2).

Disconnect plug connection.

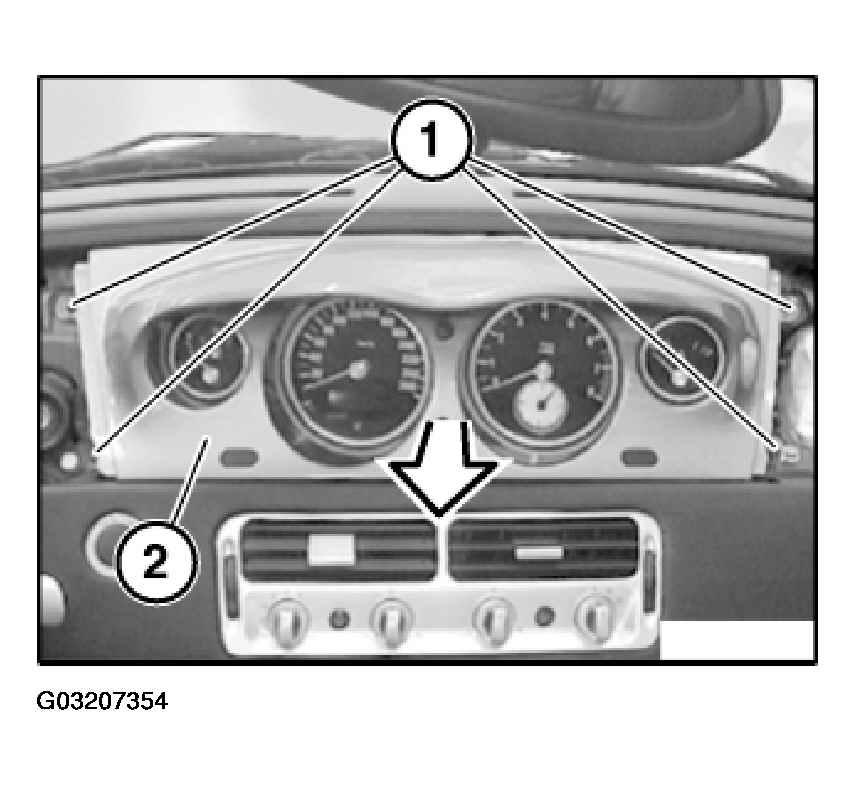

Fig 1: Removing Instrument Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
