64 22 135 Removing and installing/replacing left fresh-air grill

Remove cover for instrument panel. Refer to 61 31 028 REMOVING AND INSTALLING/REPLACING LIGHT SWITCH .

Loosen screws (1).

Pull out fresh air grill (2).

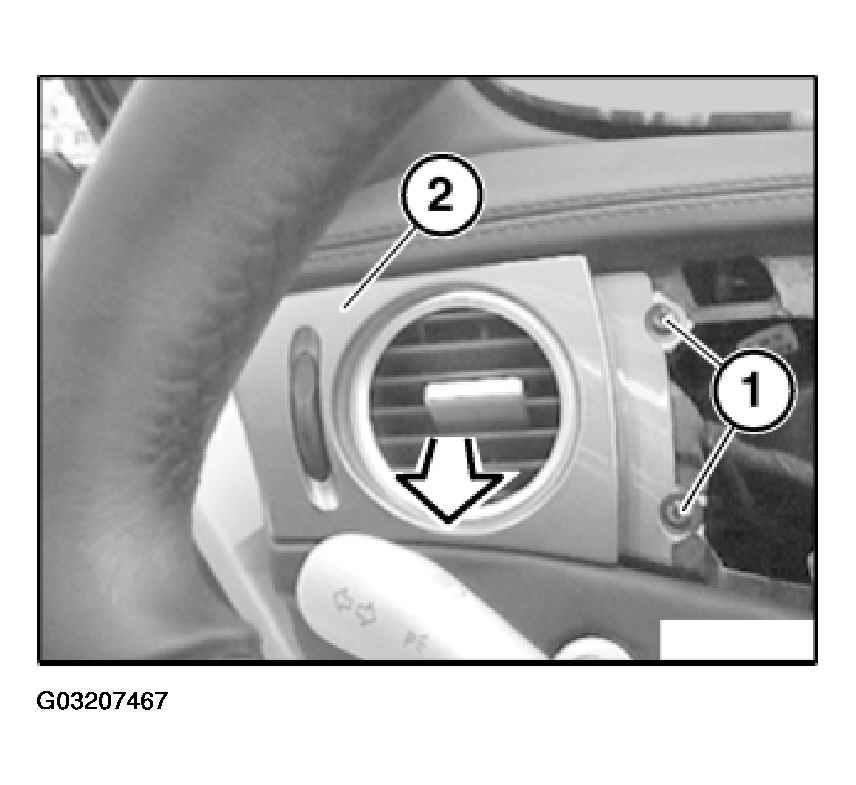

Fig 1: Removing Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed retainer (1) into instrument panel trim.

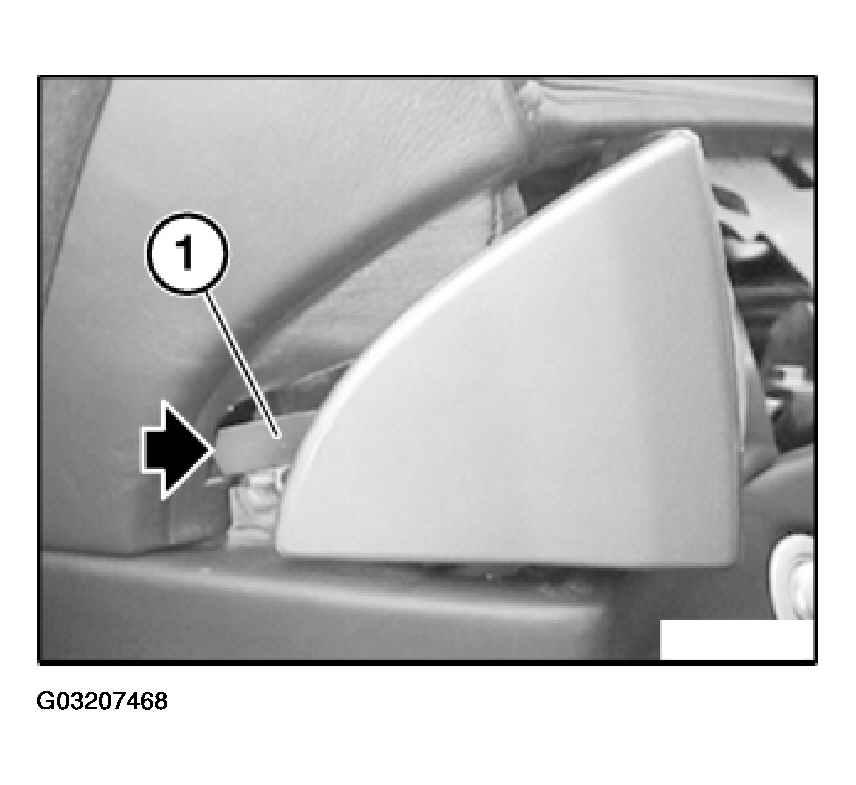

Fig 2: Installing Retainer Into Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.
