61 31 028 Removing and installing/replacing light switch

Special tools required:

• 00 9 317

Lever out cover for instrument panel (1) with special tool 00 9 317 and remove.

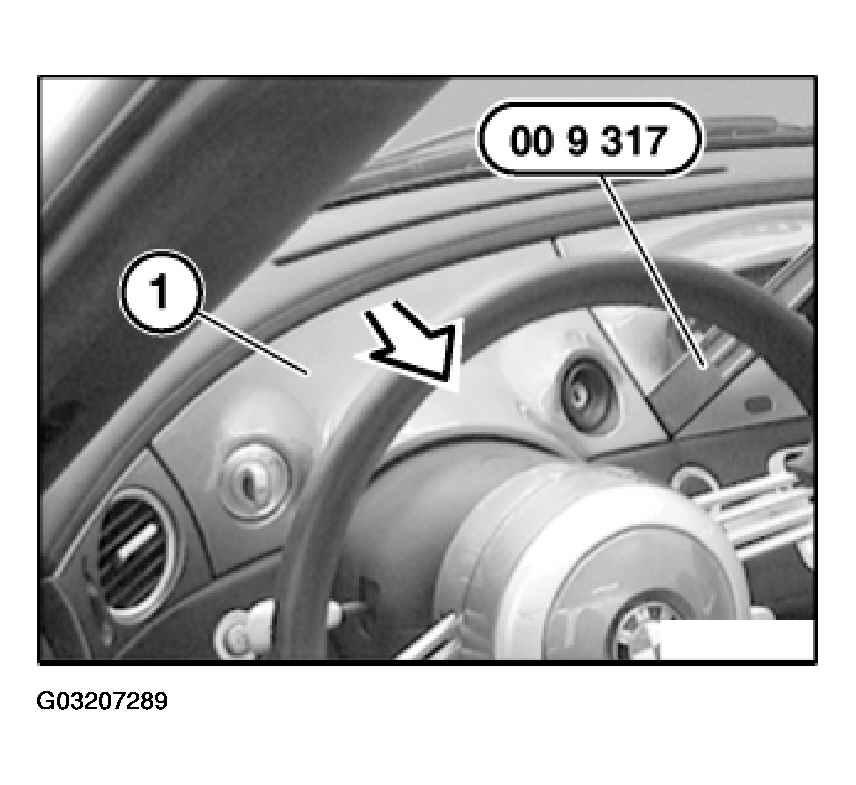

Fig 1: Levering Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection.

Remove knob for light switch (1).

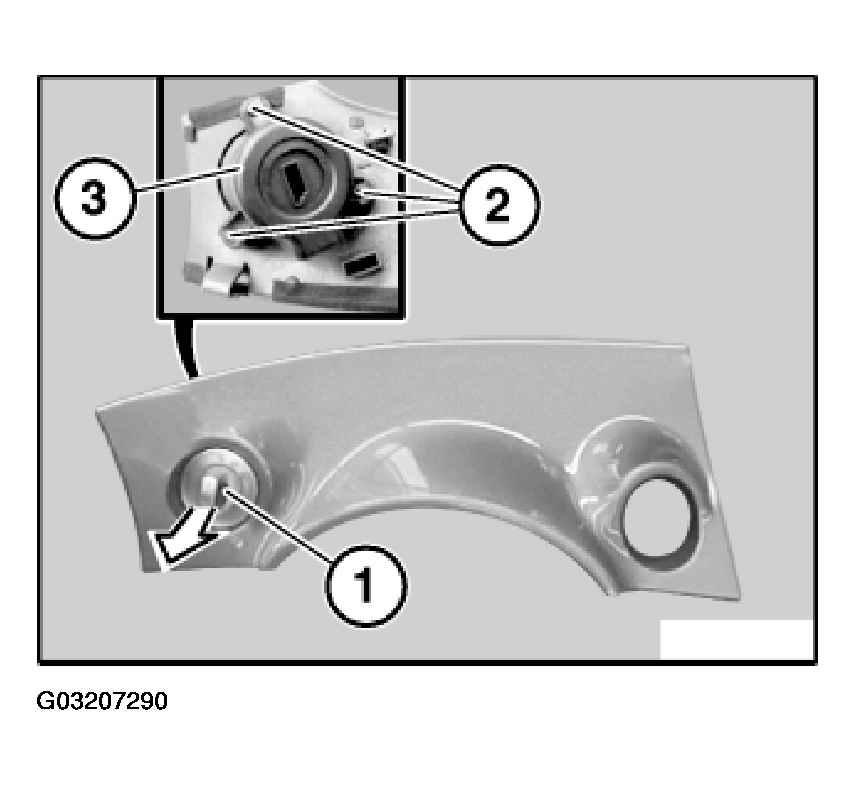

Fig 2: Removing Knob For Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove cover (3).

Remove light switch unit (1).

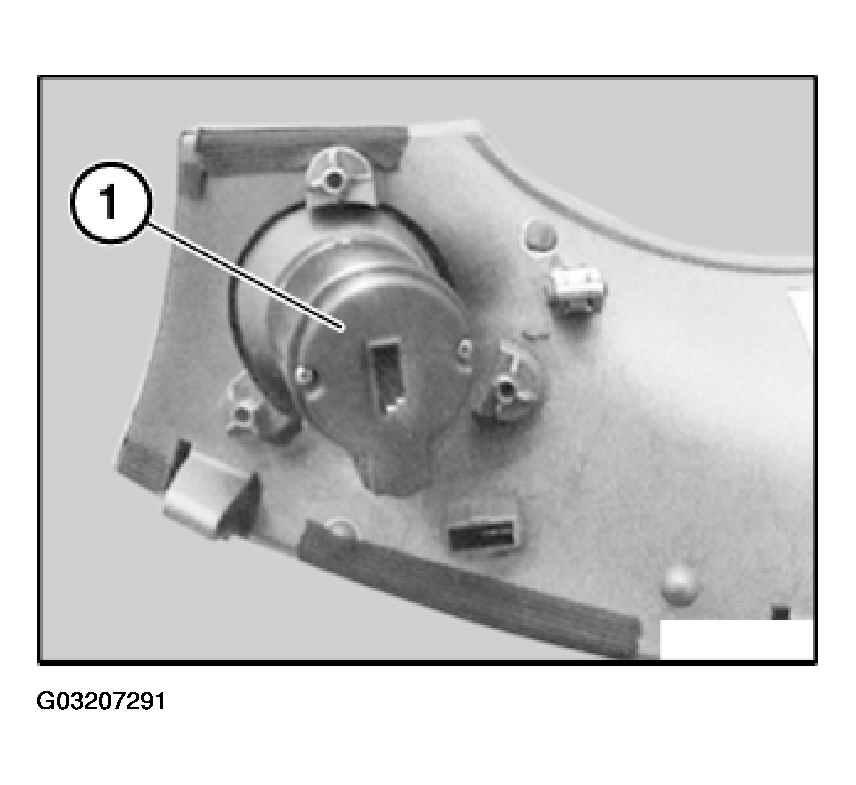

Fig 3: Removing Light Switch Unit

Courtesy of BMW OF NORTH AMERICA, INC.
