64 11 748 Removing and installing heater control

Remove center fresh air grill. Refer to 64 22 161 Removing and installing/replacing fresh-air grill center .

CAUTION: Cover trim as shown with fabric adhesive tape (1) to prevent damage to instrument panel trim.

Loosen screws (2).

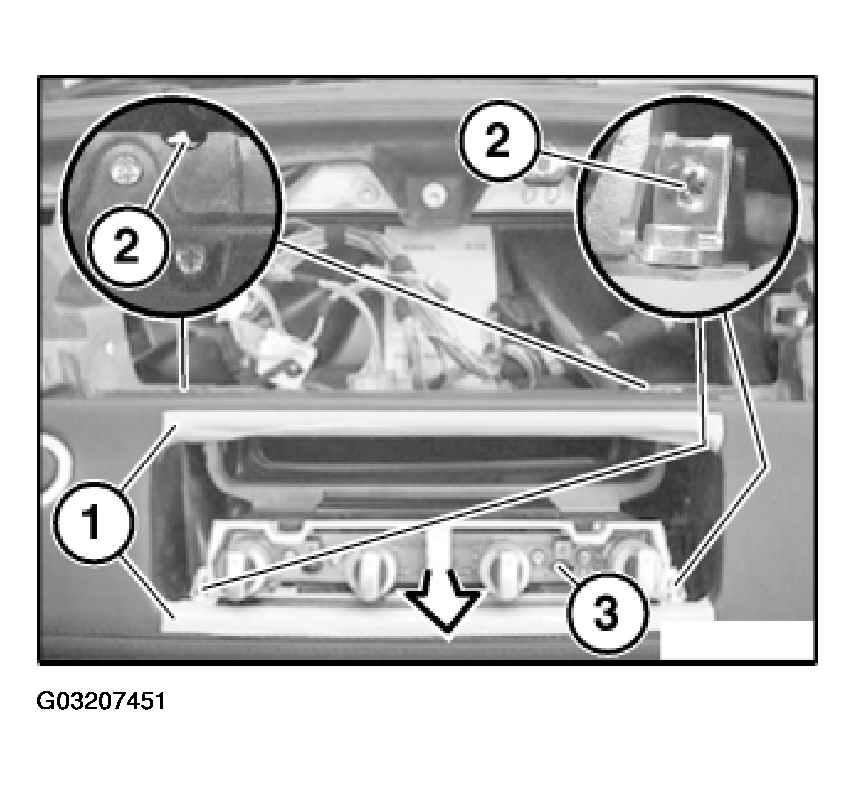

Fig 1: Removing Heating Controls
G03207451Courtesy of BMW OF NORTH AMERICA, INC.

Remove heating controls (3).

Disconnect plug connection.
