62 14 140 Removing and installing/replacing indicator lamp (in instrument cluster, middle)
Remove entire instrument cluster. Refer to 62 21 000 Removing and installing entire instrument cluster .
NOTE:
The procedure for removal and installation/replacement is the same for all indicator lamps and the dimmer switch for instrument lighting.

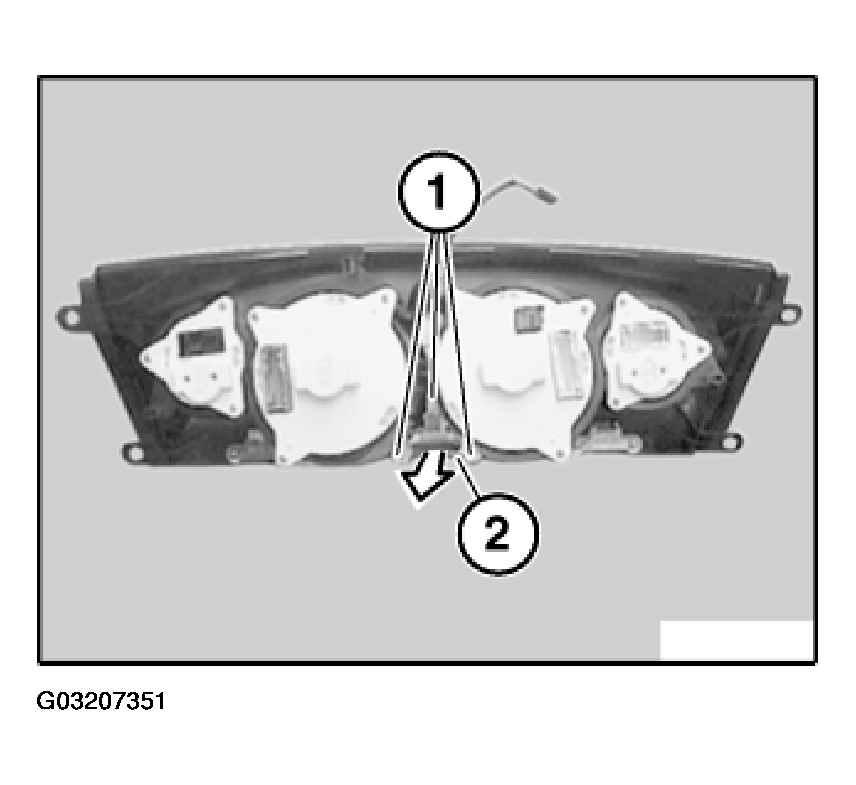

Loosen screws (1).
Remove indicator lamp (2) in direction of arrow.
