51 13 040 Removing and installing/replacing left or right front radiator grill

Lever links (1) with fingers out of catches (2) and remove front grill (3).

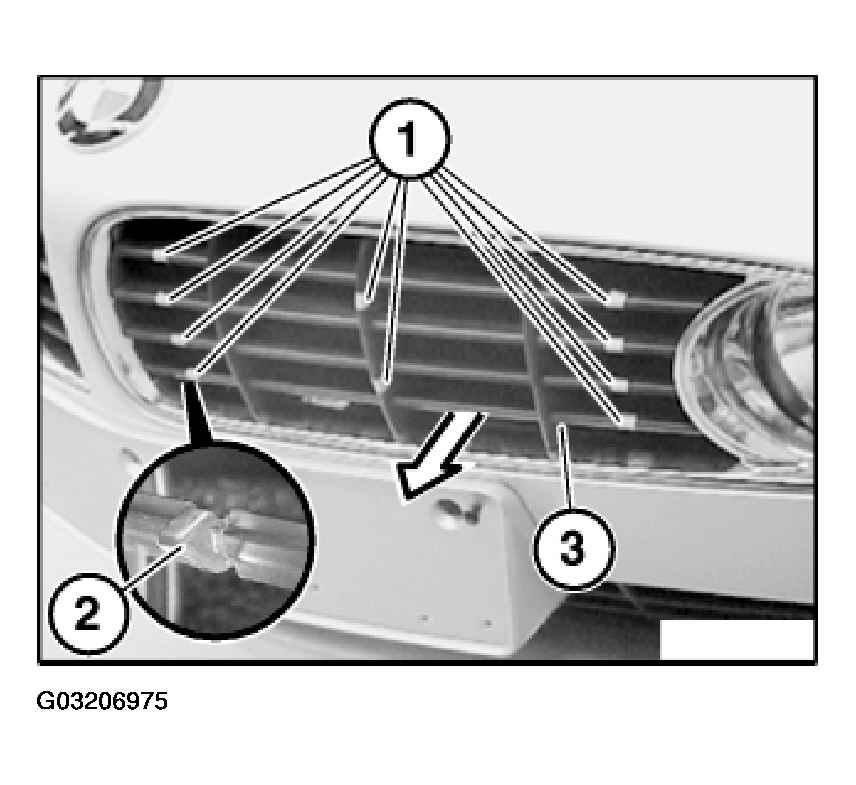

Fig 1: Removing Front Grill

Courtesy of BMW OF NORTH AMERICA, INC.
