51 43 015 Removing and installing/replacing rear left or right side trim panel

Remove entrance cover strip. Refer to 51 47 000 Removing and installing/replacing left or right entrance cover strip .

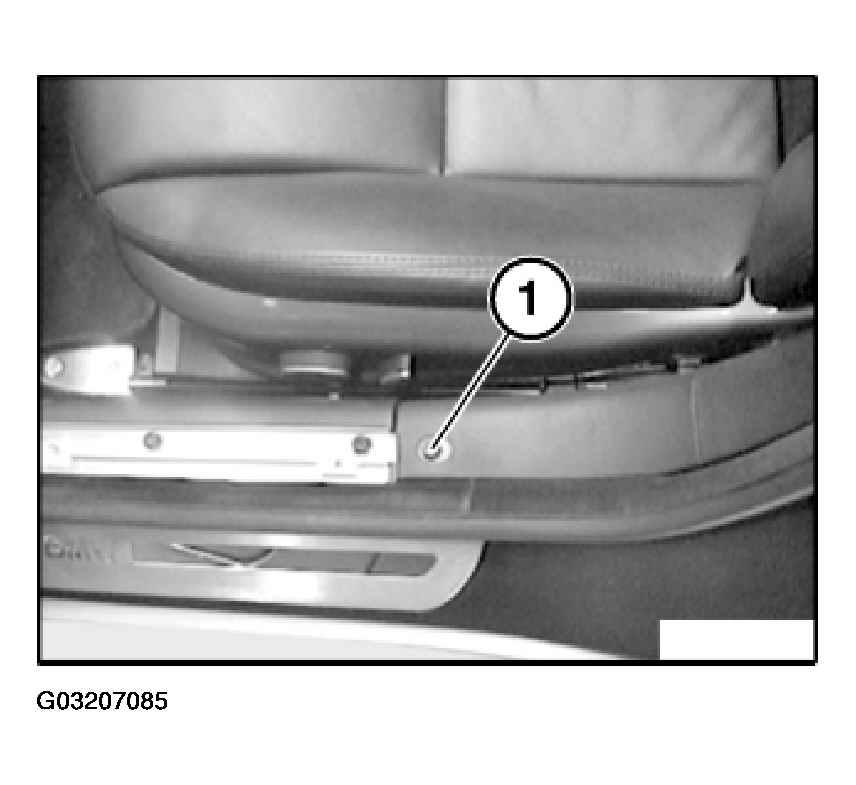

Unscrew bolt (1).

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

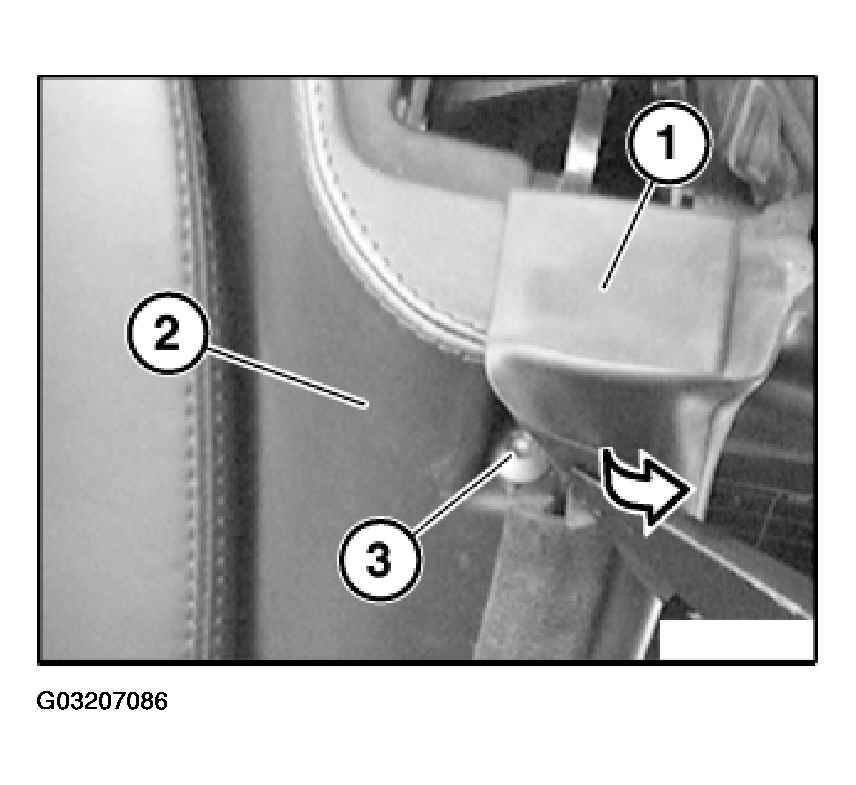

Press rubber cover (1) on B-pillar (2) to one side.

Fig 2: Pressing Rubber Cover To Side

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (3).

Unlock backrest and tilt towards front (refer to Owner's Manual).

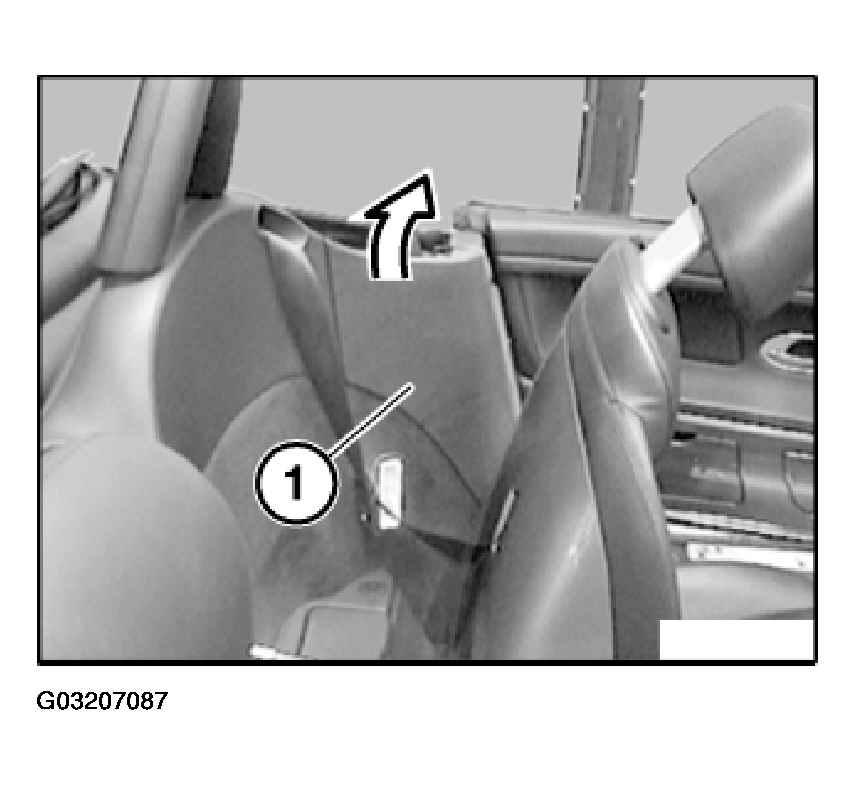

Lever out finishing strip (1) towards top.

Fig 3: Levering Out Finishing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Partially detach door rubber at rear.
