51 47 000 Removing and installing/replacing left or right entrance cover strip

Loosen screws (1).

Remove entrance cover strip (2) towards top.

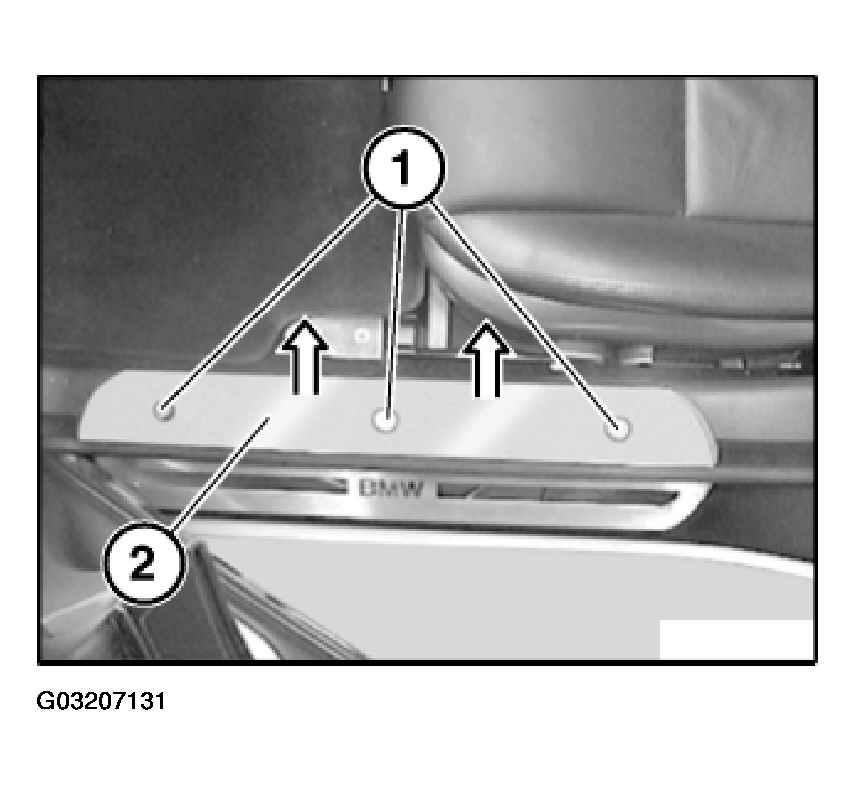

Fig 1: Removing Entrance Cover Strip
G03207131Courtesy of BMW OF NORTH AMERICA, INC.
