51 16 366 Removing and installing right glovebox with housing

Detach side padding in footwell from center console (dual-lock tape).

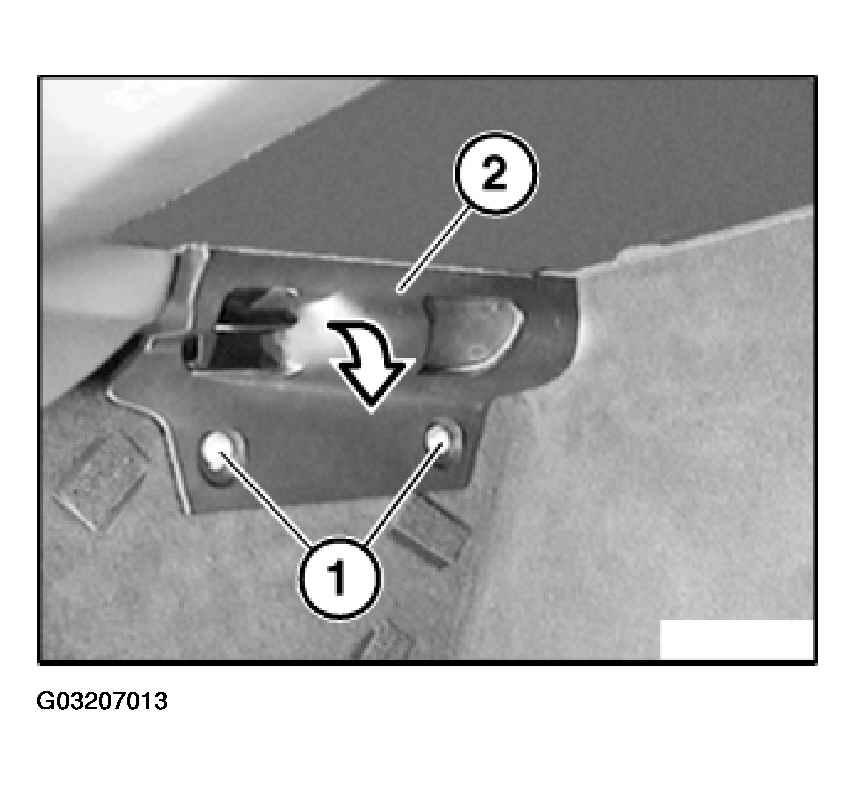

Release screws (1) and remove trim (2) towards bottom.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speaker cover on right. Refer to 51 45 135 Removing and installing/replacing speaker cover on right .

Open glovebox.

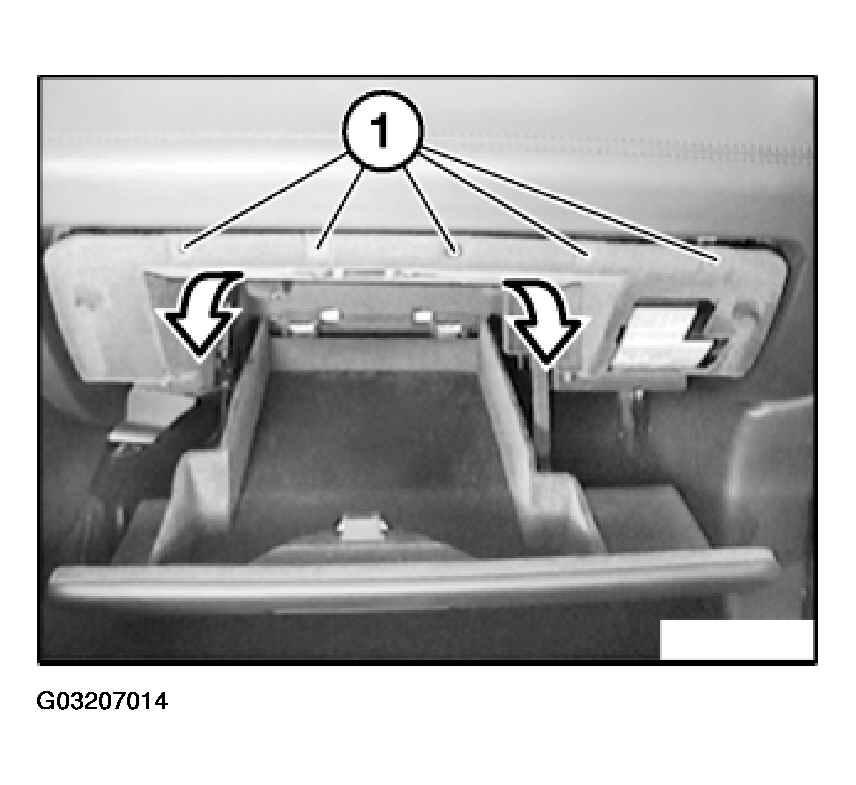

Release screws (1) and lower glovebox in direction of seat.

Fig 2: Lowering Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

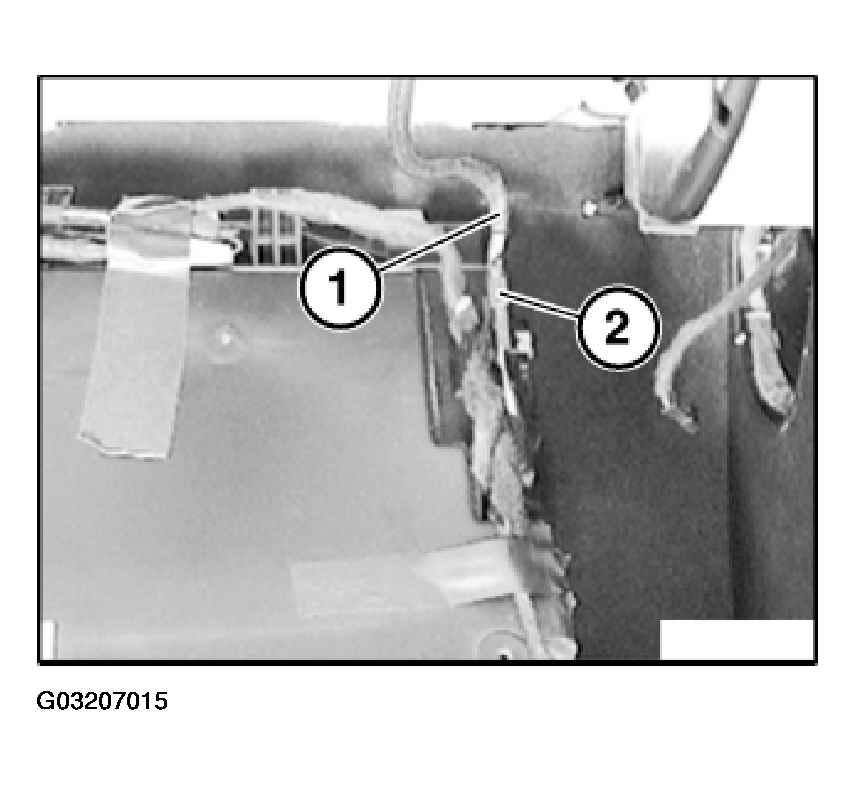

Unclip plug connection (1) from holder (2) and disconnect.

Fig 3: Unclipping Plug Connection From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
