51 21 200 Removing and installing/replacing outside handle and lock actuation of left or right front door

Remove outside handle on front door. Refer to 51 21 170 Removing and installing or replacing outside handle from left or right front door .

Remove door lock in front door. Refer to 51 21 090 Removing and installing/replacing door lock in left or right front door .

Release screws (1).

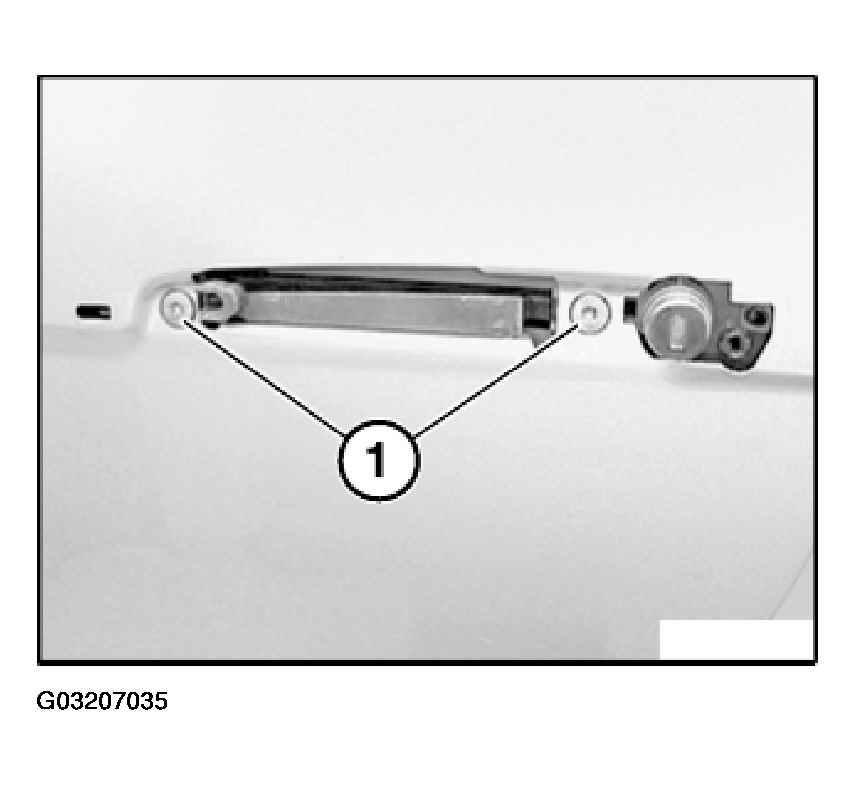

Fig 1: Releasing Screws
G03207035Courtesy of BMW OF NORTH AMERICA, INC.

Raise cover (1) and release screws (3).

2 Adhesive tapes

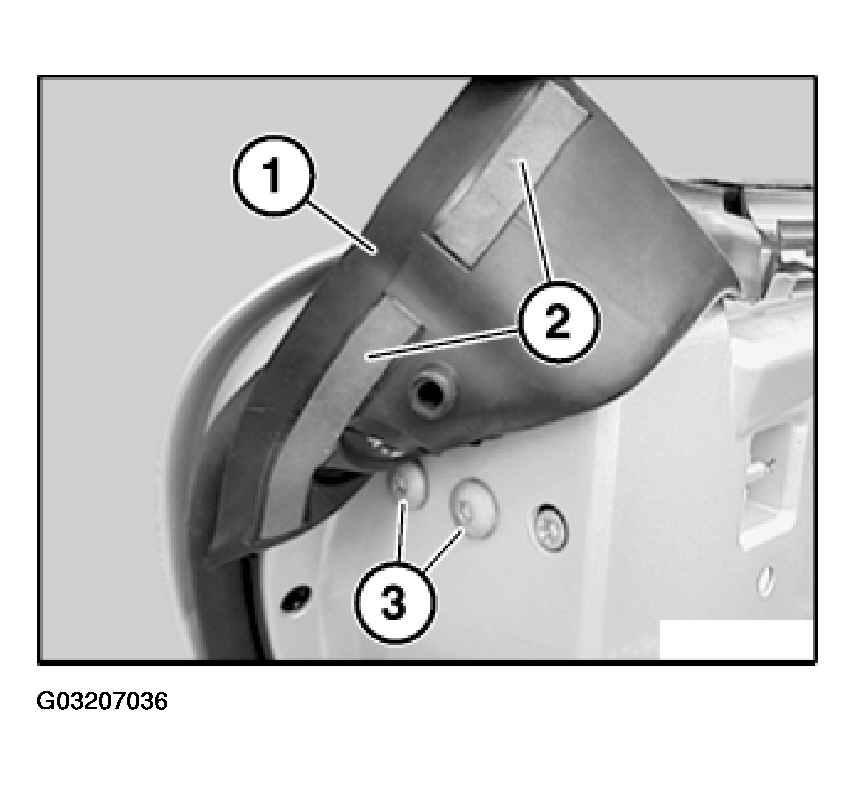

Fig 2: Raising Cover And Releasing Screws
G03207036Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove holder (2) and lock actuation (3).

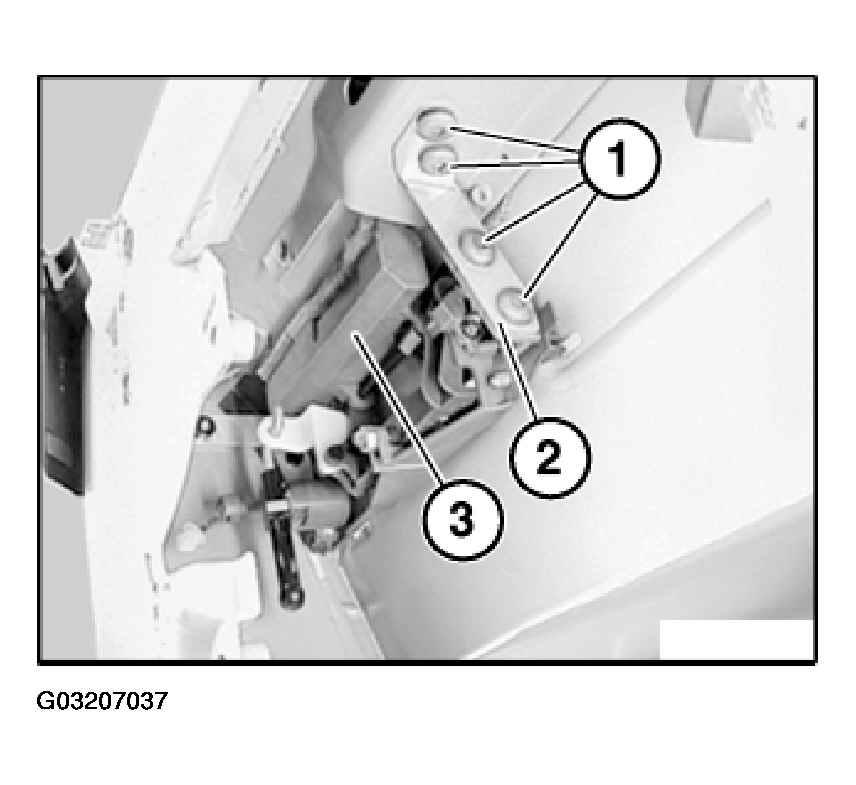

Fig 3: Removing Holder And Lock Actuation
G03207037Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Rubber grommet (2) on paddle (1) must not be damaged, replace if necessary.

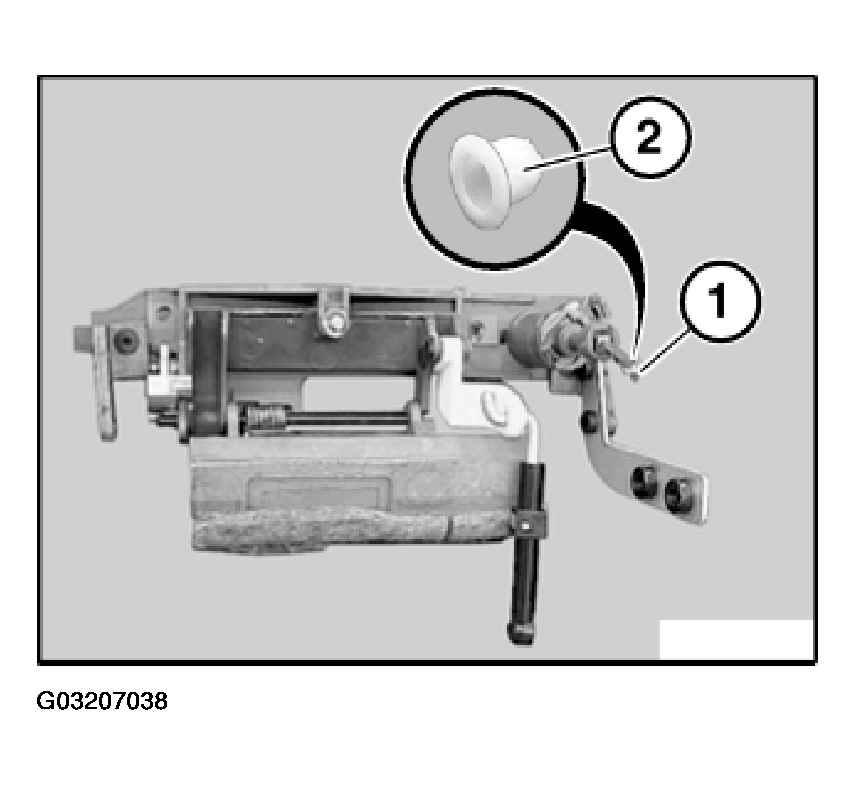

Fig 4: Installing Rubber Grommet On Paddle
G03207038Courtesy of BMW OF NORTH AMERICA, INC.
