51 21 170 Removing and installing or replacing outside handle from left or right front door

Special tools required:

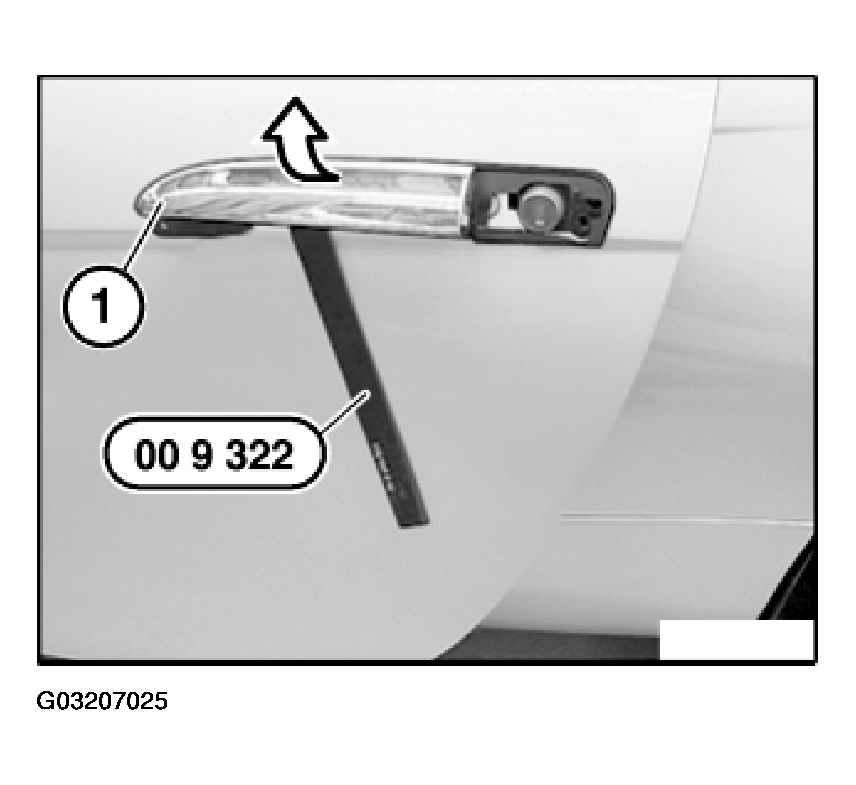

Lift outside handle (1) and secure with special tool 00 9 322 (plastic wedge).

Fig 1: Securing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

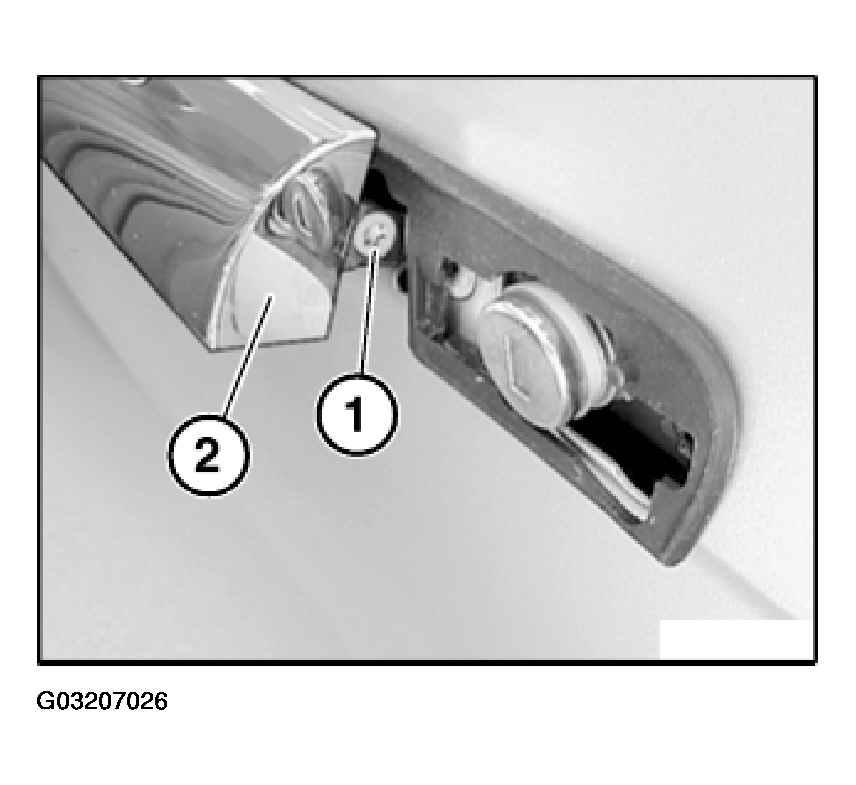

Release screw (1) on outside handle (2).

Fig 2: Releasing Screw On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

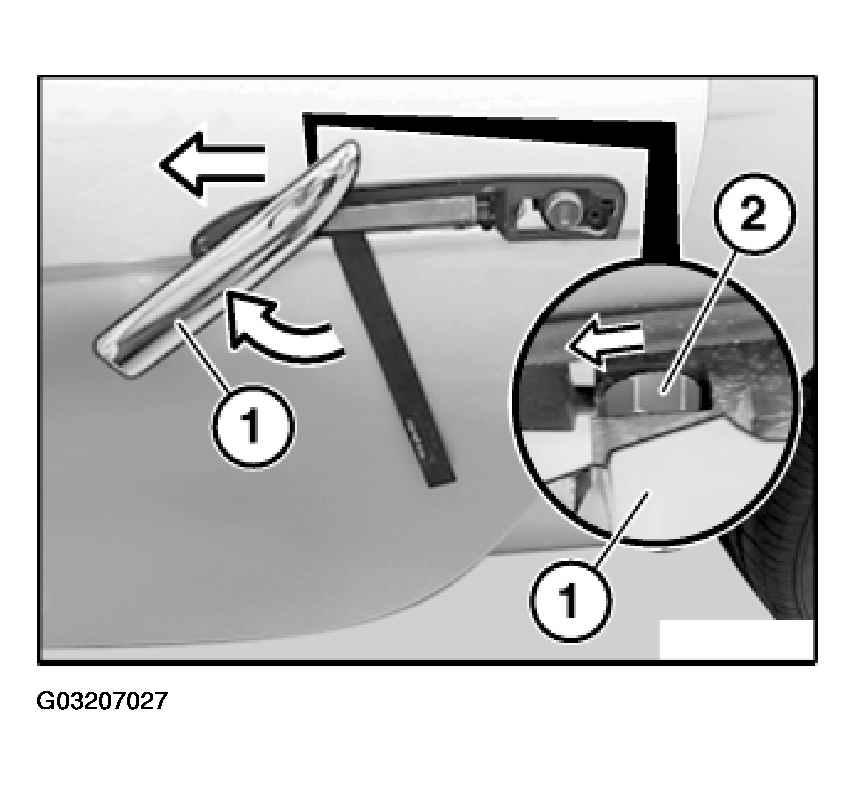

Lever out outside handle (1) and turn forwards until area (2) is at top. Remove outside handle (1) towards front in this position.

Fig 3: Removing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

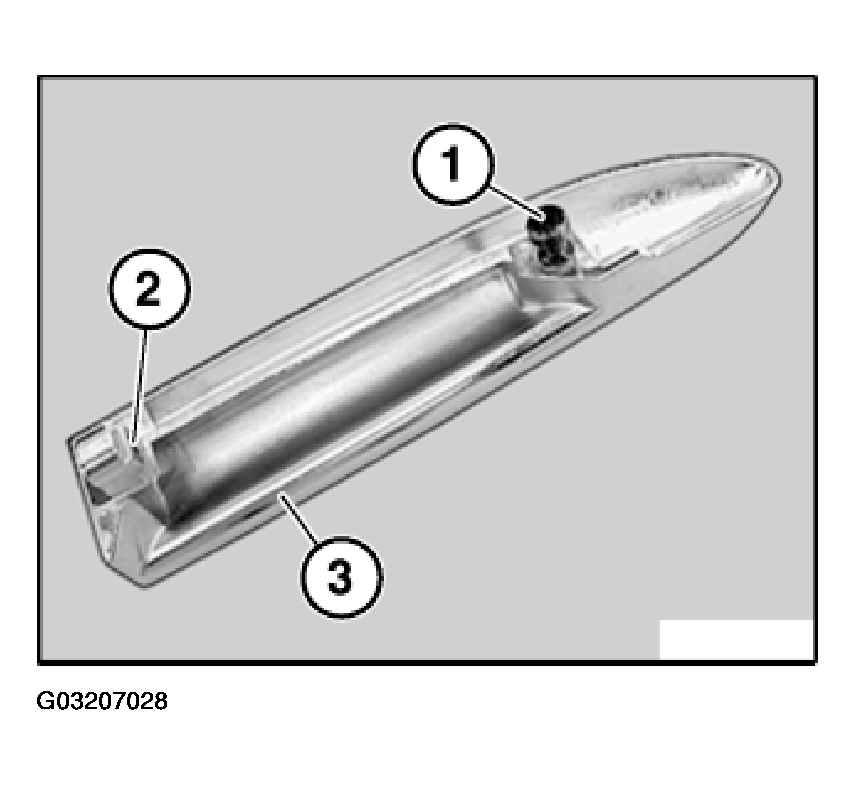

Journal (1) and thread (2) on outside handle (3) must not be damaged.

Fig 4: Identifying Journal And Thread On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

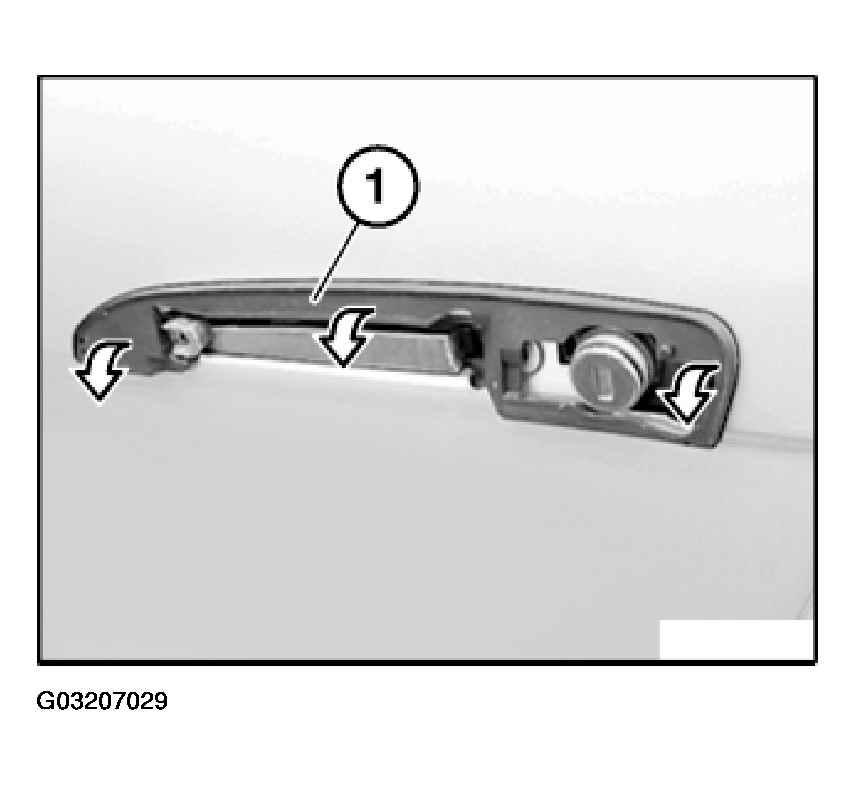

Lever out seal (1) at front/rear towards outside and remove towards bottom.

Fig 5: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

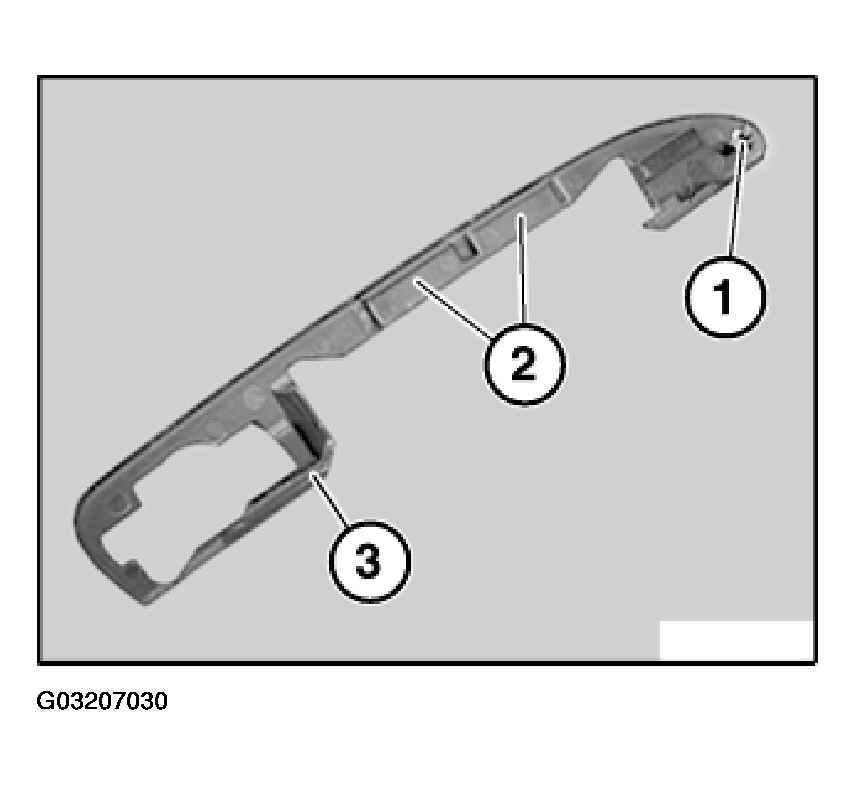

Mounts (1) and (2) of seal (3) must not be damaged.

Fig 6: Installing Mounts And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
