51 21 181 Removing and installing cover on outside handle with locking cylinder

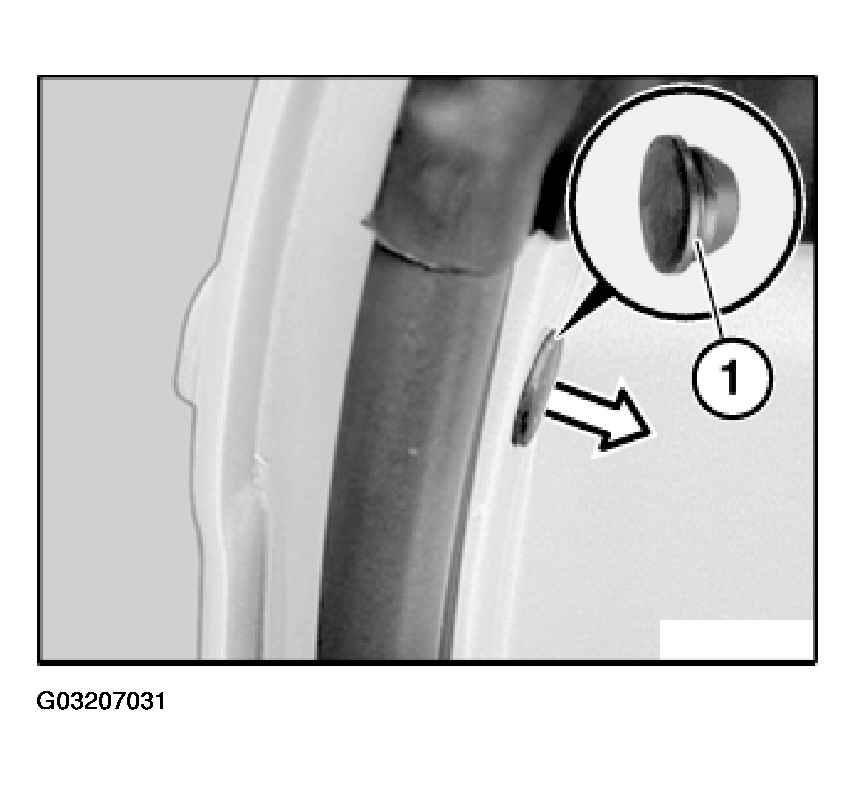

Lever out seal (1).

Fig 1: Removing Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seal (1) must not be damaged, replace if necessary.

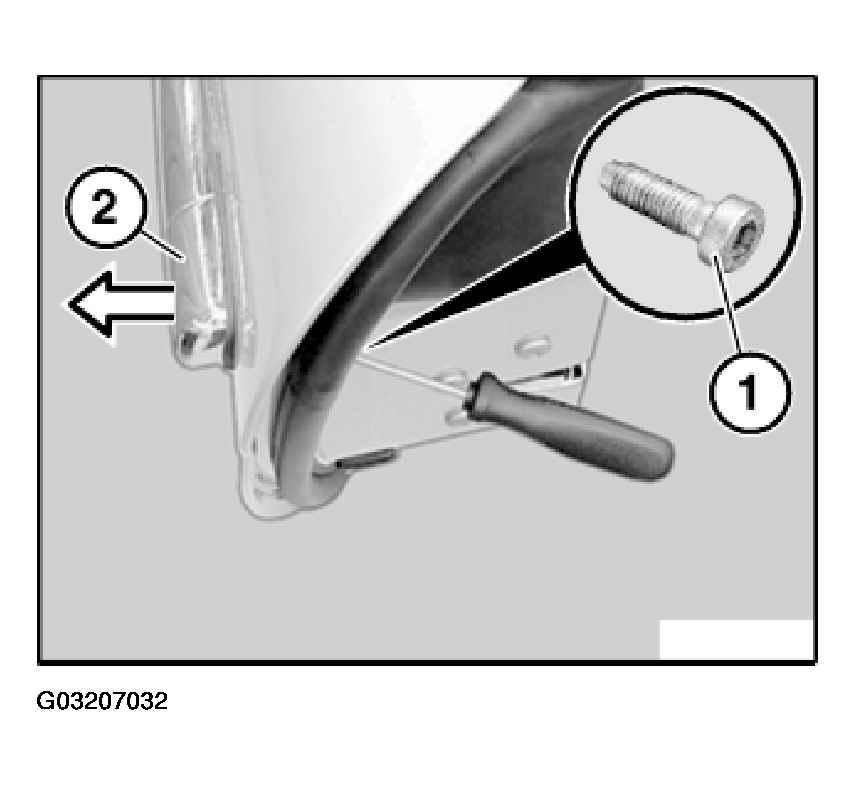

Unscrew bolt (1).

Detach cover (2).

Fig 2: Detaching Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

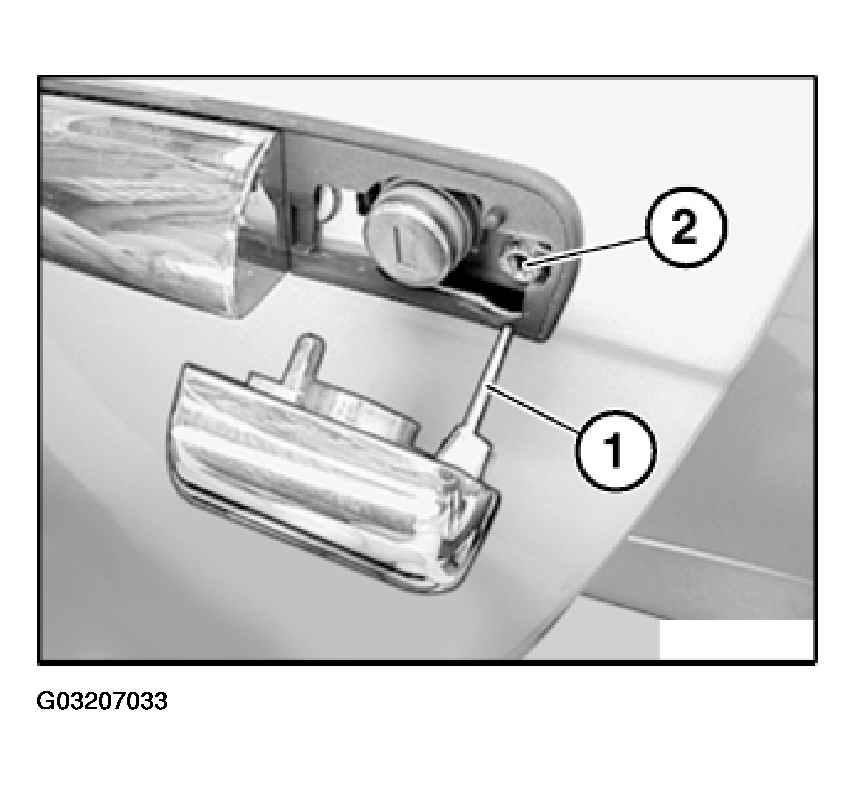

Insert guide (1) of cover into mount (2) on door lock.

Fig 3: Inserting Guide Of Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

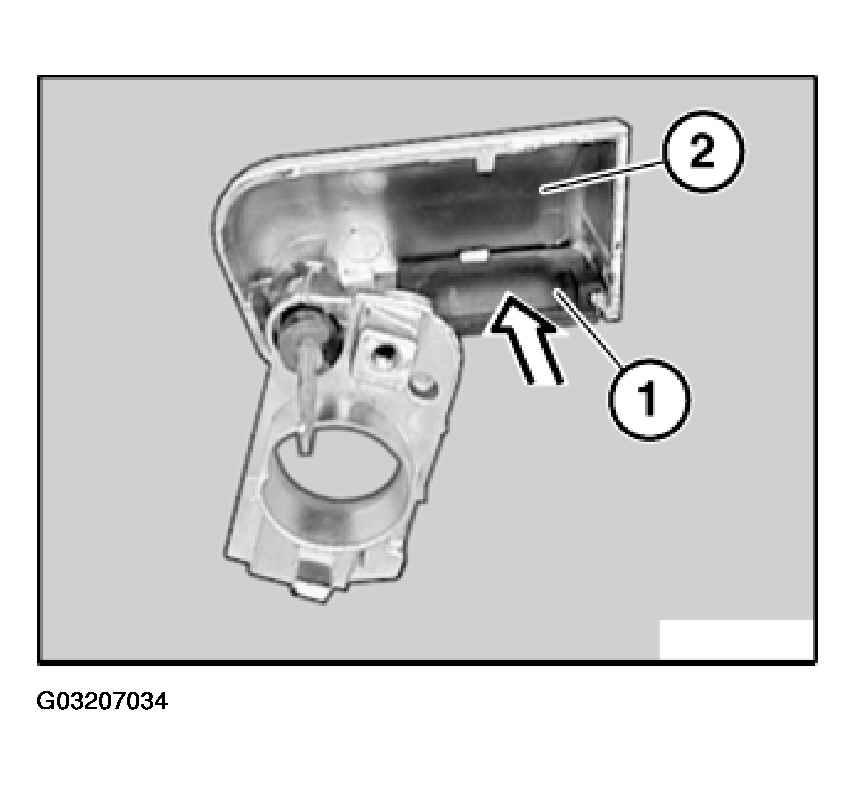

Push trim (1) into cover (2) as far as it will go.

Fig 4: Pushing Trim Into Cover

Courtesy of BMW OF NORTH AMERICA, INC.
