51 11 180 Removing and installing/replacing grille for bumper trim

Remove holder for license plate. Refer to 51 11 158 Replacing baseplate for license plate .

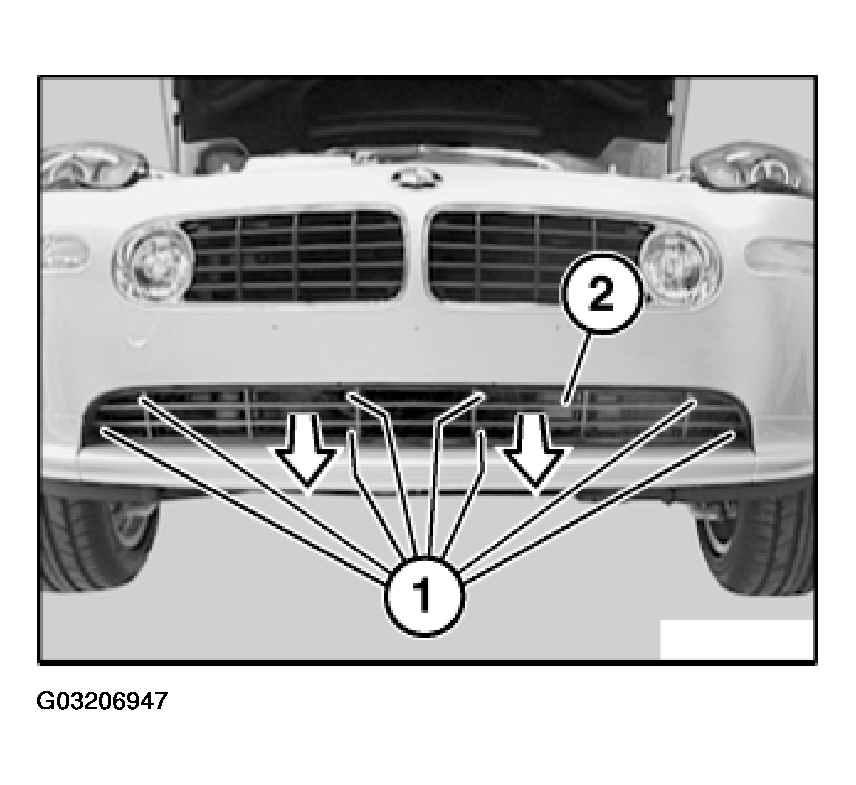

Release screws (1) and remove grill (2).

Fig 1: Removing Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

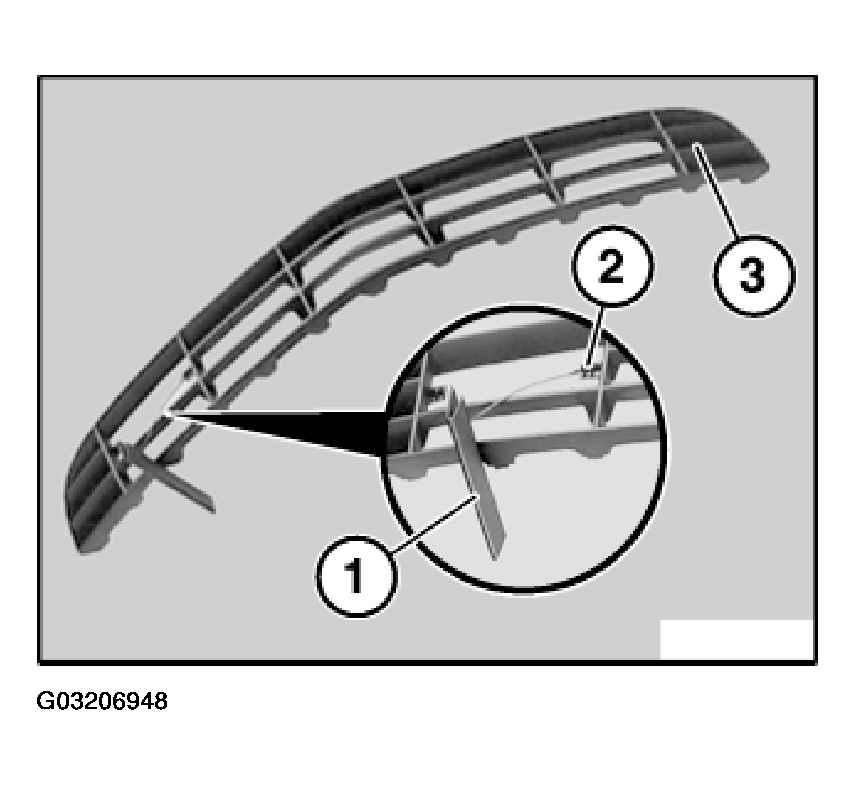

Unclip cover (1) for towing eye and feed retaining strap (2) out of grill (3).

Fig 2: Removing Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.
