51 11 158 Replacing baseplate for license plate

Unscrew and remove license plate.

Release screws (1).

Unhook hooks (2) on left/right and remove holder (3) for license plate.

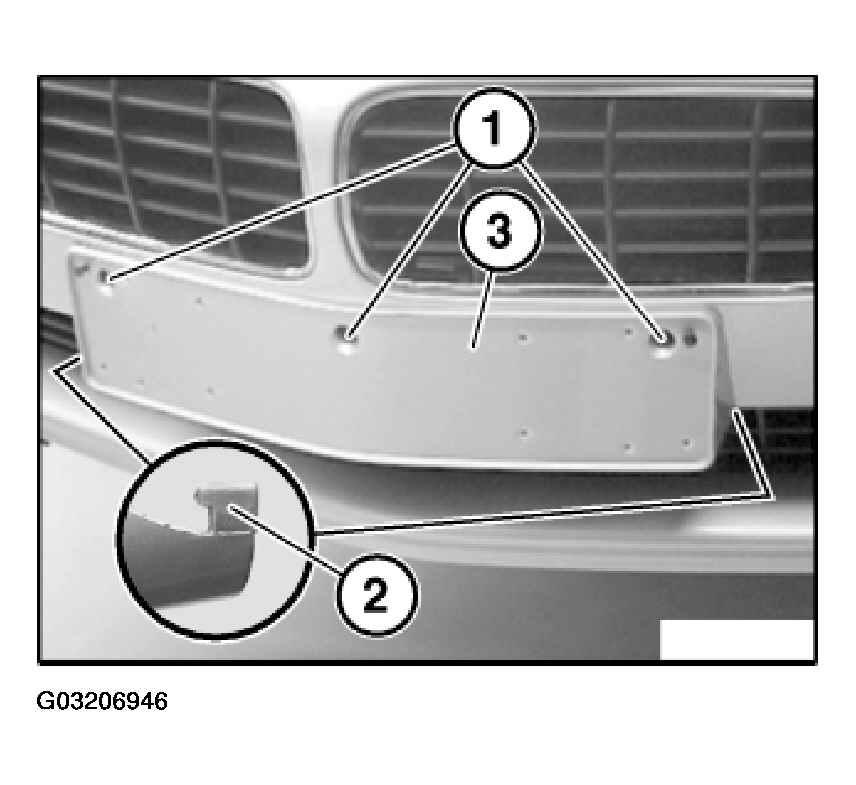

Fig 1: Removing Holder For License Plate
G03206946Courtesy of BMW OF NORTH AMERICA, INC.
