51 47 151 Removing and installing/replacing left (or right) trunk wheel arch trim (bottom)

Take out trunk floor trim panel. Refer to 51 47 101 Removing and installing/replacing luggage compartment floor trim panel .

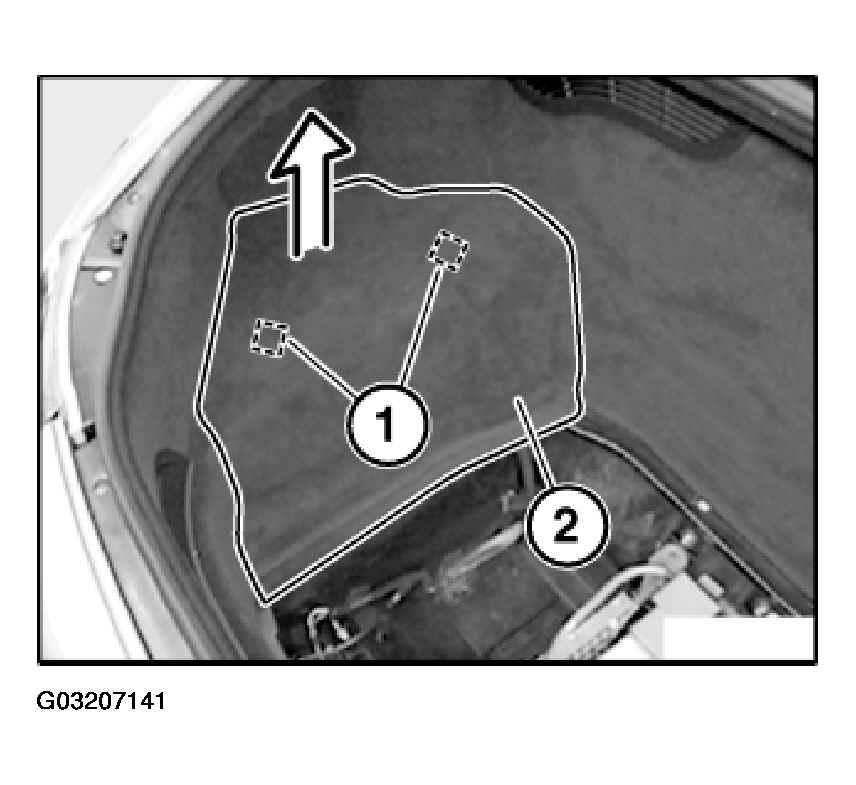

Unclip panel (1) with clips (2) upwards and remove.

Fig 1: Unclipping Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

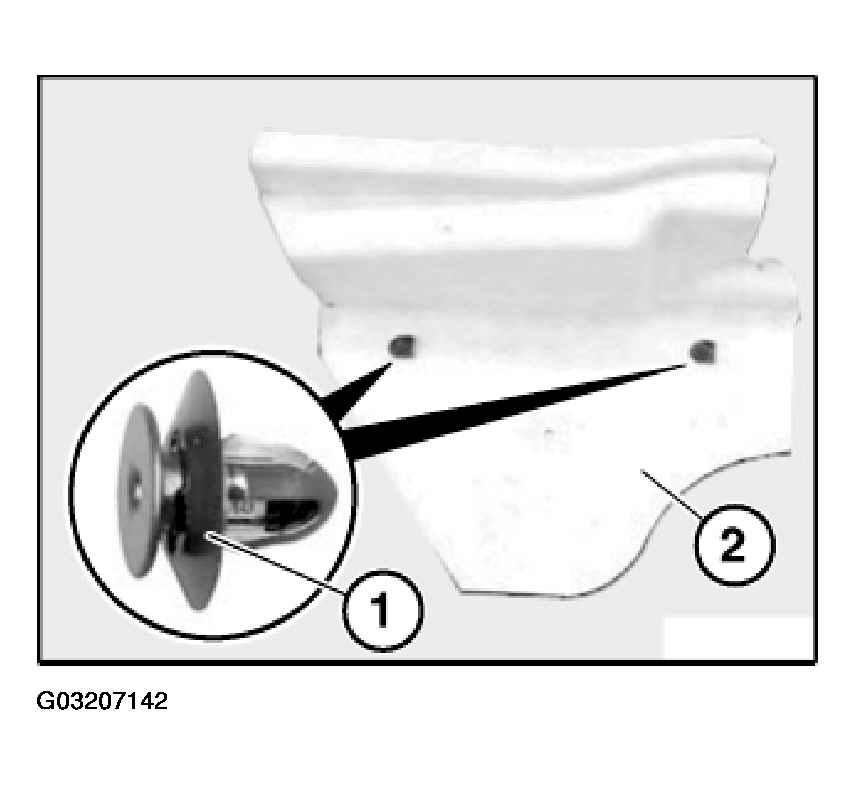

If necessary, replace faulty clips (1) on panel (2).

Fig 2: Identifying Faulty Clip

Courtesy of BMW OF NORTH AMERICA, INC.
